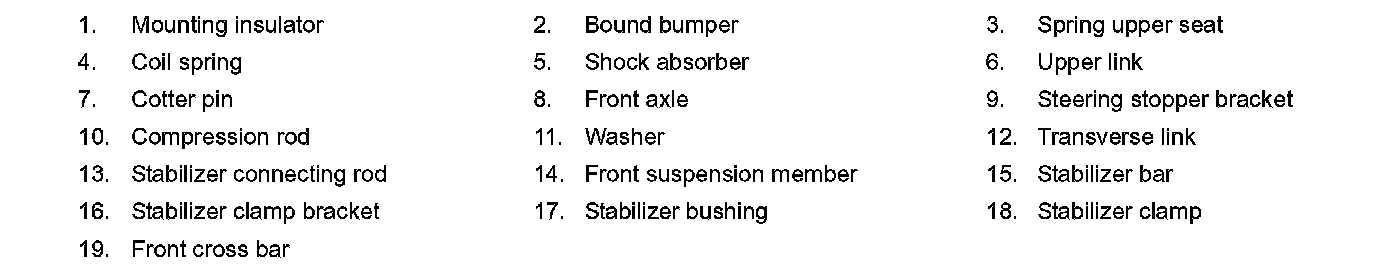

Front Suspension

1 of 2:

2 of 2:

Removal and Installation

REMOVAL
1. Remove tire with power tool.
2. Remove brake caliper with power tool. Hang it in a place where it will not interfere with work.
3. Remove disc rotor.
4. Remove front air spoiler.
5. Remove under cover with power tool.
6. Remove fixing bolts and nuts, then remove front cross bar from vehicle with power tool.
7. Remove steering hydraulic piping bracket from front suspension member.
8. Remove steering gear and front suspension member attachment bolts and hang steering gear on vehicle.
9. Set jack under engine.

CAUTION: When setting jack to the engine, use a wooden block or an equivalent for the setting.

10. Remove fixing bolt and nut between shock absorber and transverse link with power tool.
11. Remove cotter pin of upper link ball joint, and then loosen nut.
12. Use a ball joint remover (suitable tool) to remove upper link from steering knuckle. Be careful not to damage ball joint boot.

CAUTION: To prevent damage to threads and to prevent ball joint remover (suitable tool) from coming off, and temporarily tighten lock nuts.

13. Remove fixing nut and washer located at the bottom of stabilizer connecting rod, and then remove stabilizer connecting rod from transverse link with power tool.
14. Remove fixing nuts between engine mounting insulator and front suspension member.
15. Remove fixing nuts between front suspension member and body with power tool.
16. Remove front suspension assembly from vehicle.

INSTALLATION
^ Install in the reverse order of removal.

CAUTION: Refer to component parts location and do not reuse non-reusable parts.

^ Perform final tightening of shock absorber lower side (rubber bushing) under unladen condition with tires on level ground. Check wheel alignment.
