With Manufacturer's Scan Tool (CONSULT-II)

CONSULT-II OPERATION







1. With the ignition switch OFF connect CONSULT-II and CONSULT-II CONVERTER to the data link connector then turn ignition switch ON.

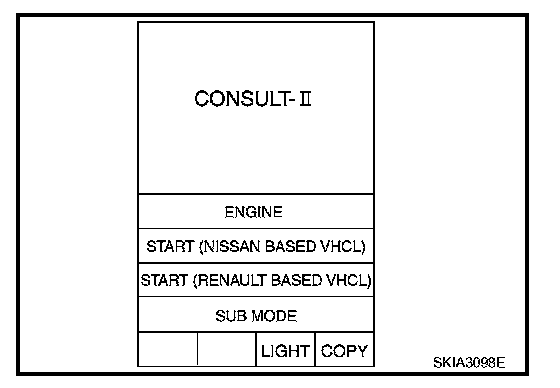

2. Touch "START (NISSAN BASED VHCL)".

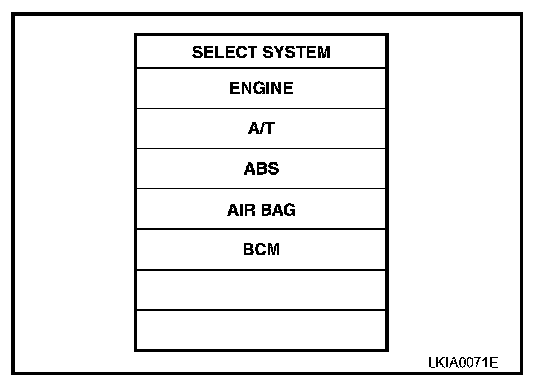

3. Touch "BCM" on "SELECT SYSTEM" screen.
If BCM" is not indicated, go to CONSULT-II Checking System, "CONSULT-II Data Link Connector (DLC) Circuit".







4. Touch "WIPER".
