Symptom Related Diagnostic Procedures

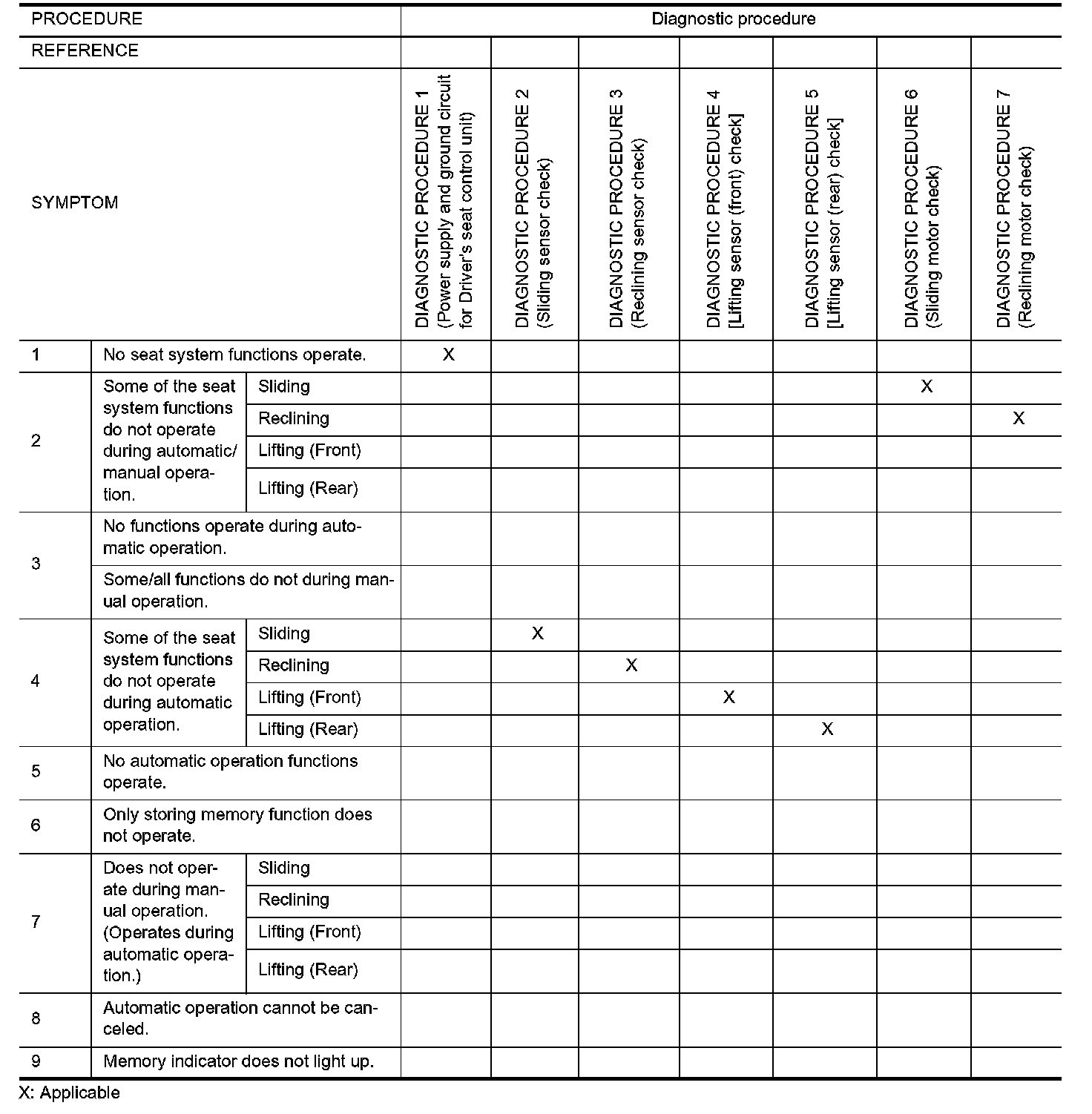

Symptom Chart:

SYMPTOM CHART
- When starting each diagnostic procedure, first check corresponding harness connection.
- Replace driver seat control unit when automatic drive positioner system does not operate properly even if corresponding diagnostic procedure (except the procedure 6, 7, 8 and 9) is done.
