Removal and Installation For Audio Unit

Removal and Installation of Audio Unit
1. Perform damper lock operation.
2. Remove cluster lid C. Refer to "Instrument Panel Assembly".




3. Unlock FPC (Flexible Print Circuit) connector lock on A/C and audio controller side.
4. Pull off flexible printed circuit from connector.

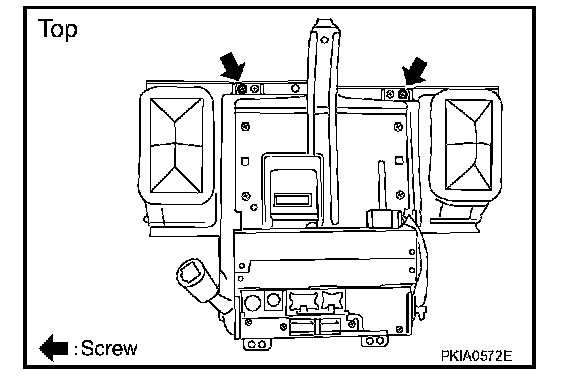

5. Remove screws (top: 2).

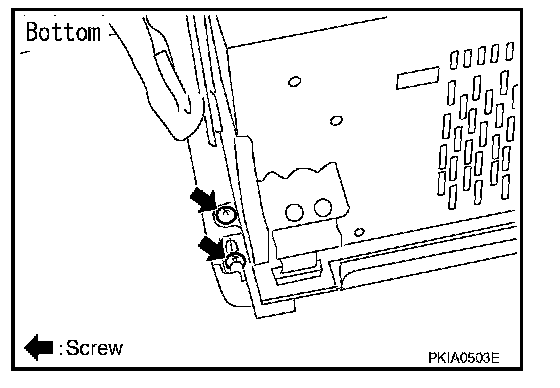

6. Remove screws (bottom: 4). Remove audio unit and display unit assembly (with navigation system) from cluster lid C.




7. Separate audio unit from display unit assembly (with navigation system).

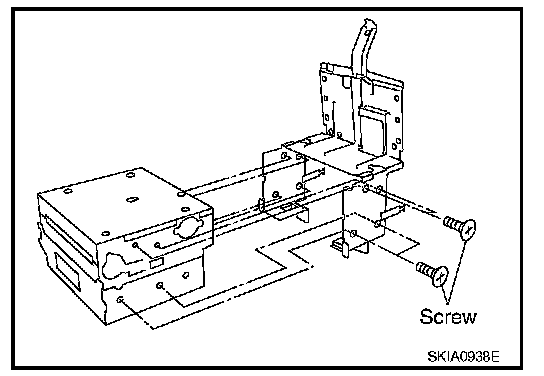

8. Remove 8 screws, and then bracket.

CAUTION:
- When carrying audio unit body, do not touch internal mechanism access from cassette tape slot.
- Be careful not to allow foreign material to enter from cassette tape slot.
- Removal and Installation of A/C and Audio Controller.
