Disassembly and Assembly

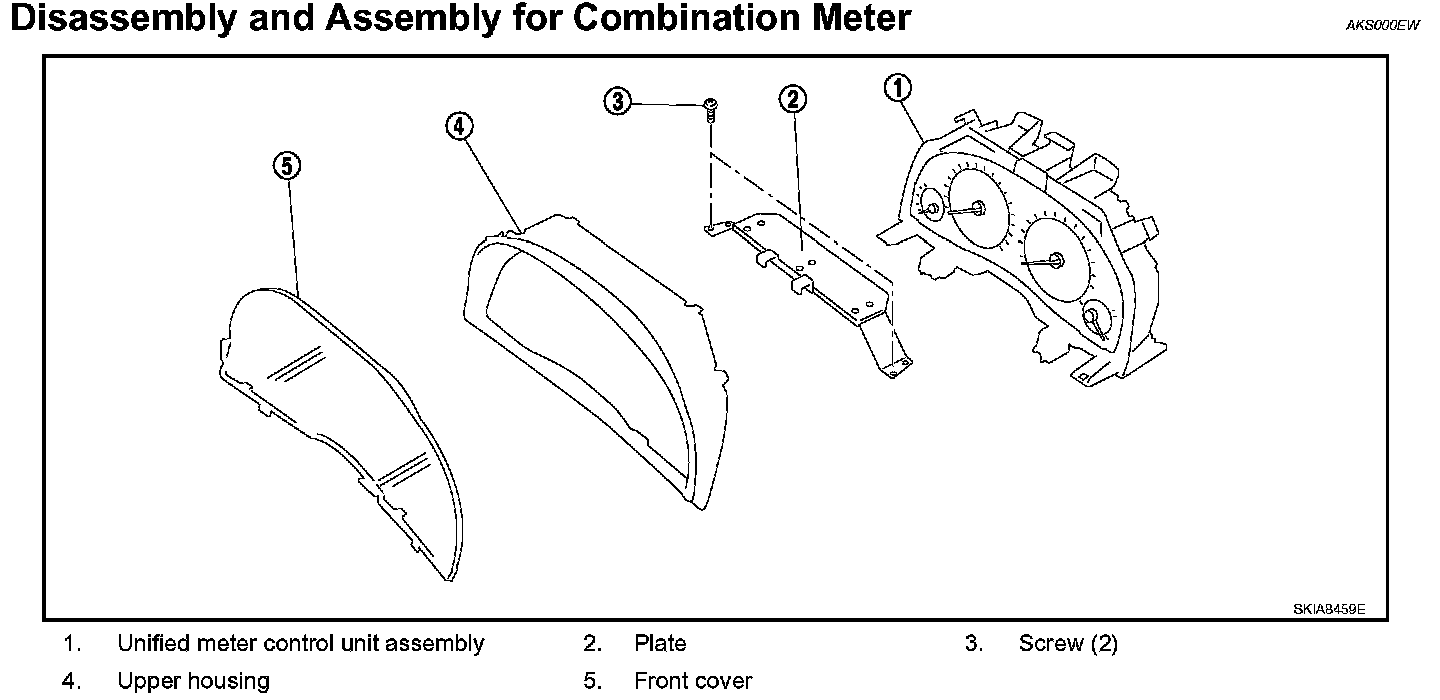

Disassembly and Assembly for Combination Meter

DISASSEMBLY
1. Disengaged the tabs (8) to separate front cover.
2. Remove screw (2) and remove plate.
3. Disengaged the tabs (8) to separate upper housing.
4. Remove bulbs.

ASSEMBLY
Assembly in the reverse order of disassembly.
