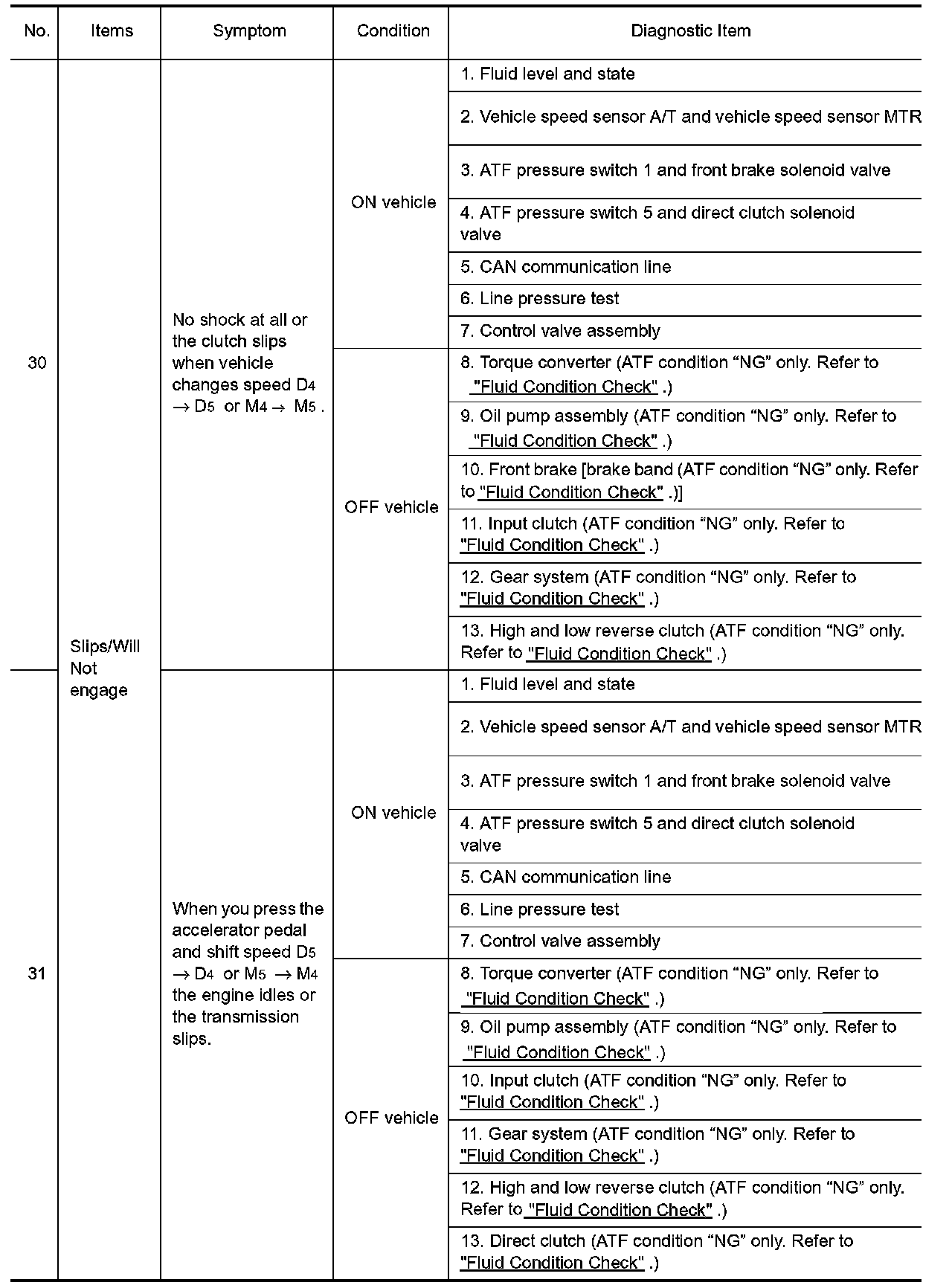

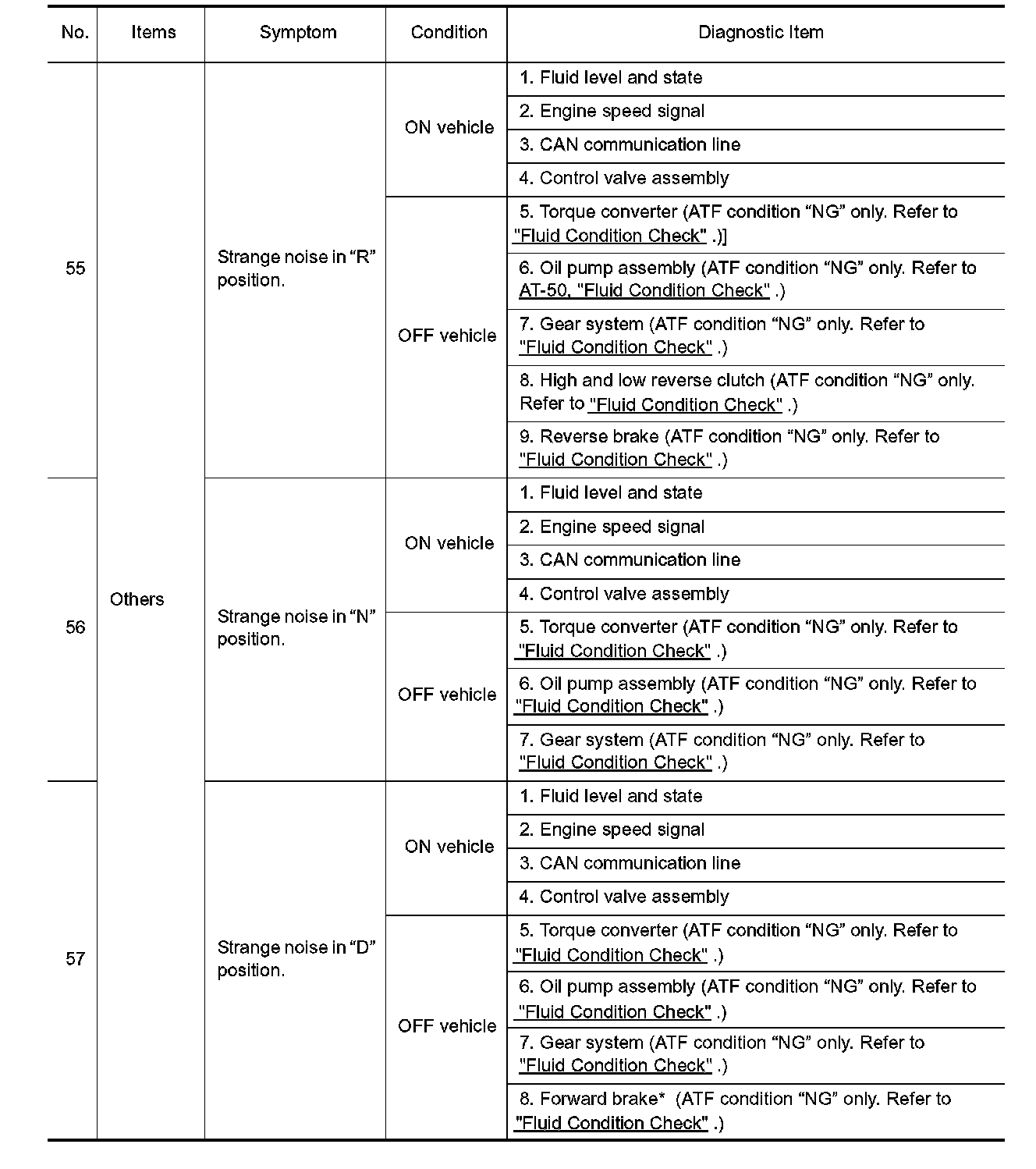

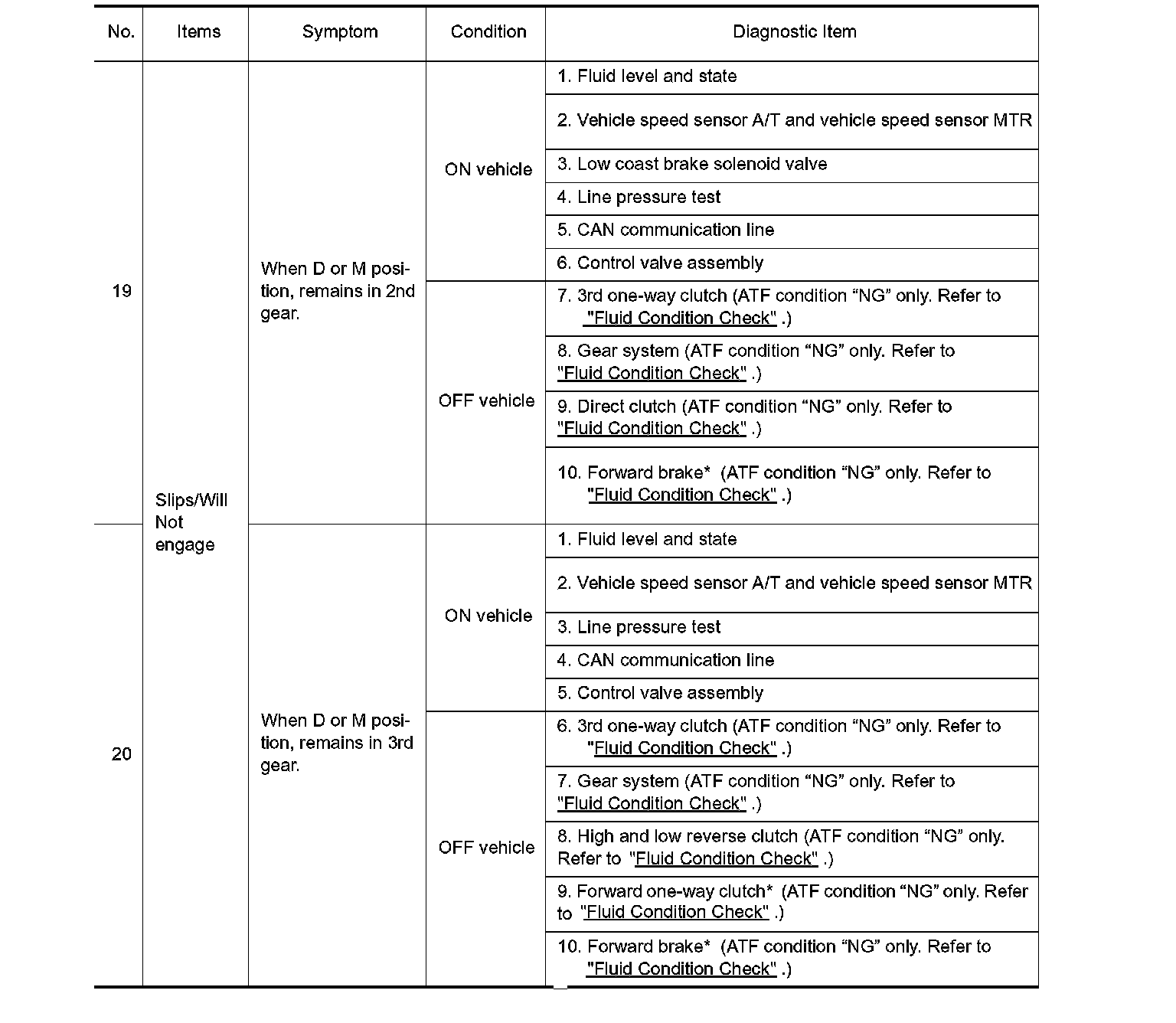

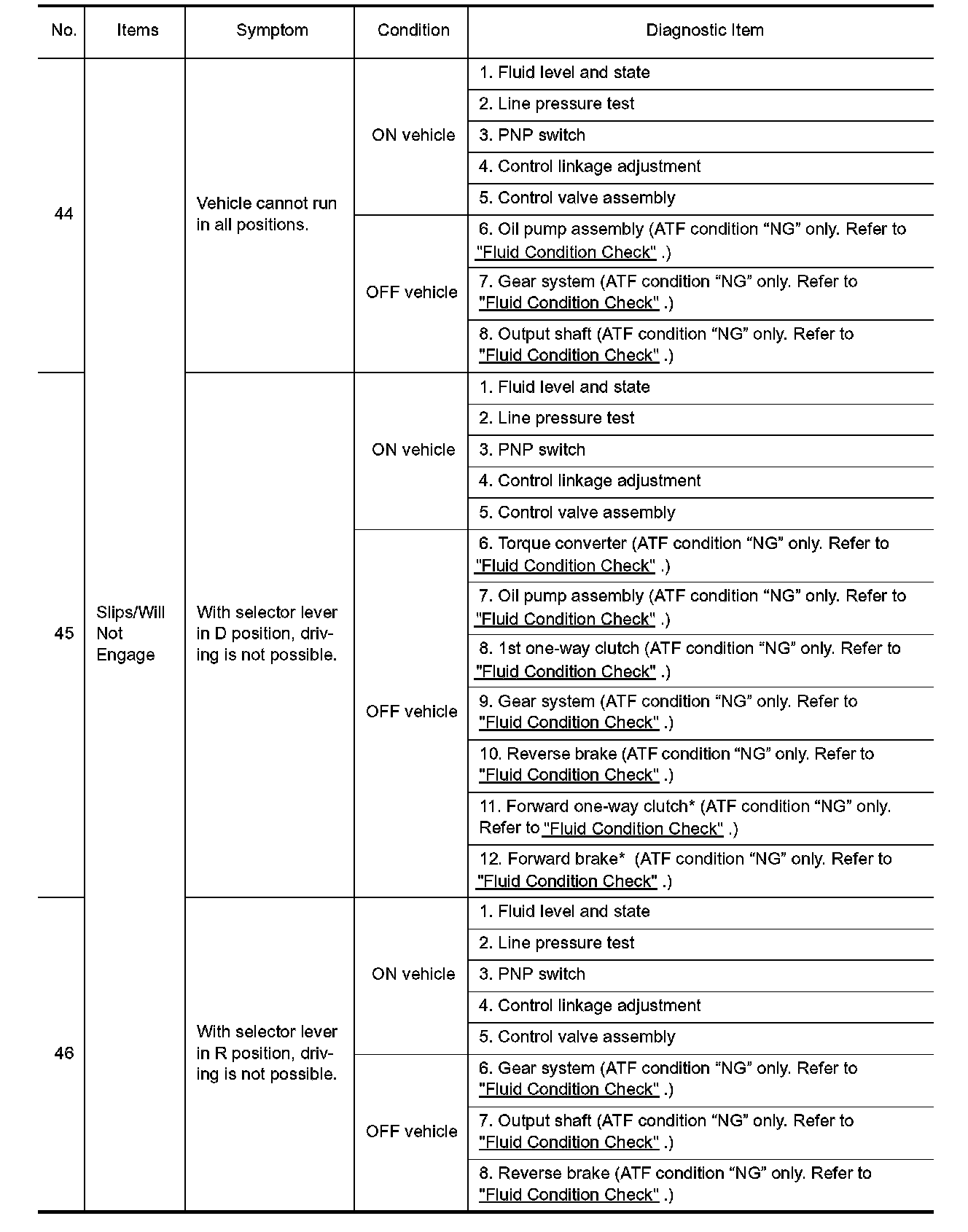

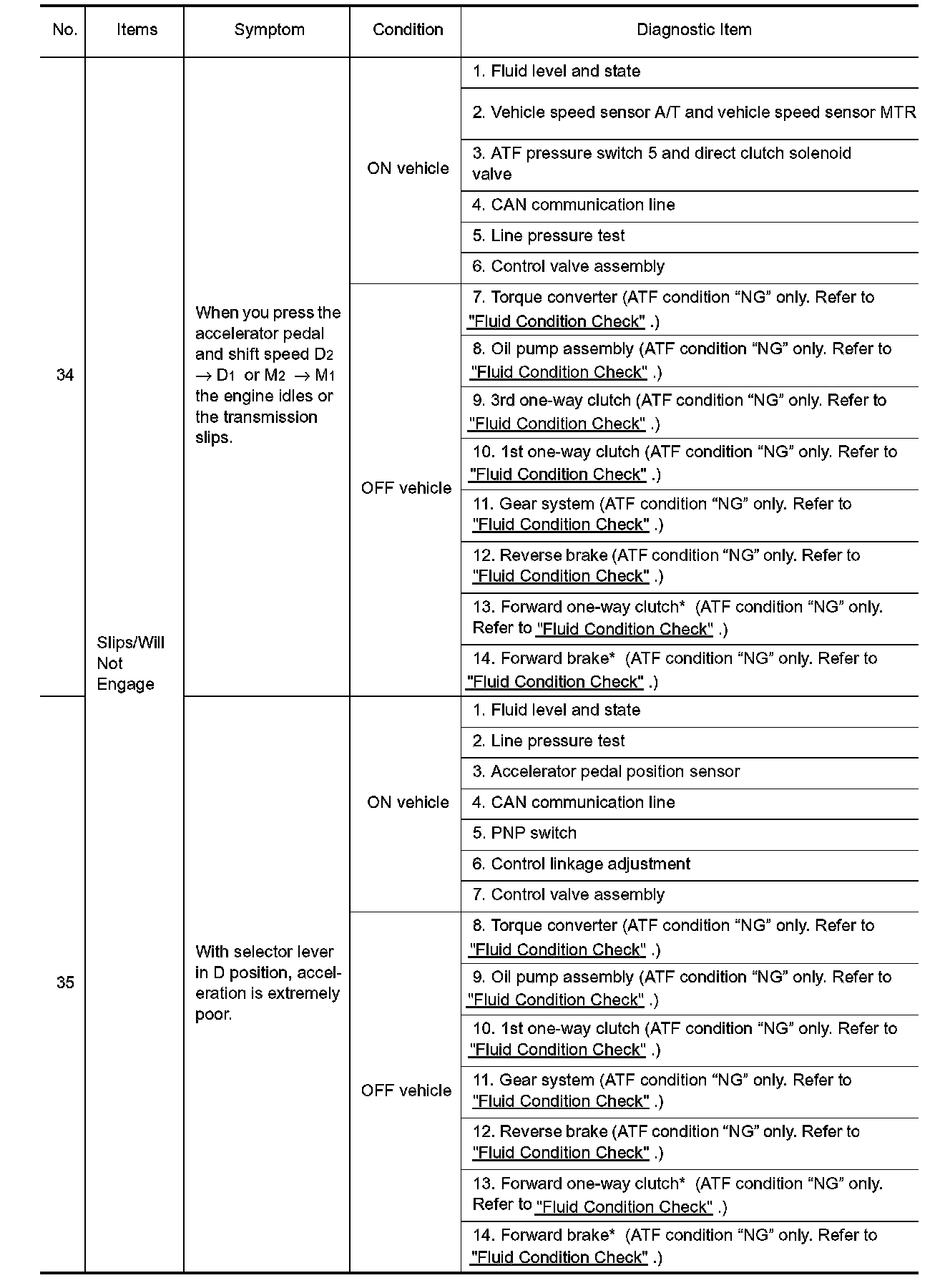

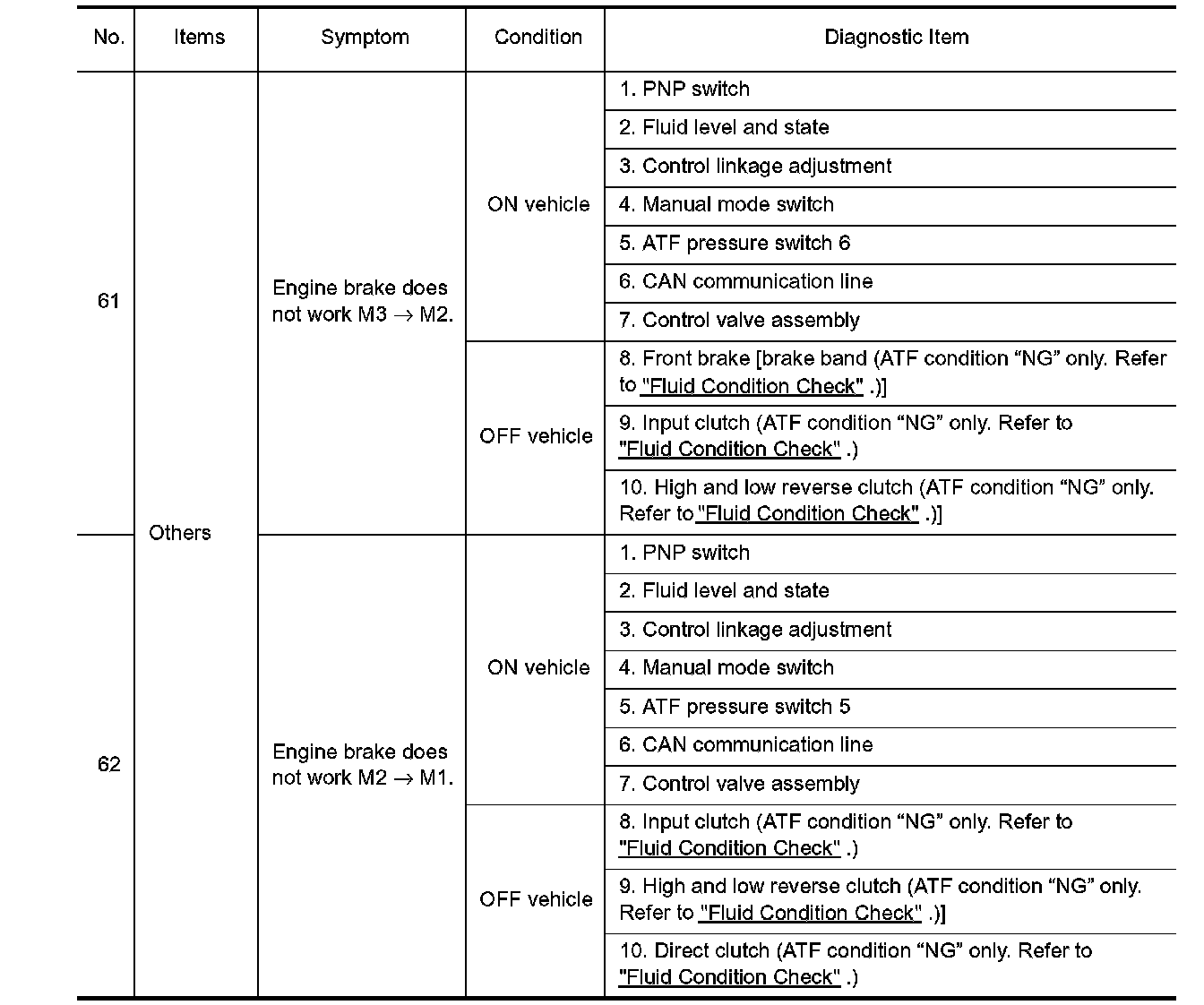

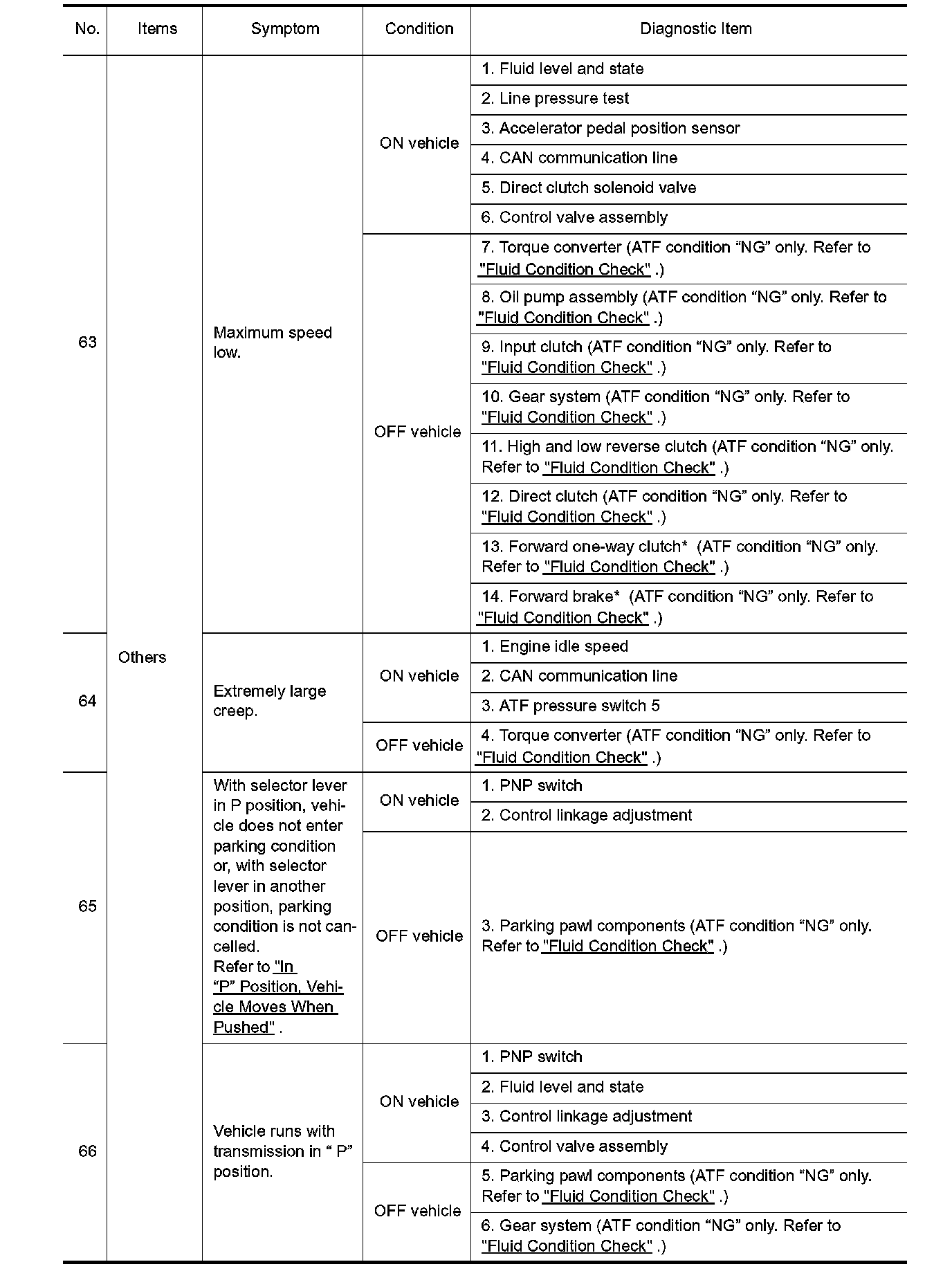

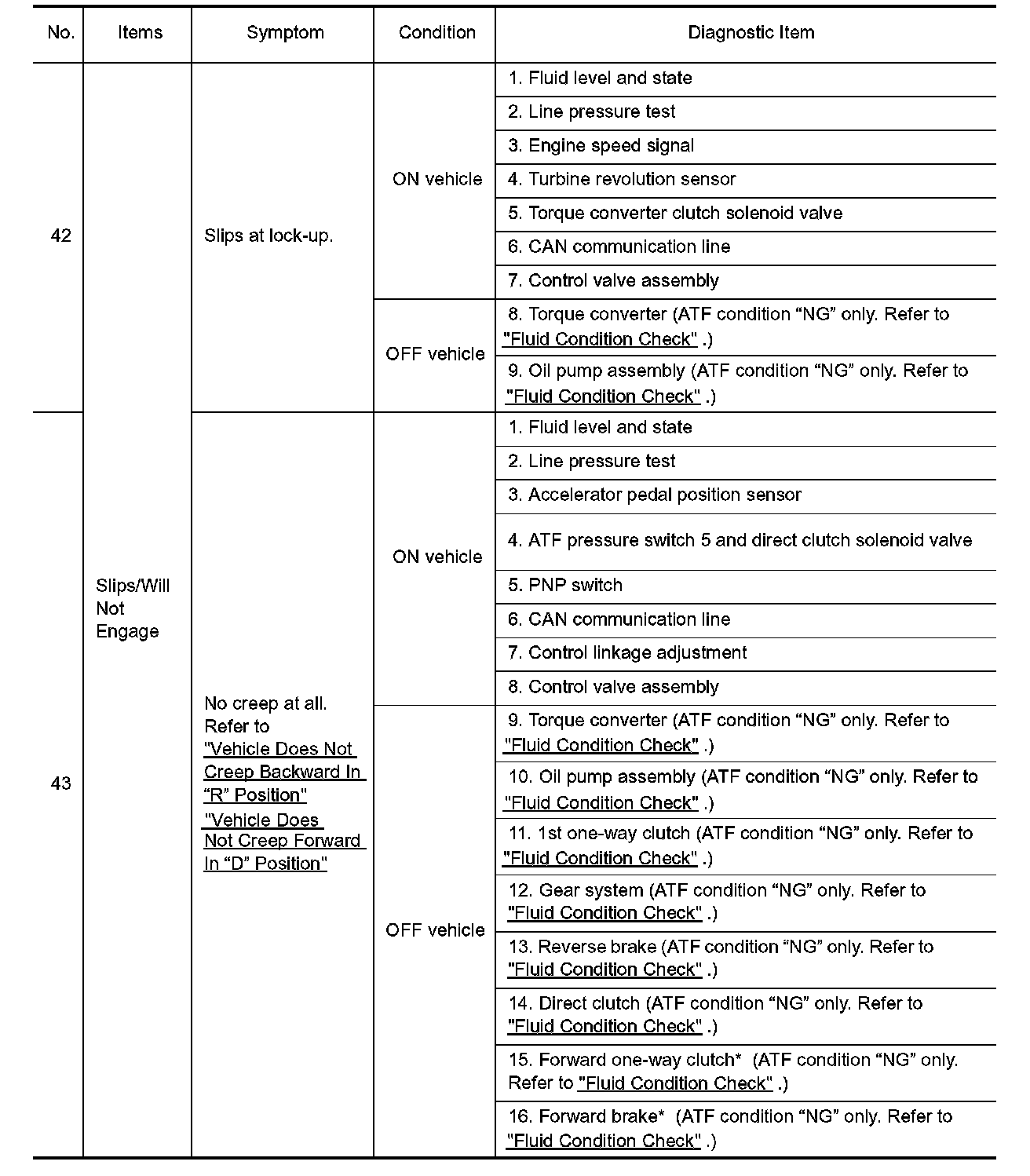

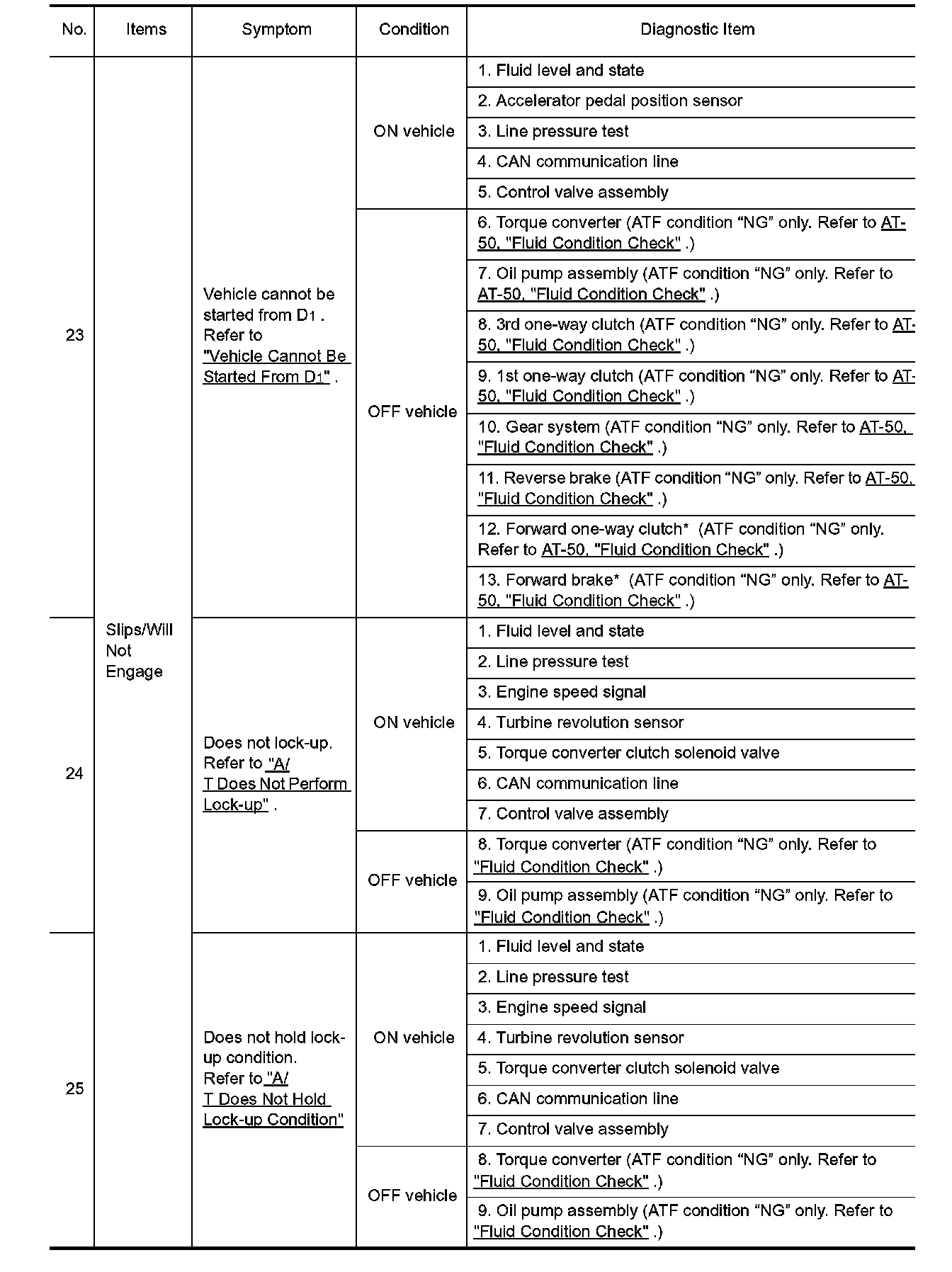

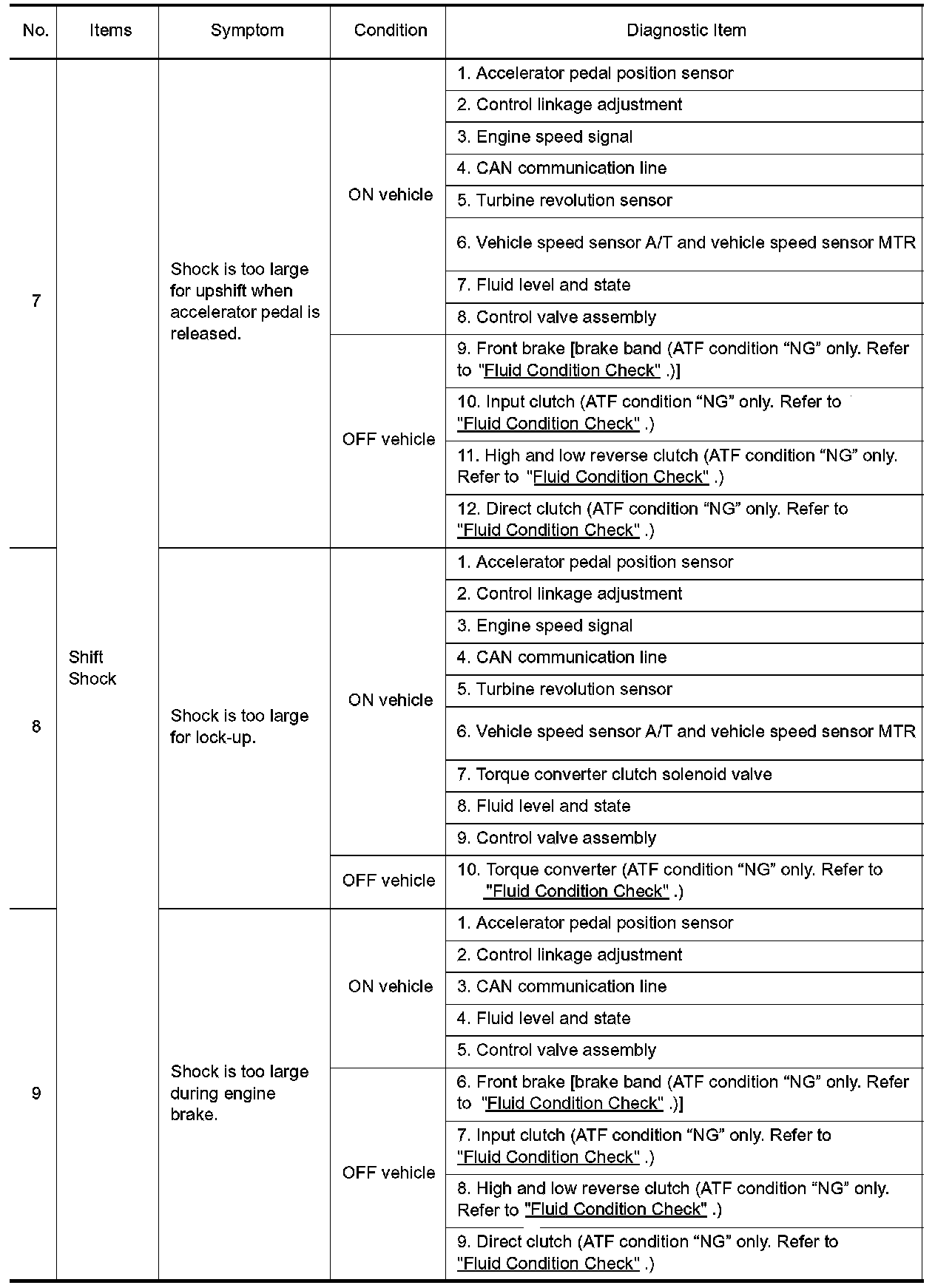

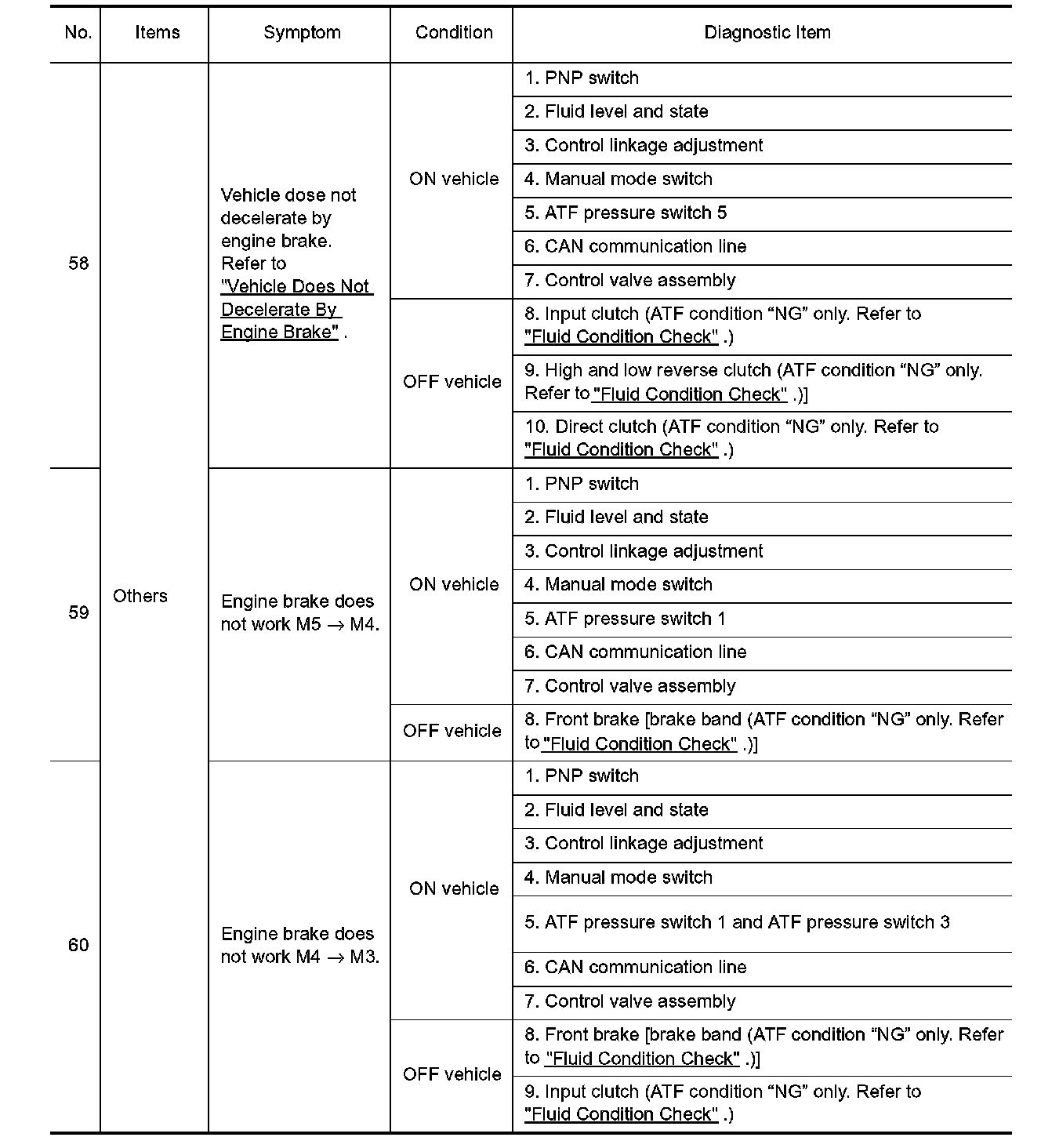

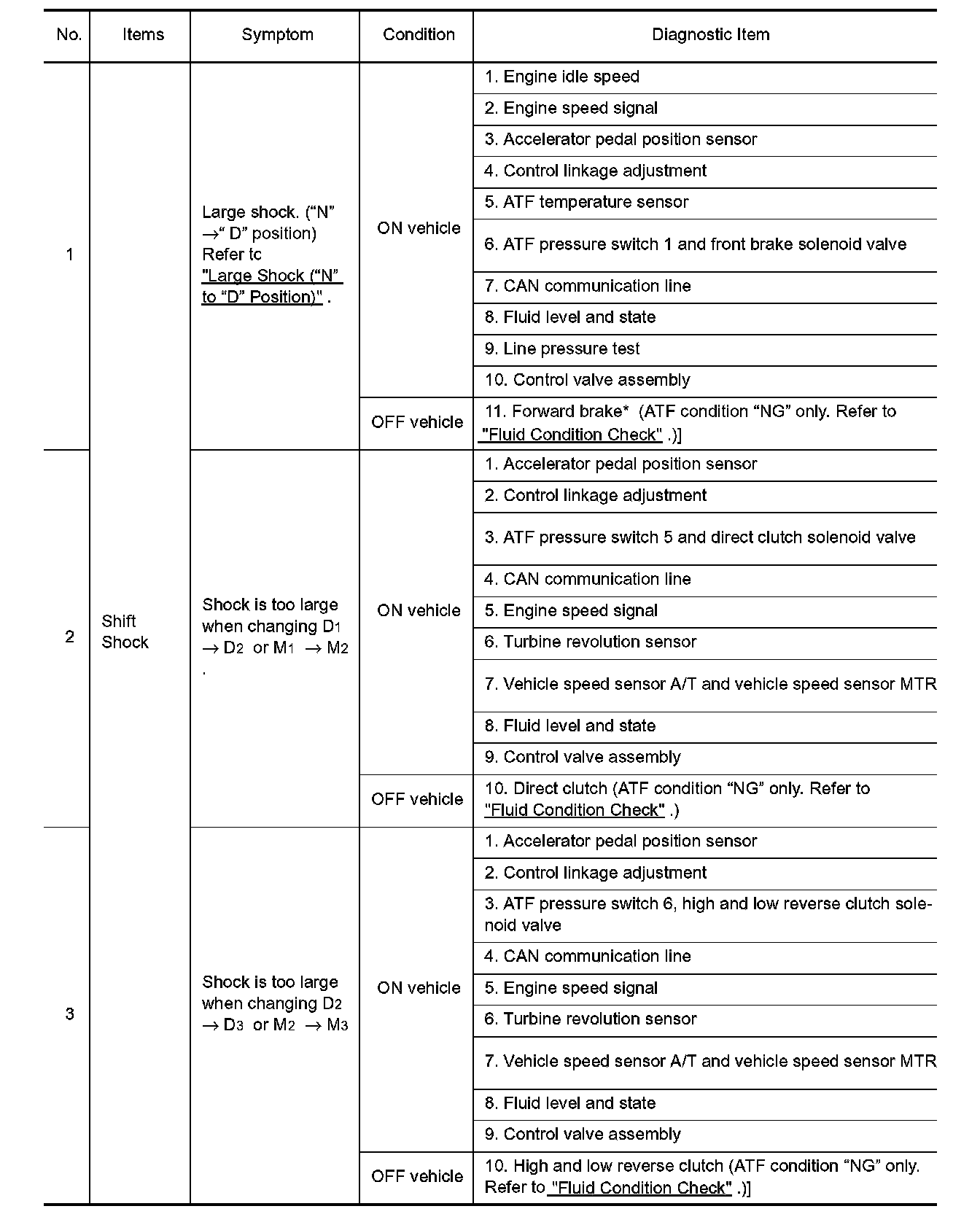

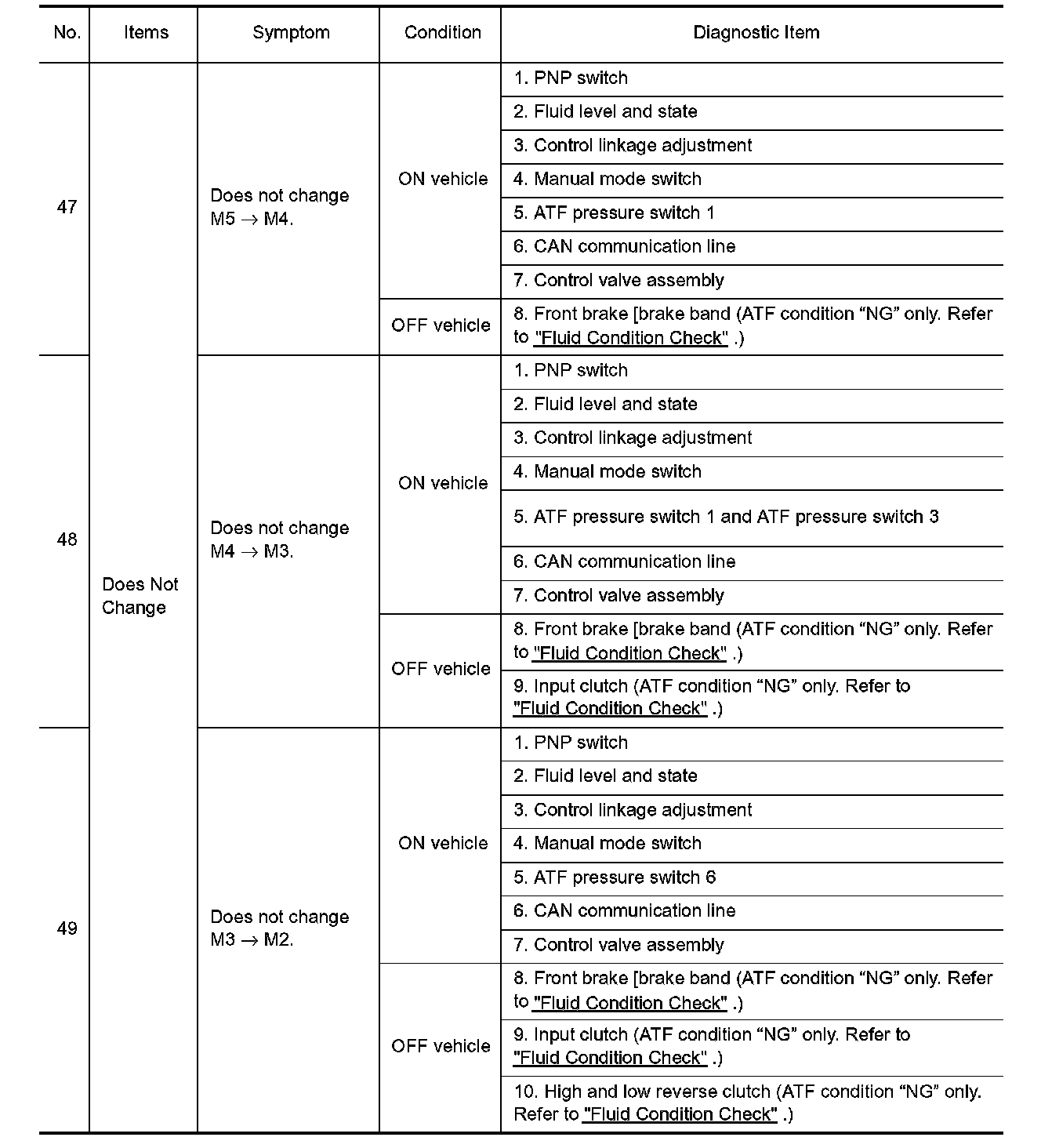

Symptom Chart
Symptom Chart
Symptom Chart
The diagnostics item numbers show the sequence for inspection. Inspect in order from Item 1.
