System Specifications

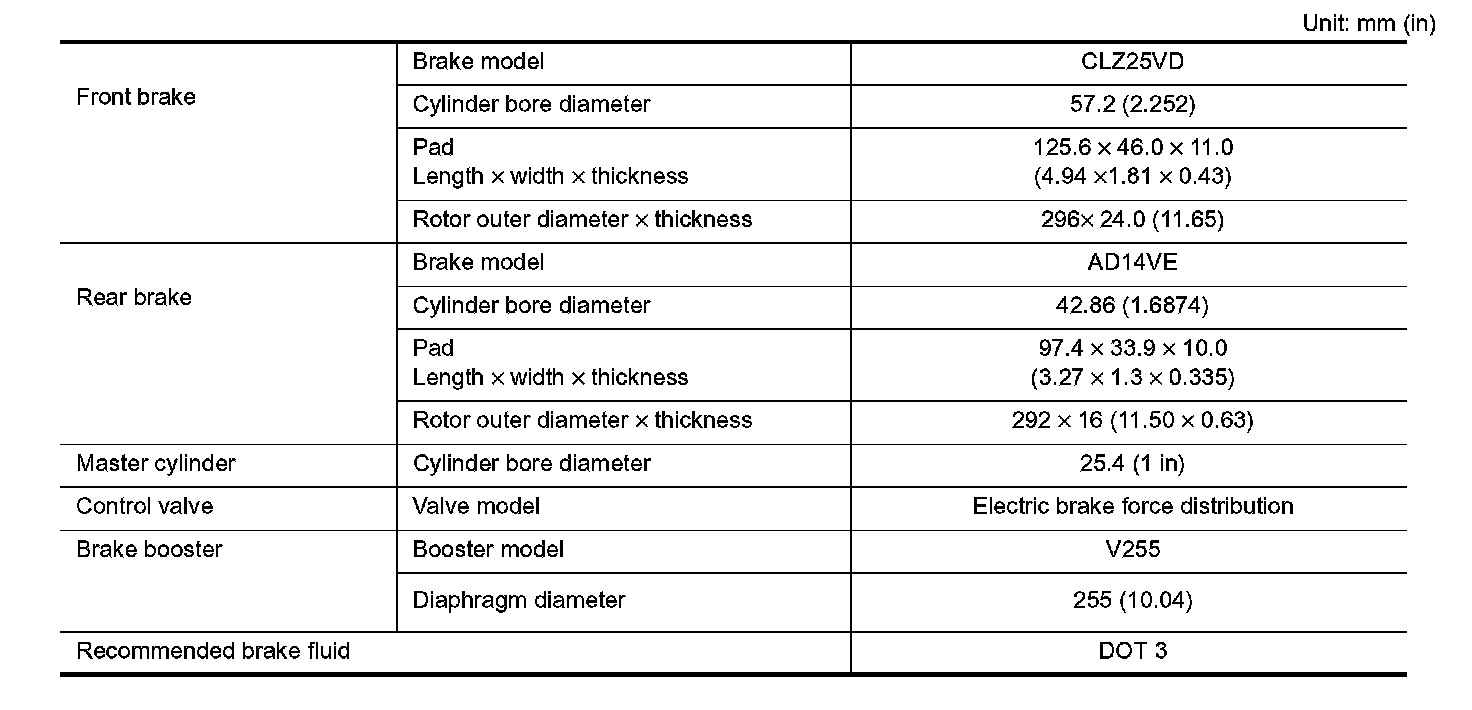

General Specifications:





General Specifications

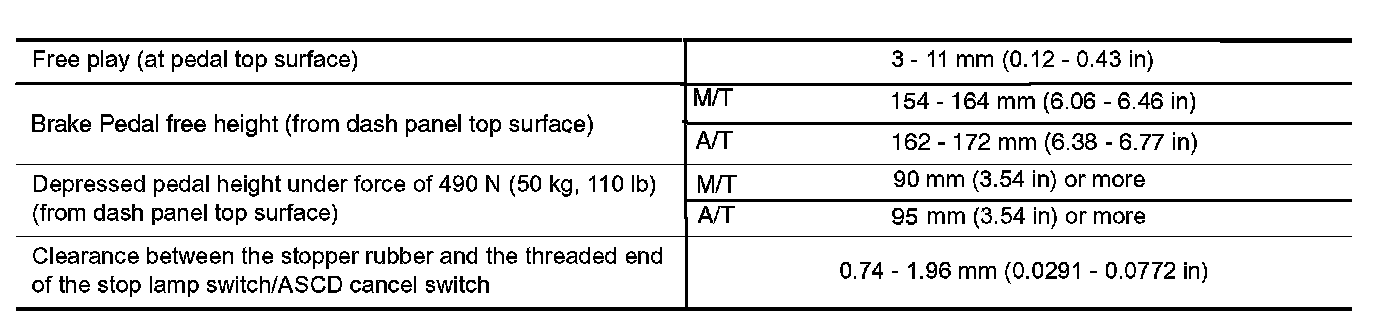

Brake Pedal:





Brake Pedal

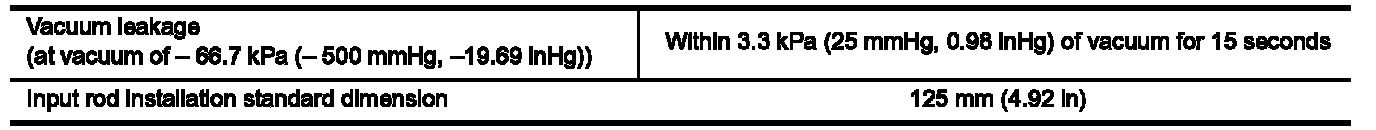

Check Valve:





Check Valve

Brake Booster

Vacuum Type:





Vacuum type

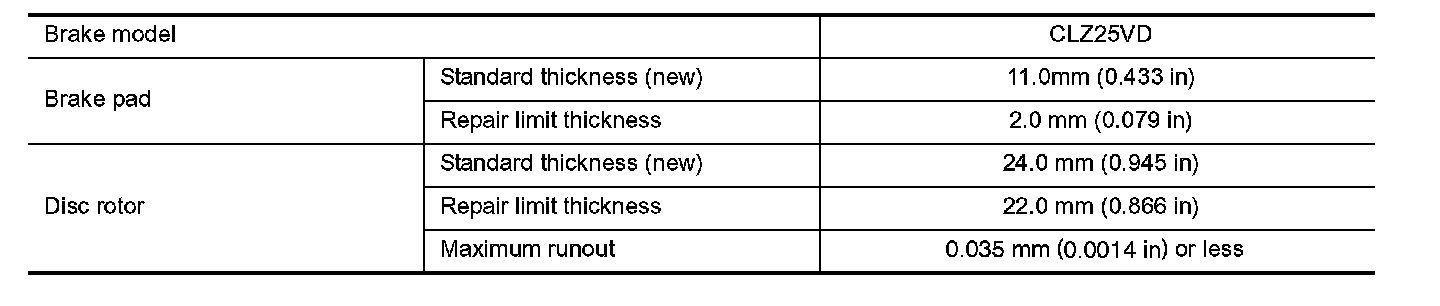

Front Disc Brake:





Front Disc Brake

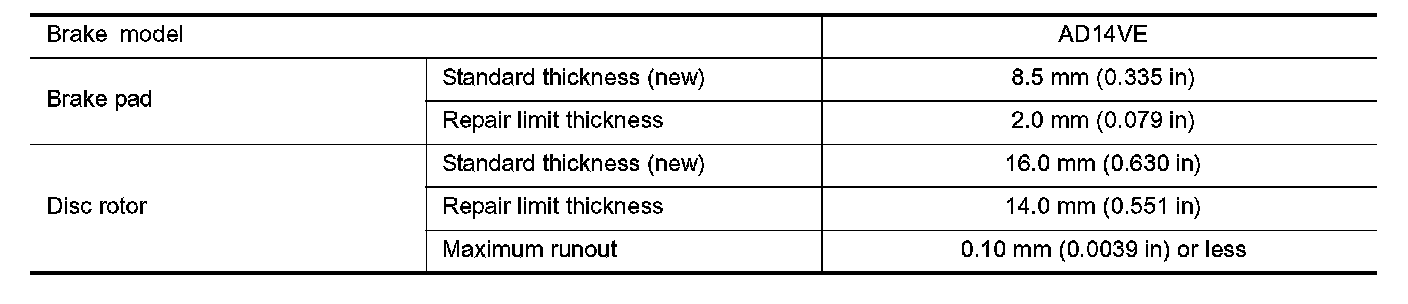

Rear Disc Brake:





Rear Disc Brake

Parking Drum Brake:





Parking Drum Brake

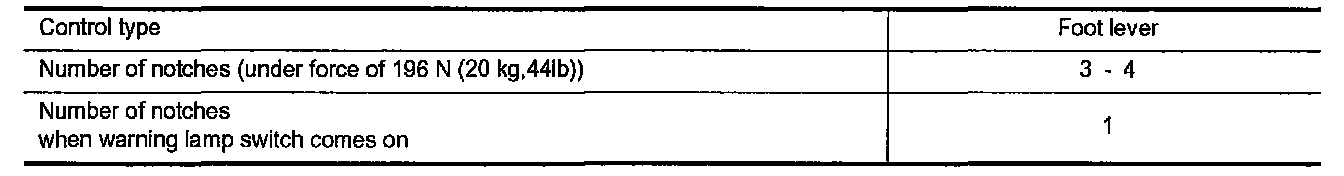

Parking Brake Control:





Parking Brake Control
