Clutch Disc, M/T

Clutch Disc
Engine model VQ35DE
Model 250
Facing size (Outer dia. inner dia. thickness); 250 x 170 x 3.2 mm (9.84 x 6.69 x 0.126 in.)
Wear limit (depth to the rivet head) 0.3 mm (0.012 in.)
Runout limit/diameter of the area to be measured; 0.7 mm (0.028 in.) or less/240 mm (9.45 in.) dia.
Maximum backlash of spline (at outer edge disc) 1.0 mm (0.039 in.)

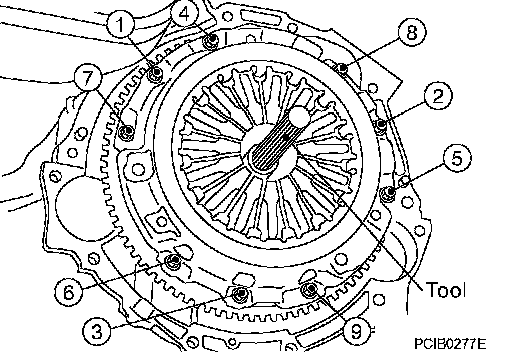

CLUTCH DISC, CLUTCH COVER
