System Specifications

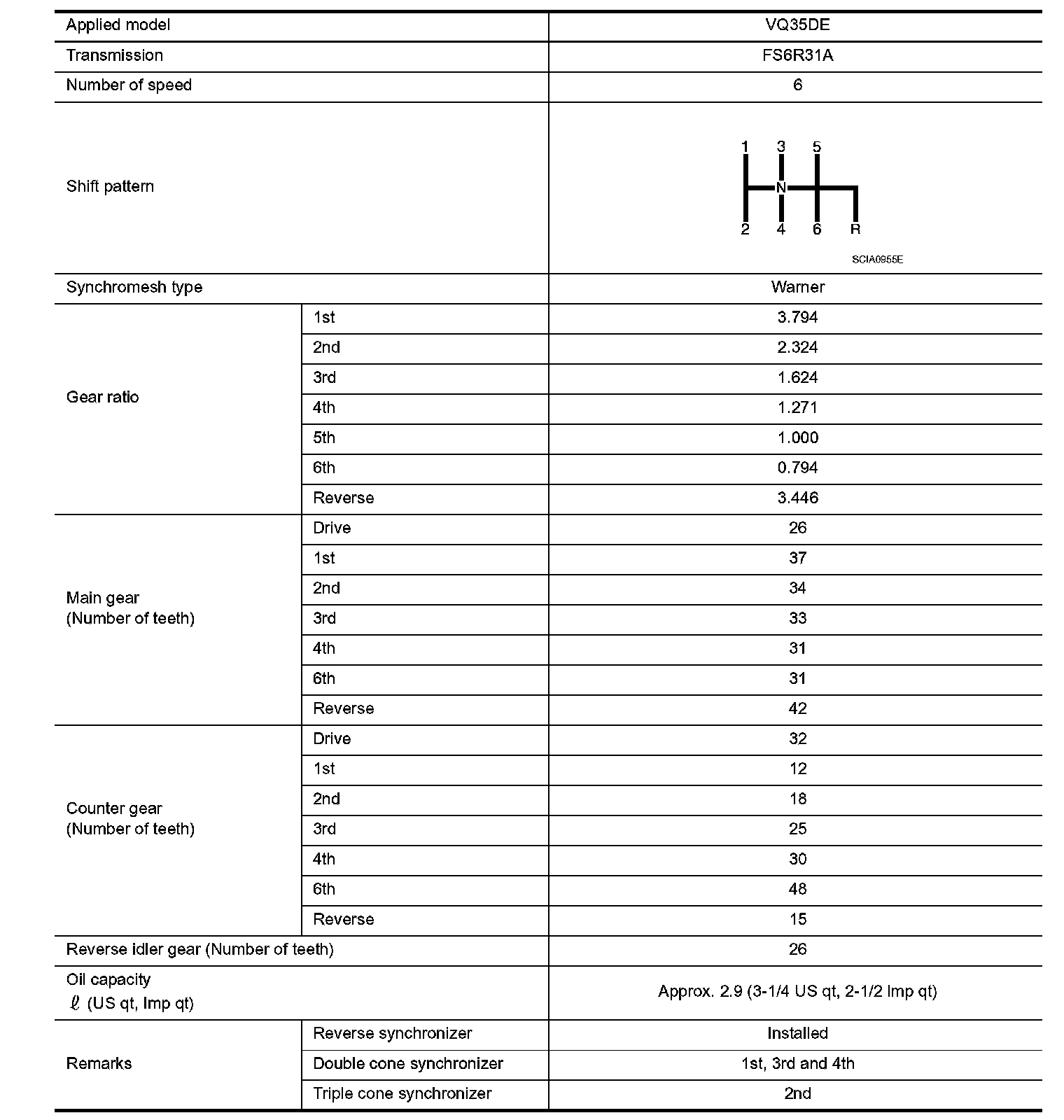

General Specifications

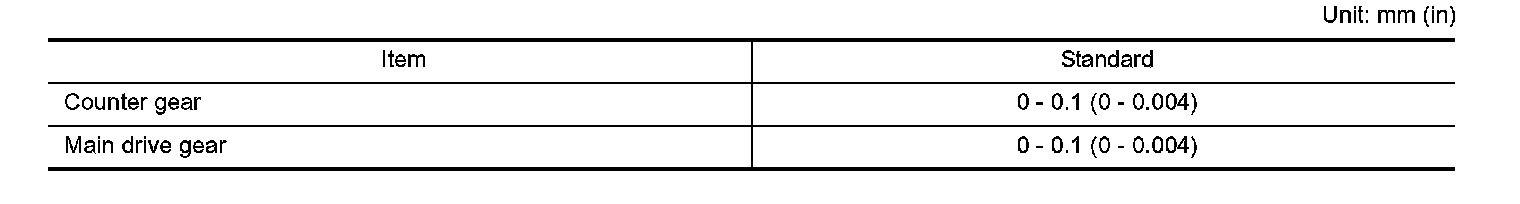

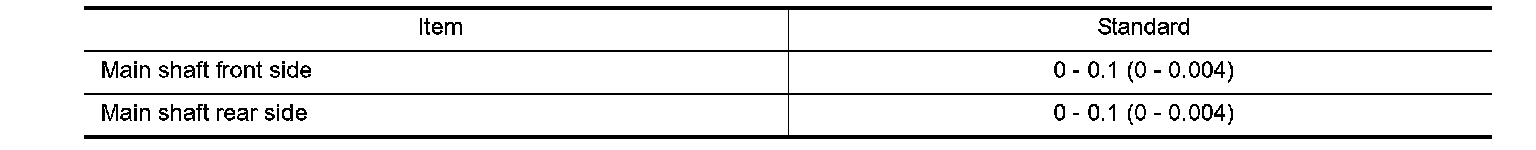

End Play

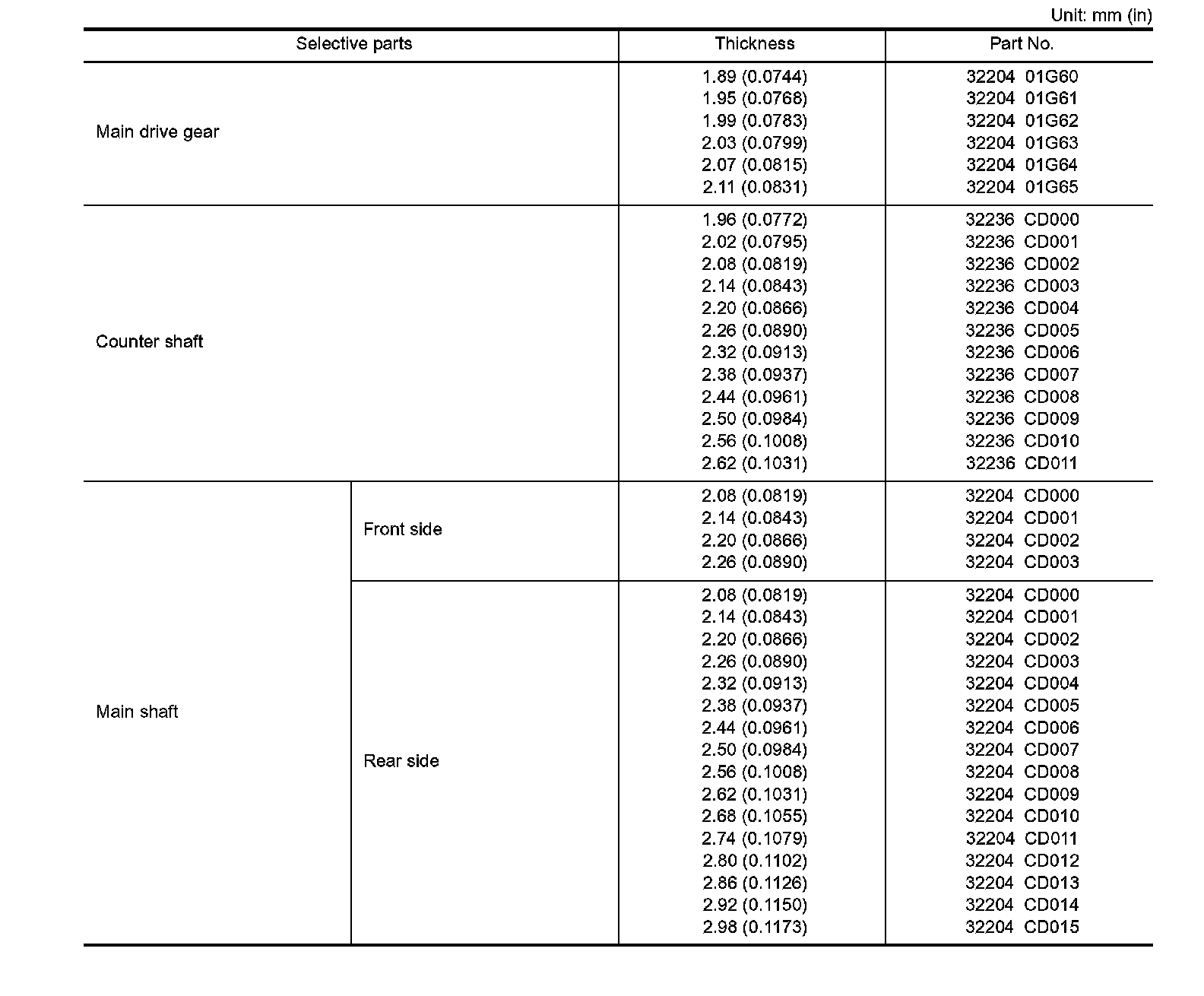

Snap Rings

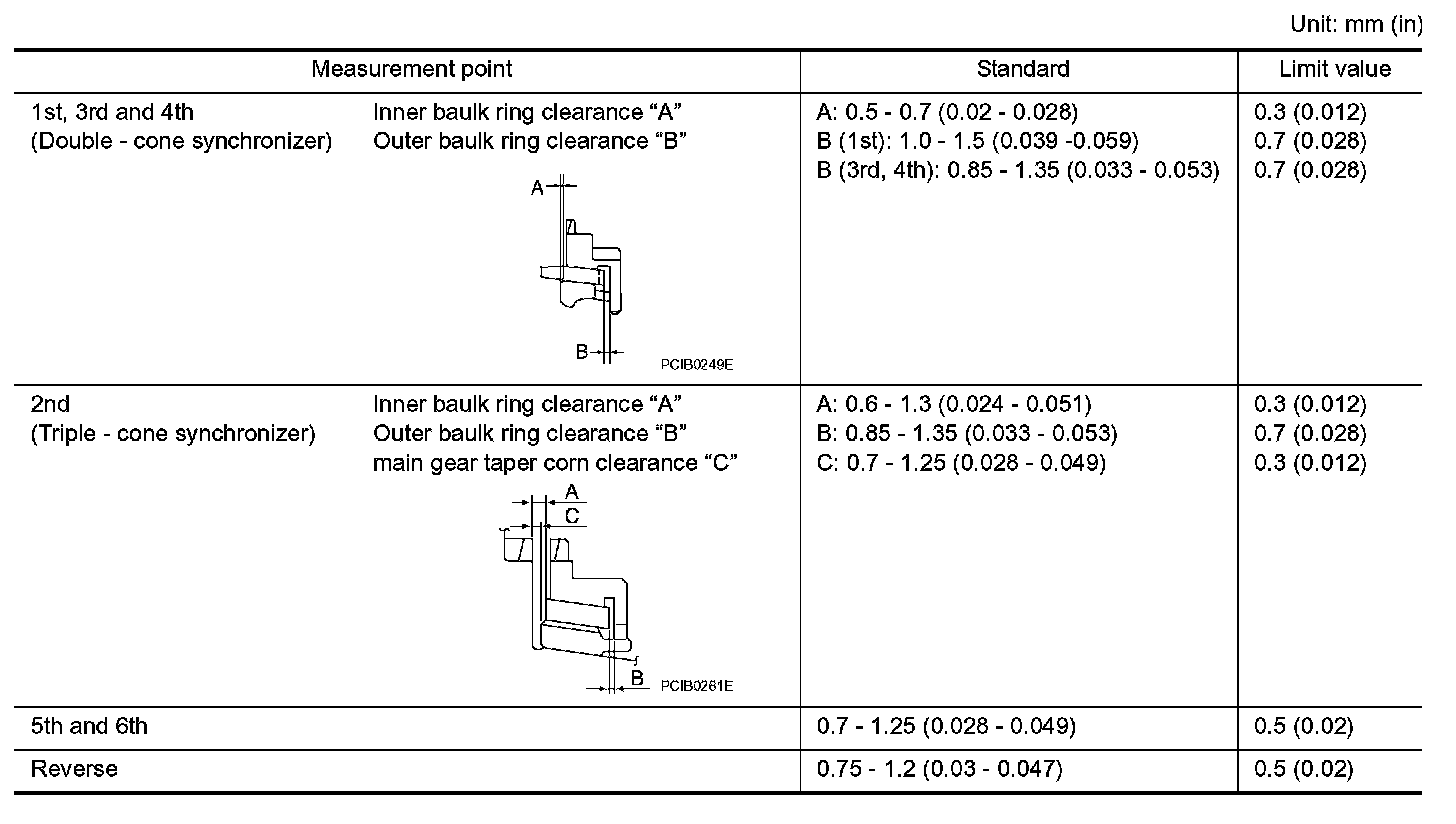

Baulk Ring Clearance

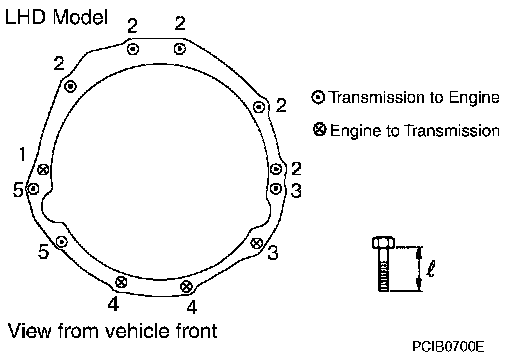

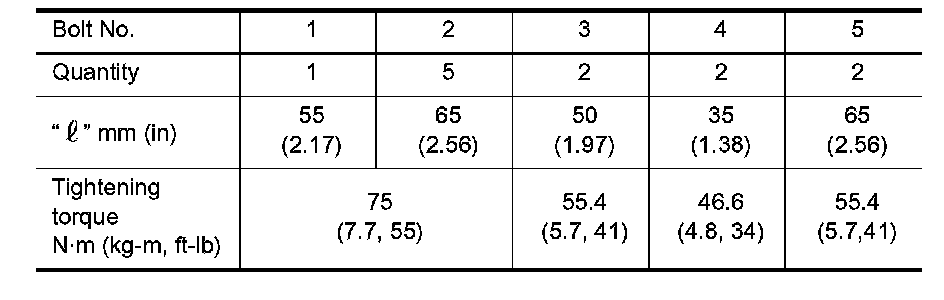

^ When installing transmission to the engine, install mounting bolts in accordance with the standards.

Installation
