Mechanical Specifications

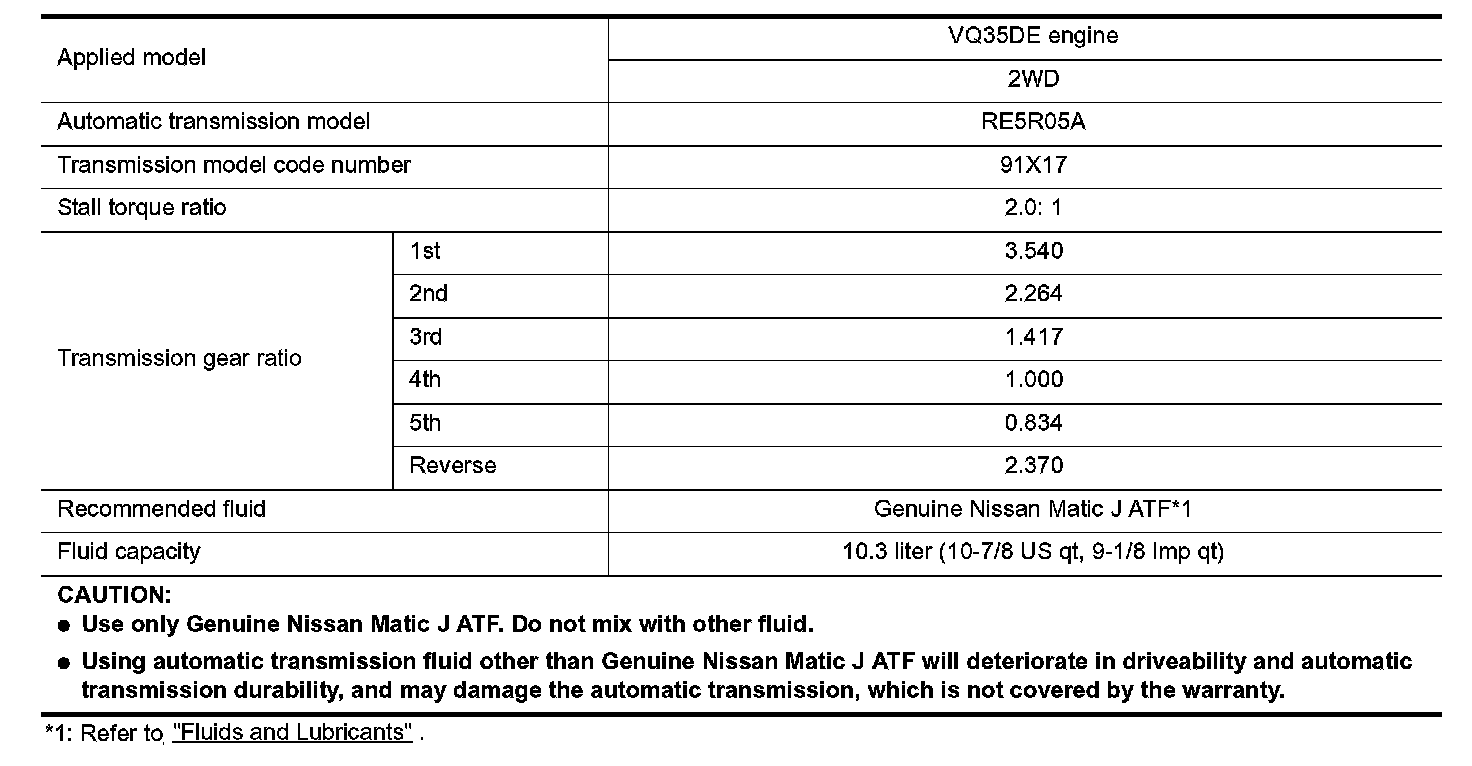

General Specifications

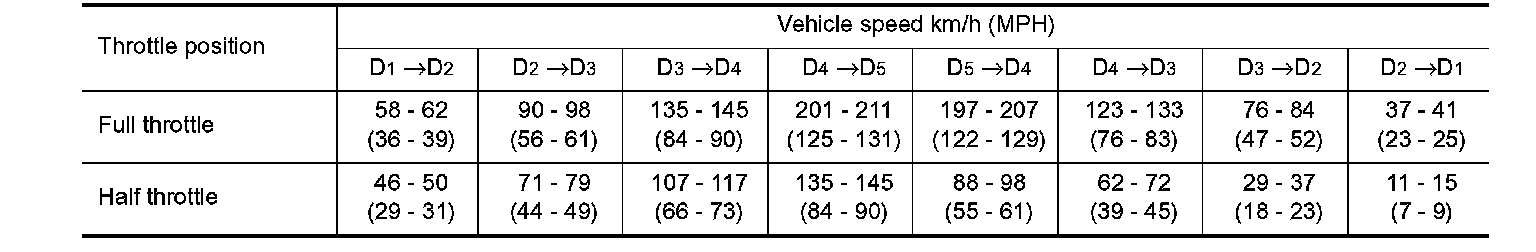

Vehicle Speed When Shifting Gears





^ At half throttle, the accelerator opening is 4/8 of the full opening.

Vehicle Speed When Performing and Releasing Complete Lock-up





^ At closed throttle, the accelerator opening is less than 1/8 condition.
^ At half throttle, the accelerator opening is 4/8 of the full opening.

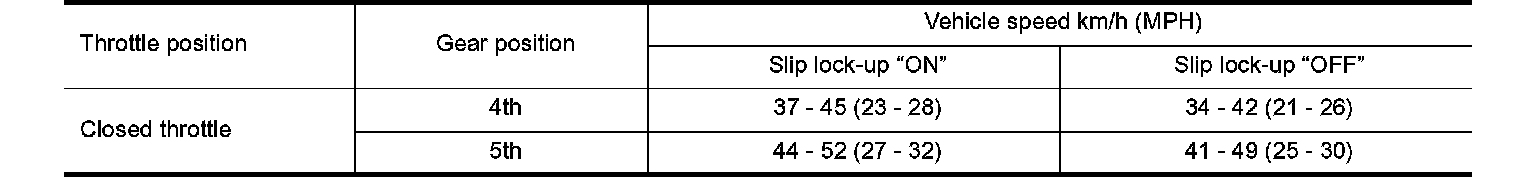

Vehicle Speed When Performing and Releasing Slip Lock-up





Stall Speed

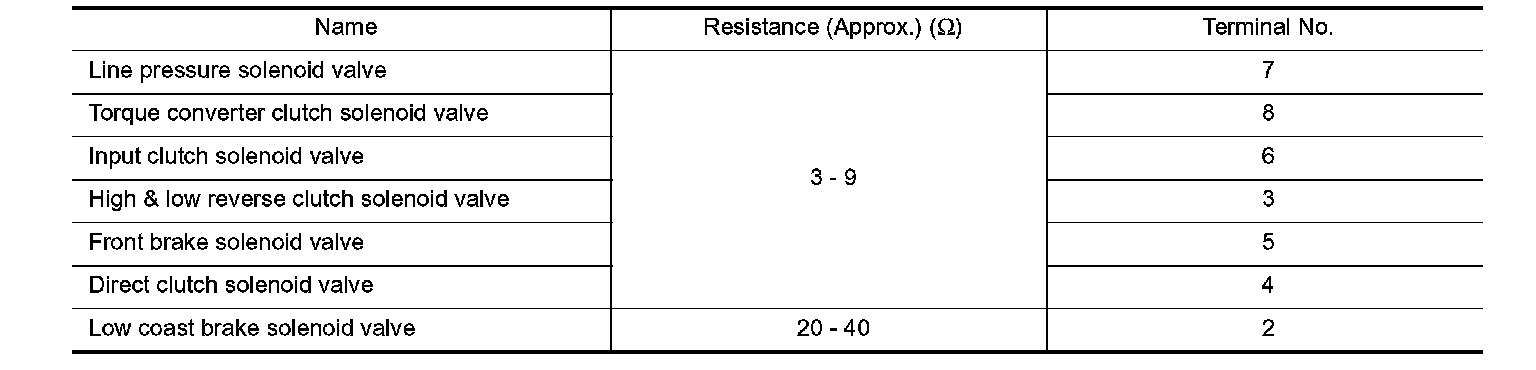

Solenoid Valves

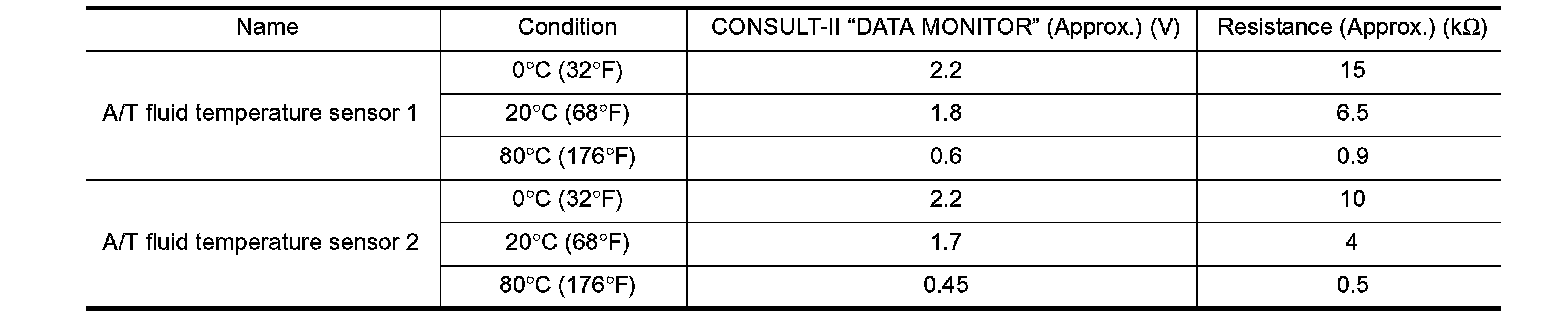

A/T Fluid Temperature Sensor

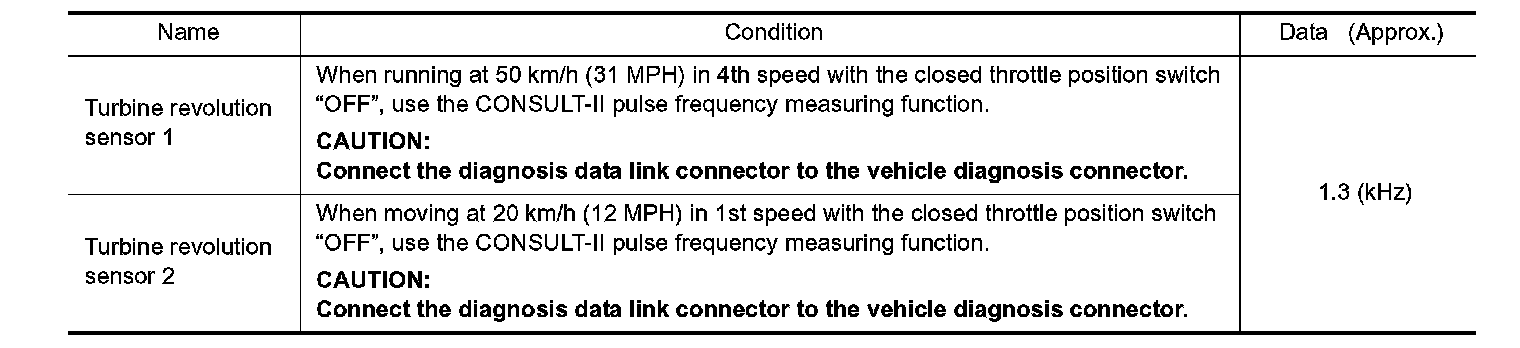

Turbine Revolution Sensor





Vehicle Speed Sensor A/T (Revolution Sensor)

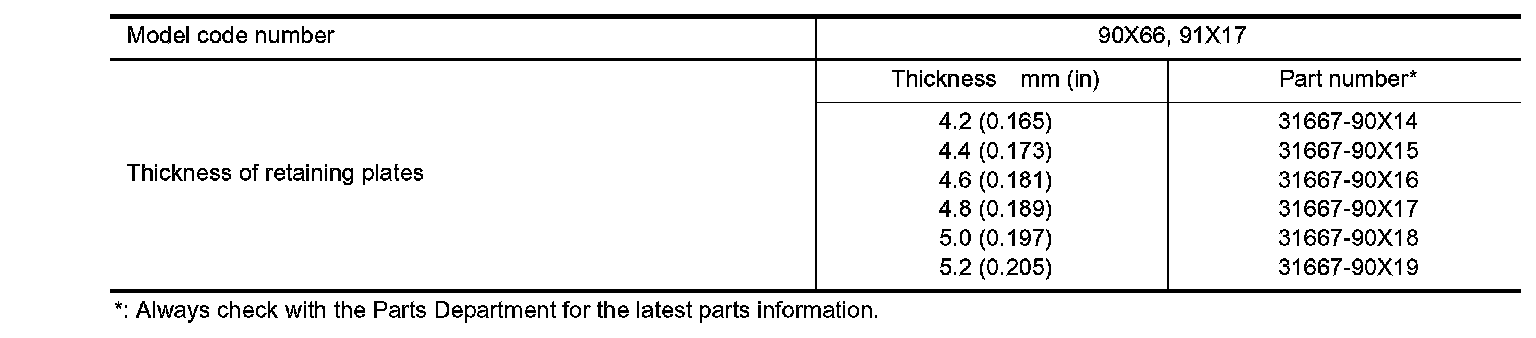

Reverse brake





Total End Play

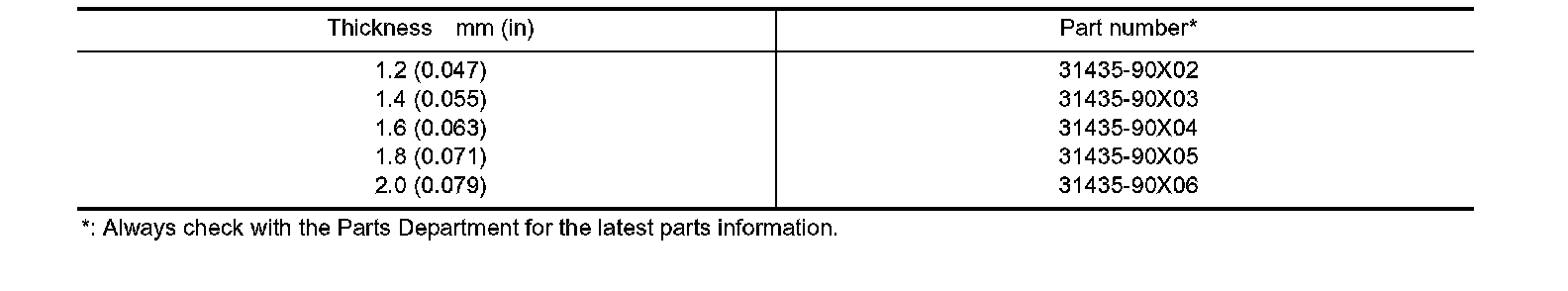

BEARING RACE FOR ADJUSTING TOTAL END PLAY








^ When installing transmission to the engine, attach the fixing bolts in accordance with the standard.

INSTALLATION
