Rear Final Drive Assembly Removal and Installation

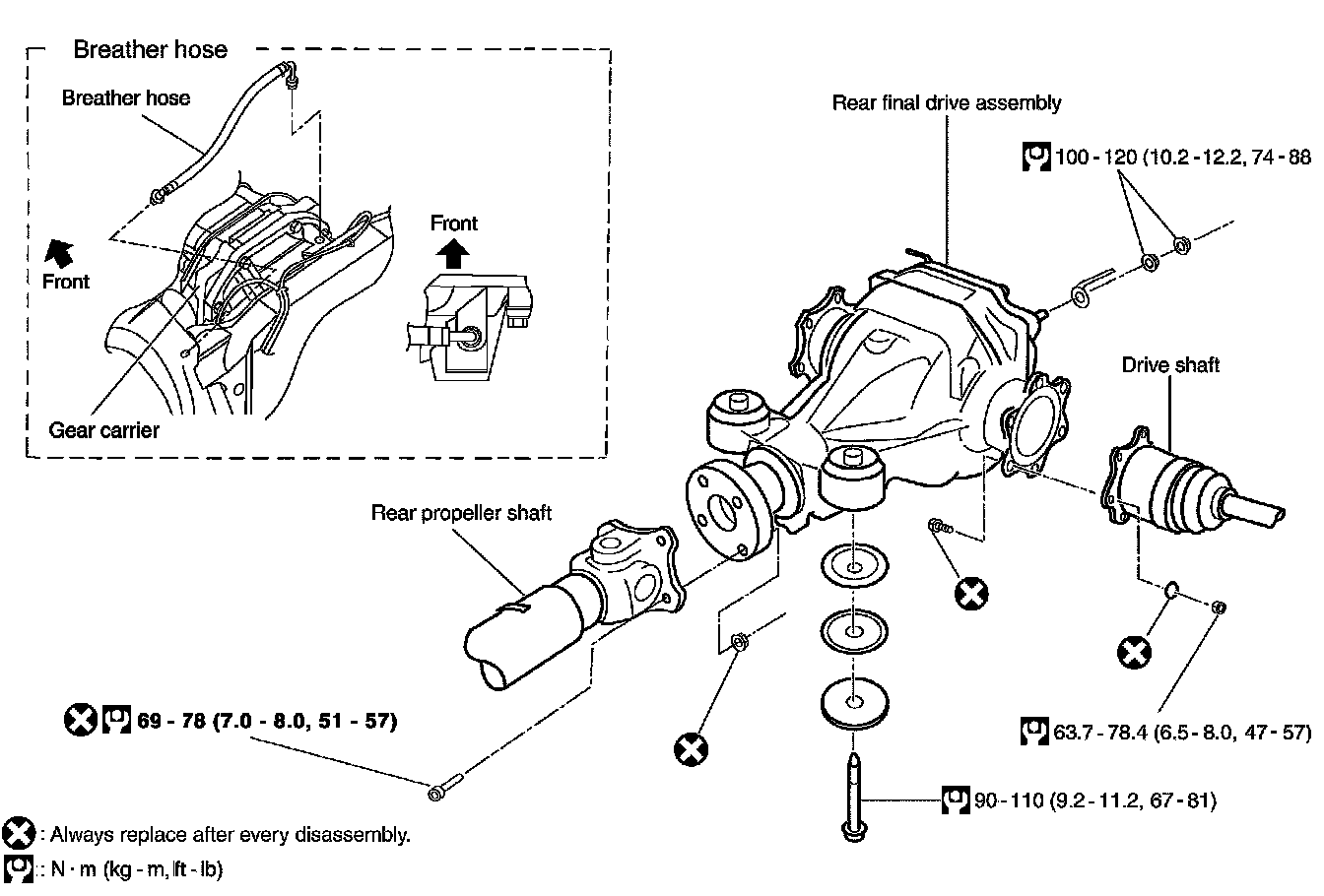

REAR FINAL DRIVE ASSEMBLY





Removal and Installation
REMOVAL
1. Remove exhaust center tube with power tool.
2. Remove rear stabilizer bar with power tool.
3. Remove rear propeller shaft from the final drive.
4. Remove rear drive shaft with power tool.
5. Remove breather hose from the final drive.
6. Remove ABS wheel sensor.
7. Place a transmission jack on the final drive.

NOTE: Do not place a transmission jack on the rear cover (aluminum case).

8. Remove the mounting bolts and nuts connecting to the suspension member, and remove the rear final drive.

INSTALLATION
Install in the reverse order of removal.

CAUTION: After installation, check the final drive oil level.
