Reading and Clearing Diagnostic Trouble Codes

CONSULT-II Function

CONSULT-II BASIC OPERATION PROCEDURE
1. Turn ignition switch "OFF".

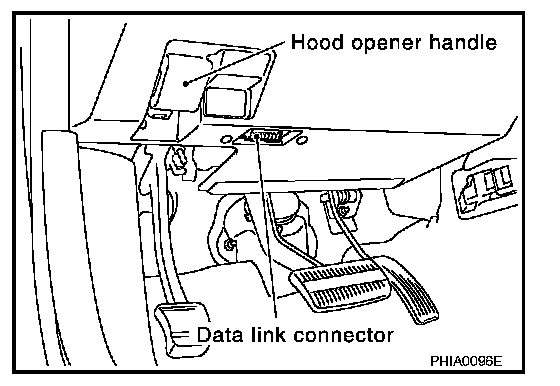

2. Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector.




3. Turn ignition switch "ON".

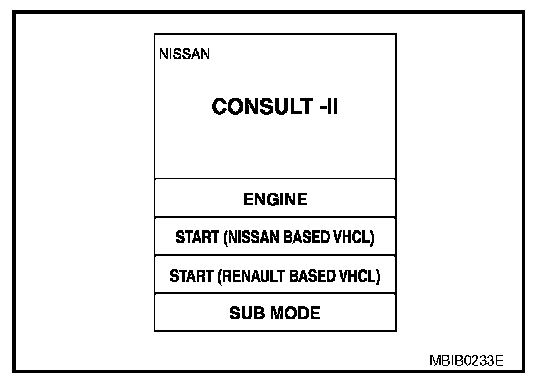

4. Touch "START(NISSAN BASED VHCL)".

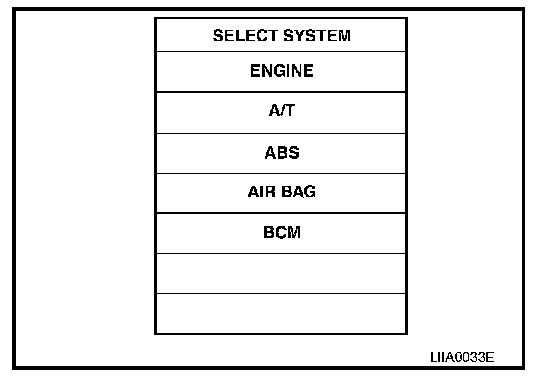

5. Touch "BCM".




6. Touch "REAR DEFOGGER".




7. Select diagnosis mode, "DATA MONITOR" and "ACTIVE TEST".
