Reading and Clearing Diagnostic Trouble Codes

CONSULT-II Inspection Procedure
1. Turn ignition switch "ON".

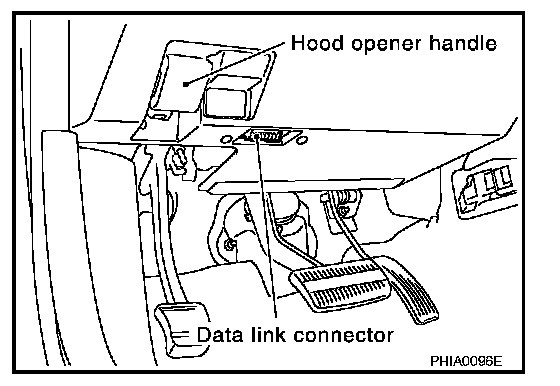

2. Connect "CONSULT-II and CONSULT-II CONVERTER" to the data link connector.




3. Turn ignition switch "ON".
4. Touch "START (NISSAN BASED VHCL)".

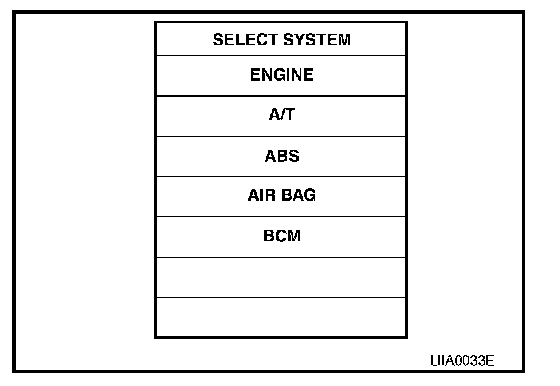

5. Touch "BCM".




6. Touch "RETAINED PWR".

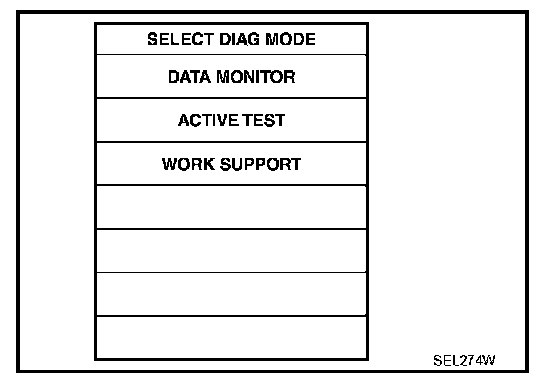

7. Select diagnosis mode.
"ACTIVE TEST" and "WORK SUPPORT" are available.
