Radiator Support: Service and Repair

RADIATOR CORE SUPPORT

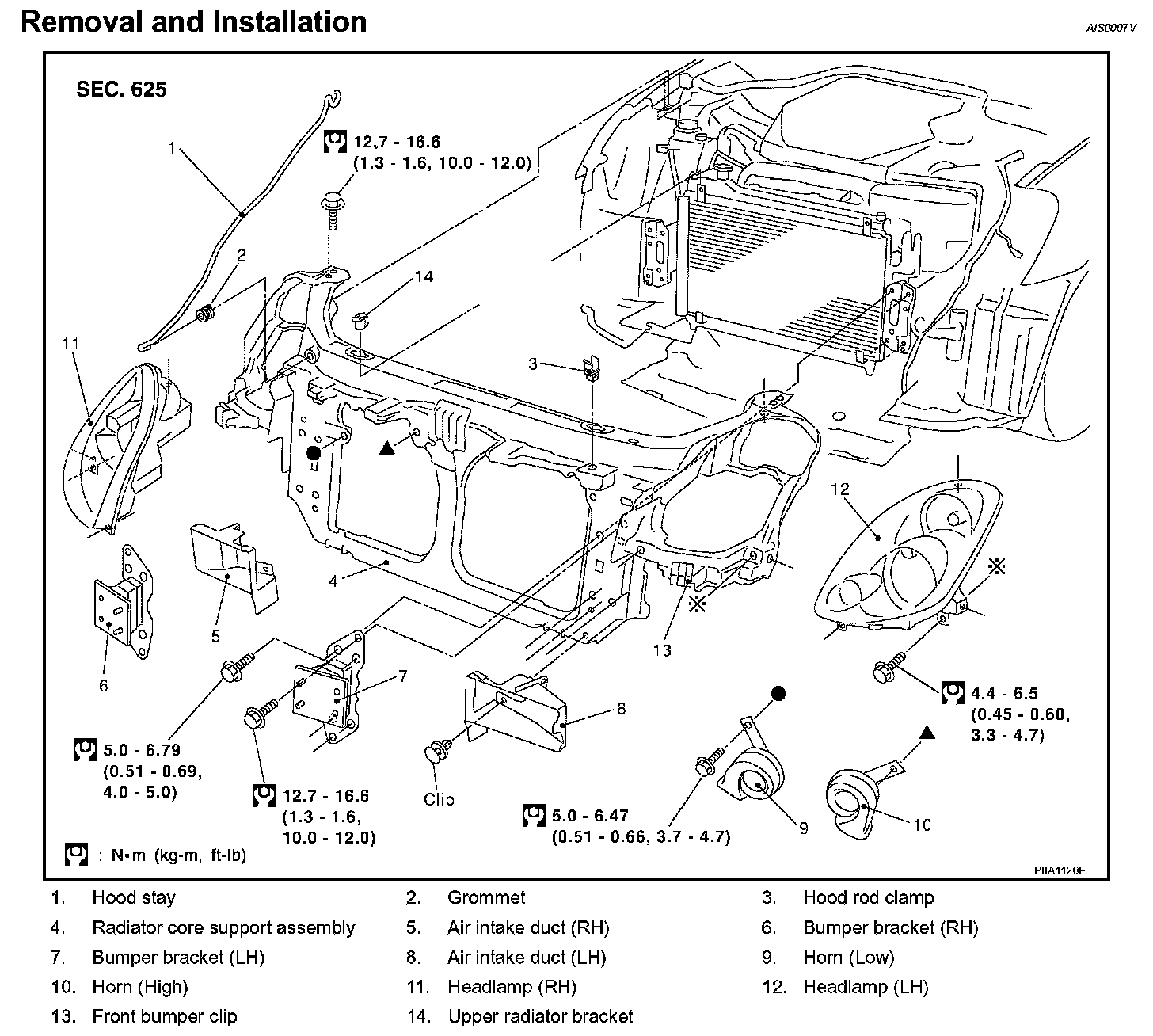

Removal and Installation

REMOVAL
1. Remove hood assembly.
2. Remove front bumper, bumper reinforcement and bumper bracket.
4. Remove washer tank.
5. Remove horn connectors.
6. Remove mounting harness clip on radiator core support assembly, the harness is separate.
7. Remove resonator mounting screws.
8. Remove air duct (LH/RH), and remove washer tank inlet clip.




9. Remove upper radiator bracket, and radiator core support assembly mounting bolts.

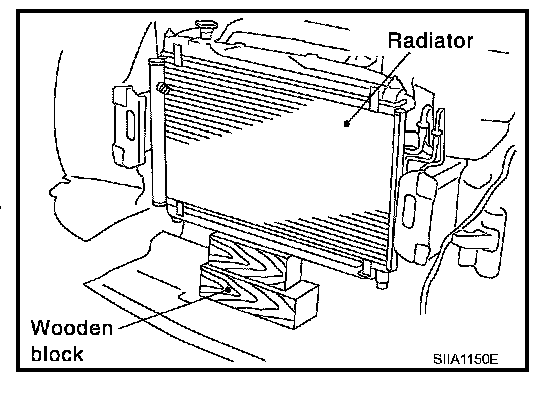

CAUTION: Put a wooden block under the radiator assembly to prevent the radiator assembly from falling.

10. Remove headlamp (LH/RH).
11. Remove radiator core support assembly.
12. After removing radiator core support assembly, the following parts are separate.
- Remove the hood stay, grommet and hood rod clamp
- Horn (High/Low)
- Air intake duct (LH/RH)
- Front bumper clip (LH/RH)

INSTALLATION
Install in the reverse order of removal.
