Refrigerant Pressure Sensor / Switch: Service and Repair

Refrigerant Pressure Sensor




REMOVAL AND INSTALLATION
1. Remove the condenser. Refer to "Condenser".

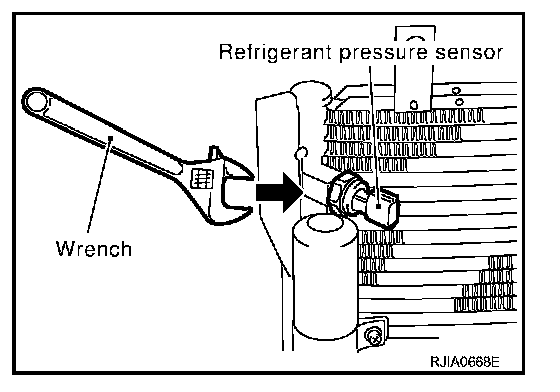

2. Remove the refrigerant pressure sensor from condenser.

CAUTION:
- When working, be careful not to damage the condenser fins.
- Apply compressor oil to the O-ring of the refrigerant pressure sensor when installing it.

Refrigerant pressure sensor

Tightening torque :9.9 - 11.7 Nm (1.0 - 1.2 kg-m, 87 - 104 in-lb)
