Solar Sensor: Testing and Inspection

COMPONENT INSPECTION







Sunload Sensor

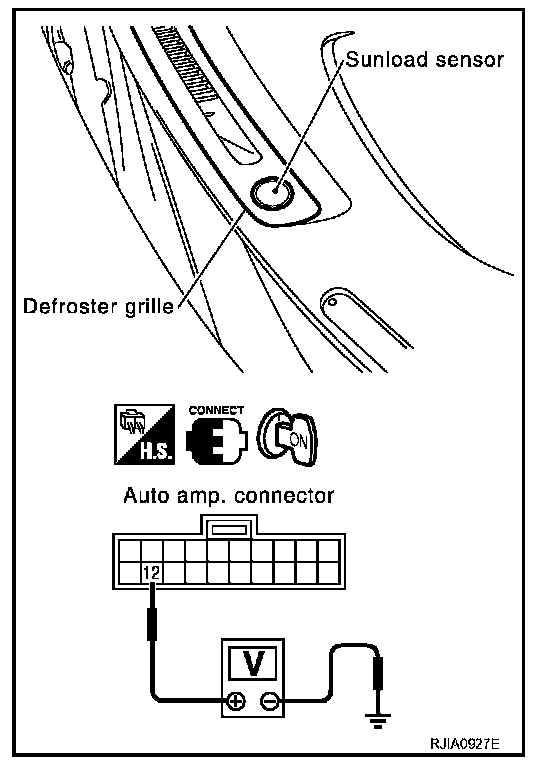

Measure voltage between auto amp. terminal 12 and body ground.
If NG replace auto amp.

- When checking sunload sensor select a place where sun shines directly on it.
