Cigarette Lighter: Service and Repair

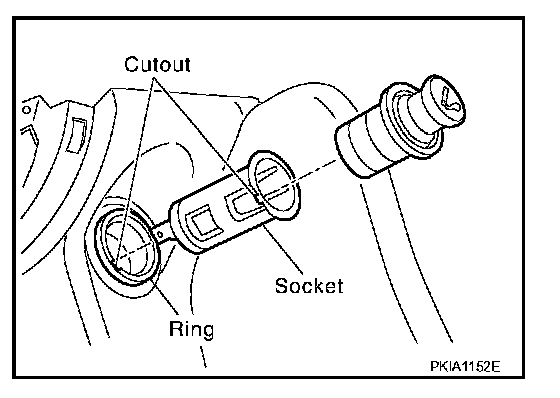

Removal and Installation of Cigarette Lighter




REMOVAL
1. Remove the instrument side panel.
2. Pull out the cigarette lighter.
3. Remove socket.
4. Press out ring from the back of instrument side panel.

INSTALLATION
Install in the reverse order of removal.
