Clock: Service and Repair
REMOVAL
1.
Remove the cluster lid finisher.
2.

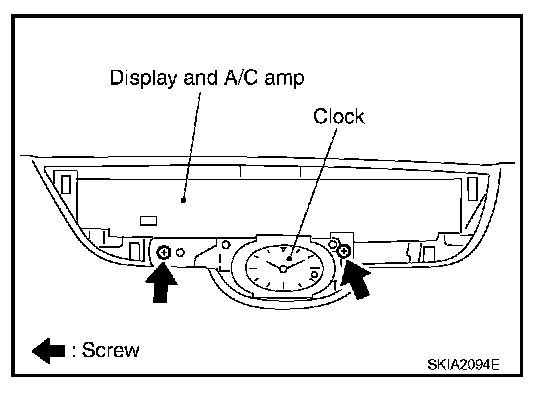

Remove the screws (2), and remove clock.
INSTALLATION
Install in the reverse order of removal.
