Horn: Service and Repair

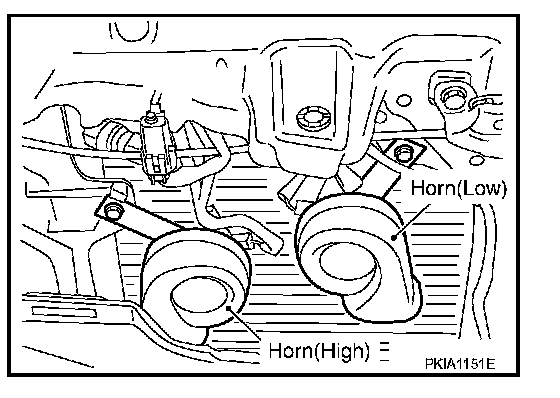

HORN

Removal and Installation

REMOVAL
1. Remove front grille.
2. Disconnect all horn connectors.




3. Remove horn mounting bolt and remove horn from vehicle.

INSTALLATION
Tighten horn bolt to specified torque.
Horn mounting bolt
Torque: 5.8 Nm (0.59 kg-m, 51 in-lb)
