License Plate Lamp: Service and Repair

Removal

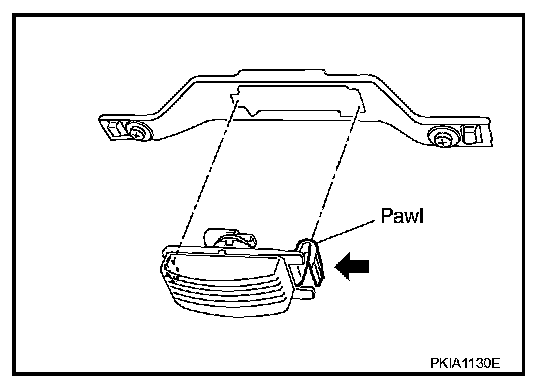

1. While pressing pawl on reverse side, push license plate towards you to remove.
2. Disconnect the license plate lamp connector.

Installation
Install in the reverse order of removal.
