Auxiliary Power Outlet: Service and Repair

Removal and Installation for Console Power Socket




REMOVAL
1. Remove console box assembly.
2. Disconnect power socket connector.

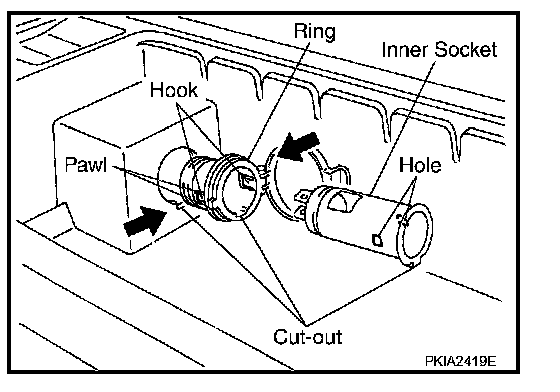

3. Remove inner socket from the ring, while pressing the hook on the ring out from square hole.
4. Remove ring from console box while pressing pawls.

INSTALLATION
Install in the reverse order of removal.
