Steering

SERVICE DATA AND SPECIFICATIONS (SDS)





Steering Wheel





Steering Angle

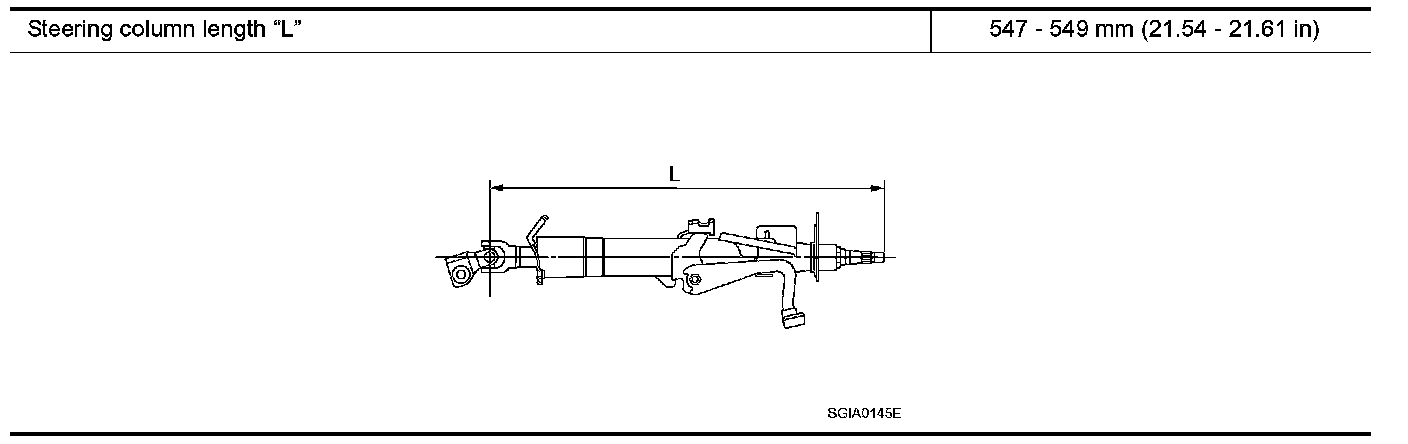

Steering Column

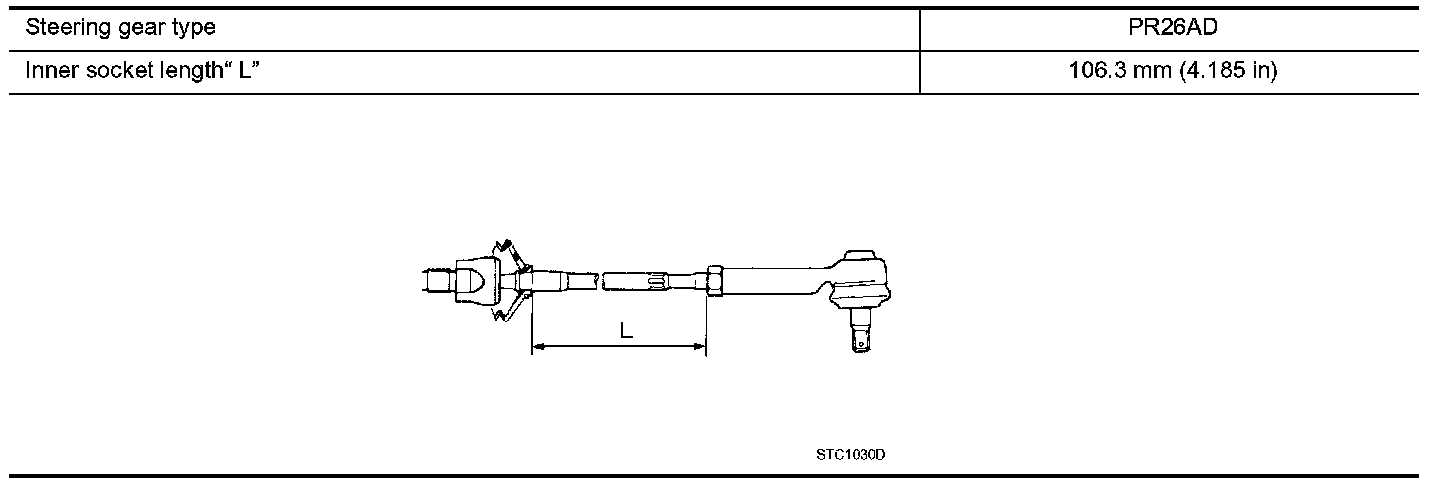

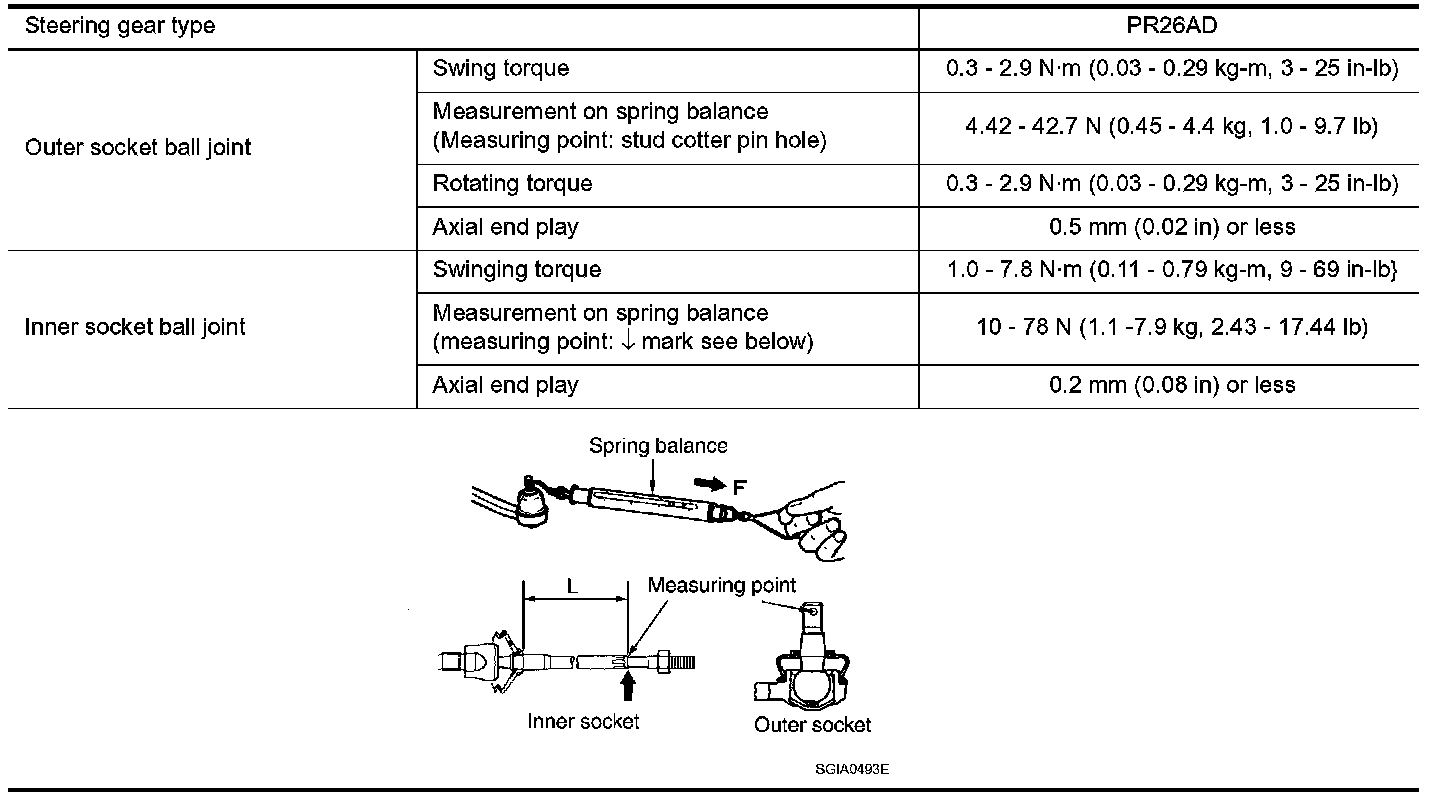

Steering Outer Socket and Inner Socket

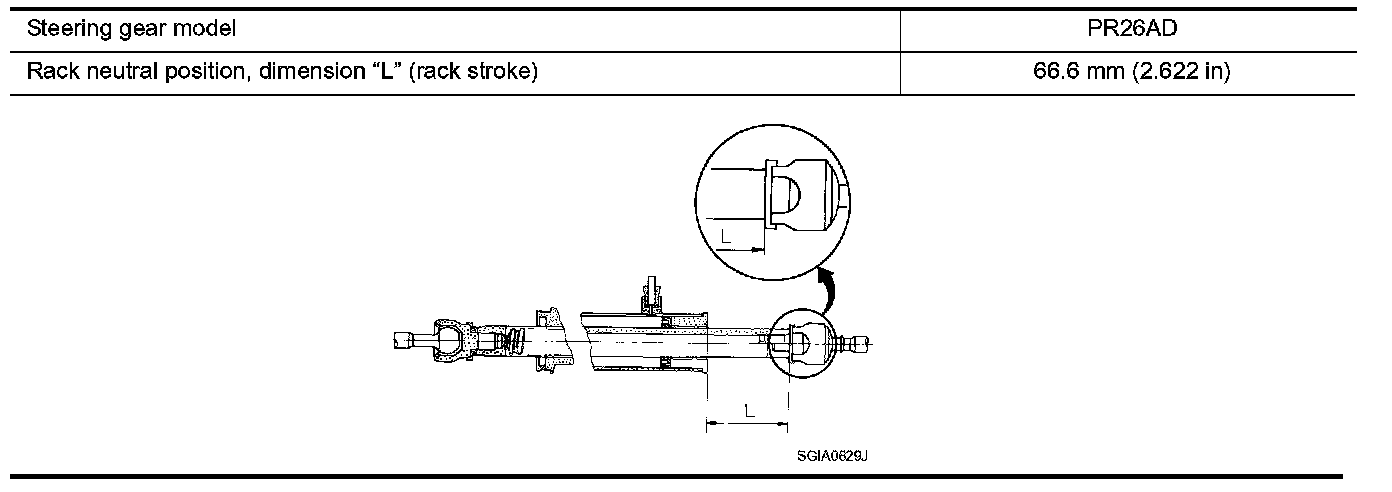

Steering Gear





Oil Pump





Steering Fluid
