Dashboard / Instrument Panel: Service and Repair

INSTRUMENT PANEL ASSEMBLY

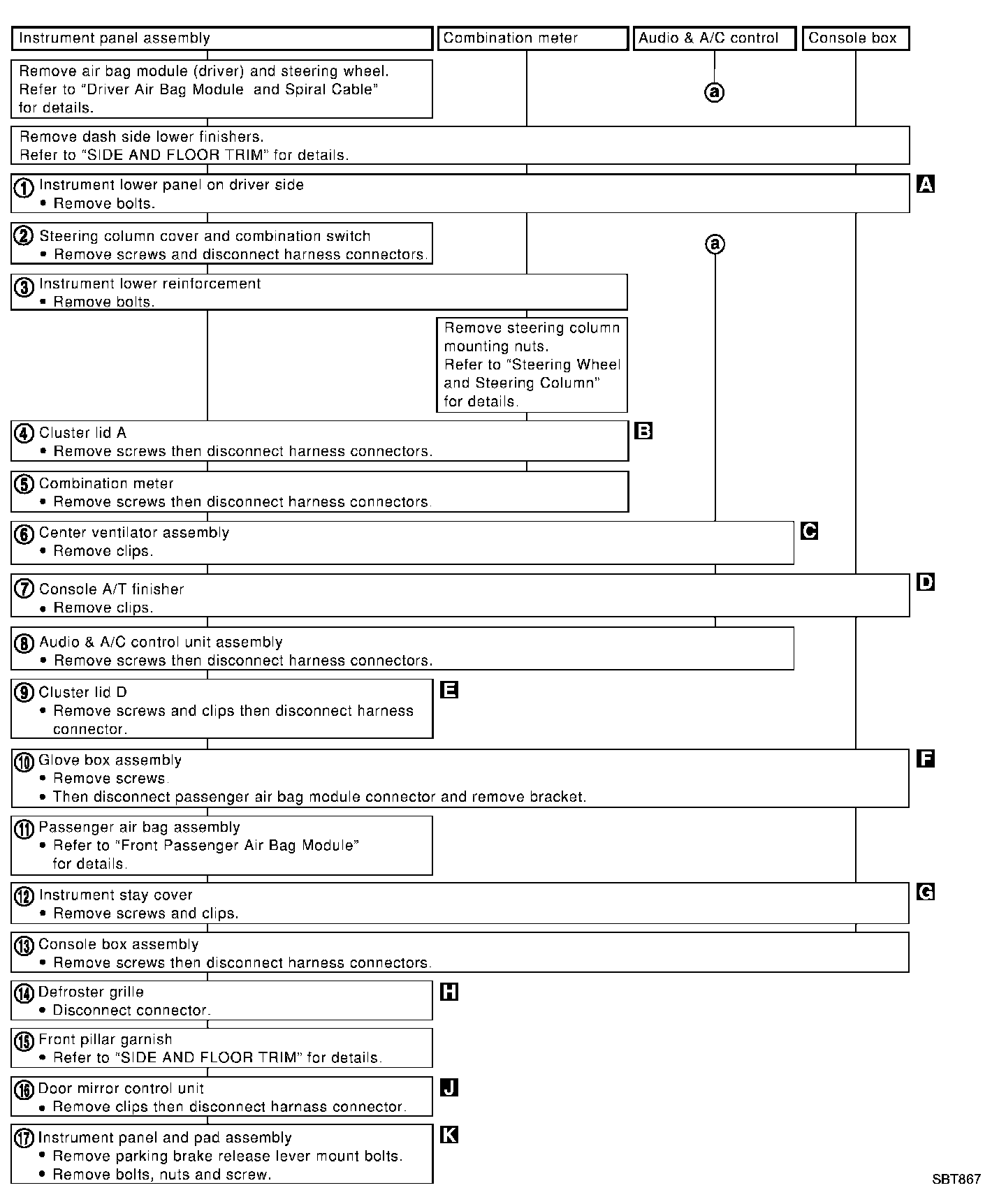

Removal and Installation

CAUTION:
- Disconnect both terminals from battery in advance.
- Disconnect air bag system line in advance.
- Never tamper with or force air bag lid open, as this may adversely affect air bag performance.
- Be careful not to scratch pad and other parts.

INSTALLATION
- Install in the reverse order of removal.
