Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2004
>>
I35 V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
>>
Suspension Spring ( Coil / Leaf )
Suspension Spring ( Coil / Leaf )

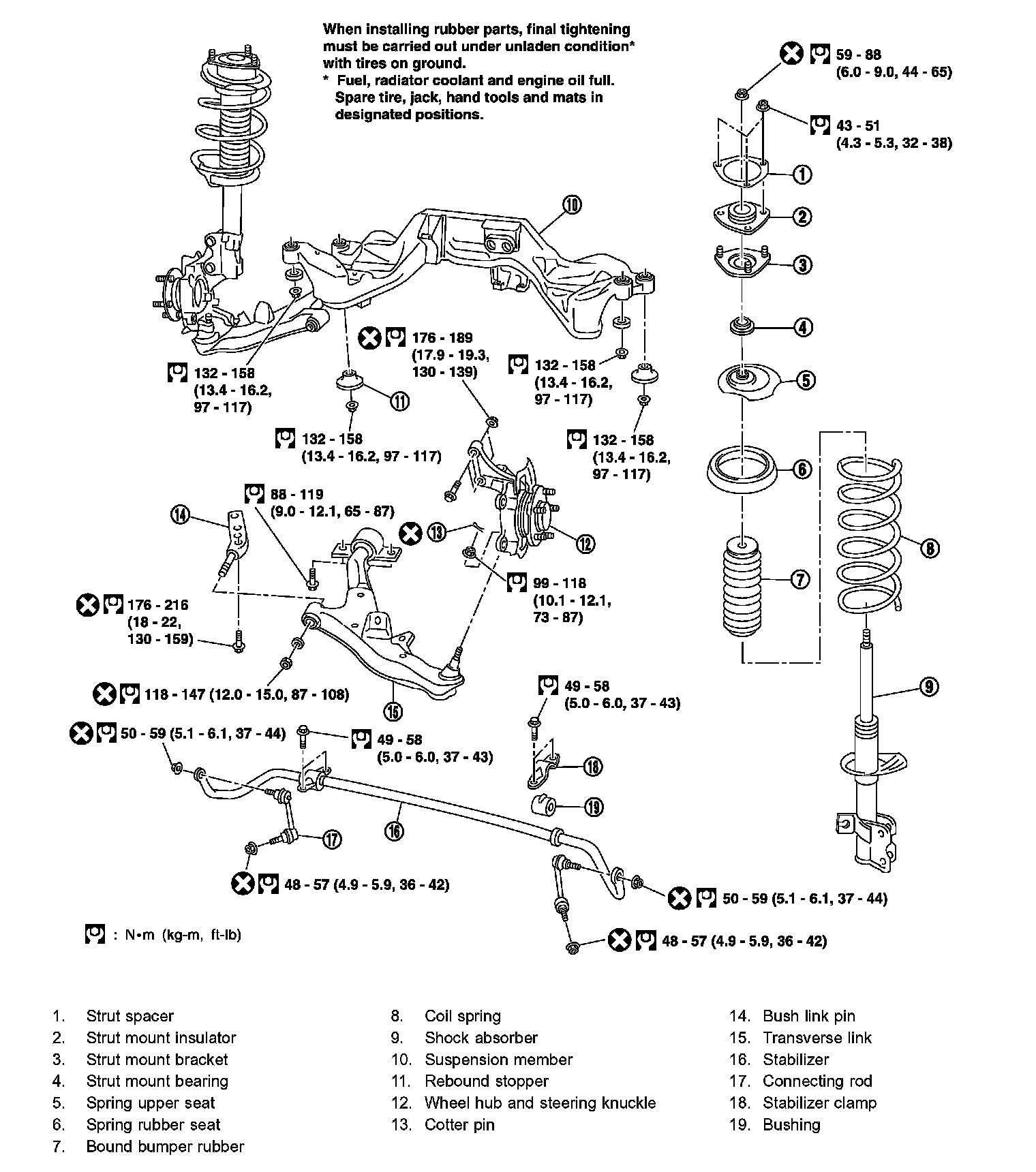

FRONT SUSPENSION / Coil Spring and Shock Absorber:
