Cabin Air Filter / Purifier: Service and Repair

In-cabin Microfilter

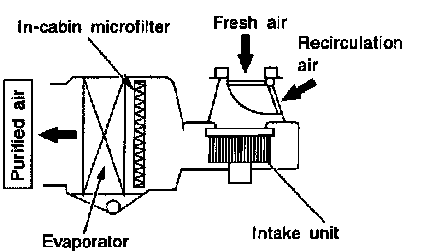

FUNCTION: Air inside passenger compartment is kept clean at either recirculation or fresh mode by installing in-cabin microfilter into cooling unit.








REPLACEMENT PROCEDURE
1. Remove glove box.
2. Remove instrument lower panel from instrument panel.

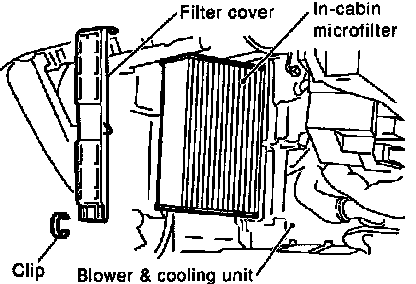

3. Remove filter cover fixed clip.
4. Slide the filter cover to the upper side and then remove it.
5. Take out the in-cabin microfilter from cooling unit.
6. Replace with new one and reinstall on cooling unit.
7. Reinstall filter cover, clip, instrument lower panel and glove box.
