Auxiliary Mechanism: Temperature Setting Trimmer

AUXILIARY MECHANISM: TEMPERATURE SETTING TRIMMER




Unconfirmed Incidents
The customer may feel that the cabin temperature is not being controlled or regulated to the temperature indicated by the auto A/C display screen. To satisfy individual driver preference the Temperature Setting Trimmer may be used to compensate in a range of ±3°C (±6°F).

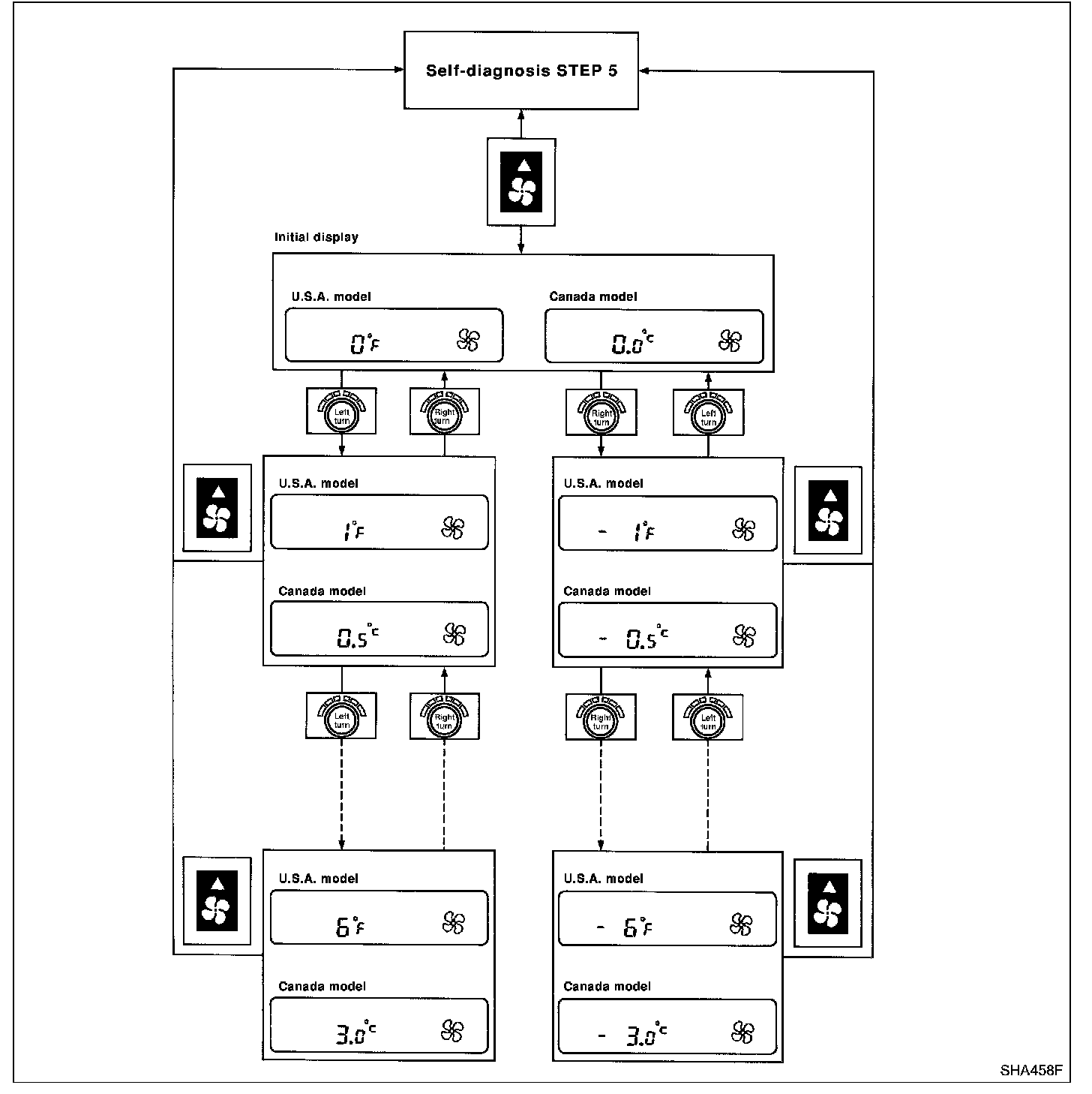

1. Enter Self Diagnosis mode and select STEP 5.
2. Press the Fan Up switch: This will set the A/C system in auxiliary mode and the display will show 61.
3. Turn the temperature dial clockwise or counterclockwise: The temperature will change at a rate of 0.5°C (1°F).

If power is lost to the A/C Auto Amp. trimmer setting is canceled and setting becomes that of initial condition, 0°.

When battery cable is disconnected, trimmer operation is canceled. Temperature set becomes that of initial condition, i.e. 0°C (0°F).
