Multiple Junction Connector: Service and Repair

Installation

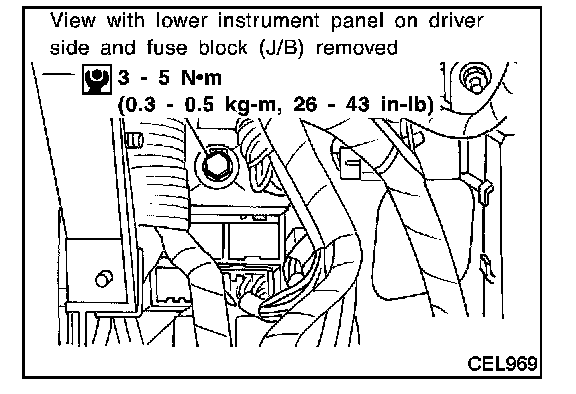

To install SMJ, tighten bolts until orange "full tight" mark appears and then retighten to specified torque as required.
Torque: 3 - 5 Nm (0.3 - 0.5 kg-m, 26 - 43 in-lb)

CAUTION: Do not overtighten bolts, otherwise, they may be damaged.
