Rear Wheel Alignment
WHEEL ALIGNMENTMinimum - 1°45'
Camber 1°0'
Maximum - 0°15'
Left/Right Difference 45'
Toe in 1.0 mm °± 4.0 mm

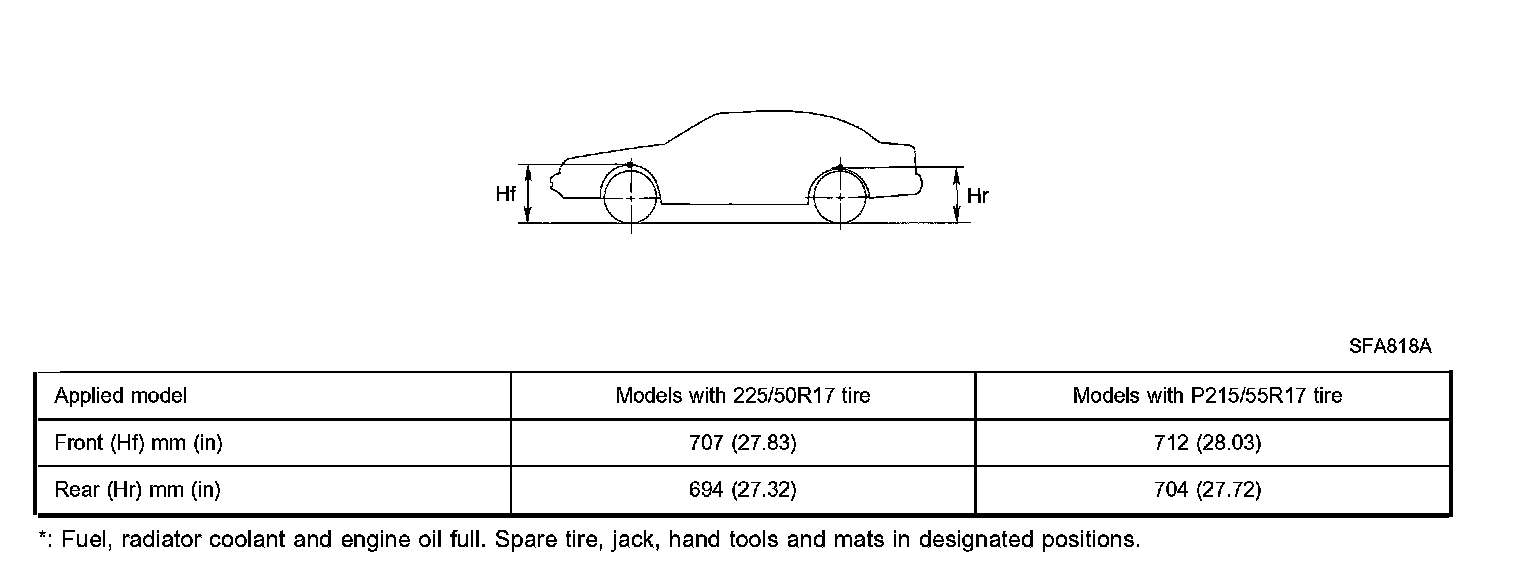

FRONT SUSPENSION / WHEEL ARCH (Ride Height) HEIGHT (UNLADEN*):
Minimum - 1°45'
Camber 1°0'
Maximum - 0°15'
Left/Right Difference 45'
Toe in 1.0 mm °± 4.0 mm
