System Specifications

ABS WHEEL SENSOR:

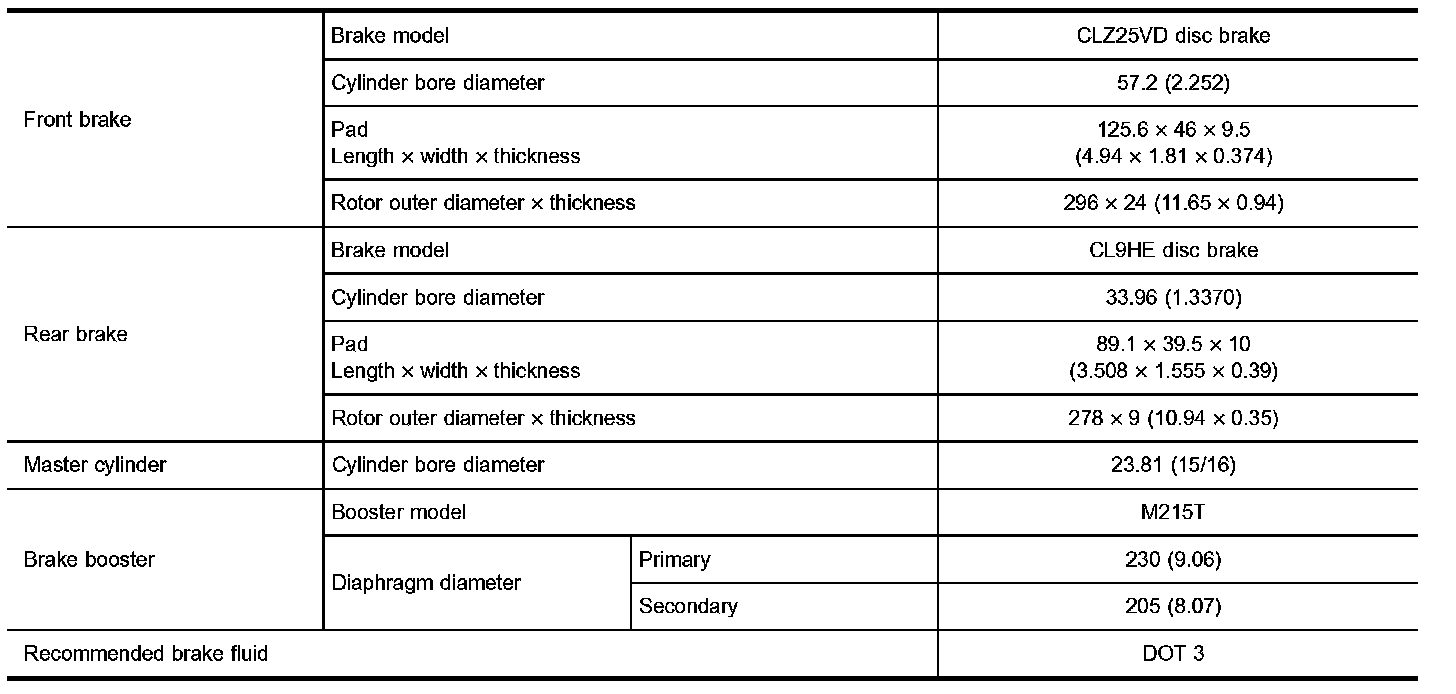

BRAKES / GENERAL SPECIFICATIONS:

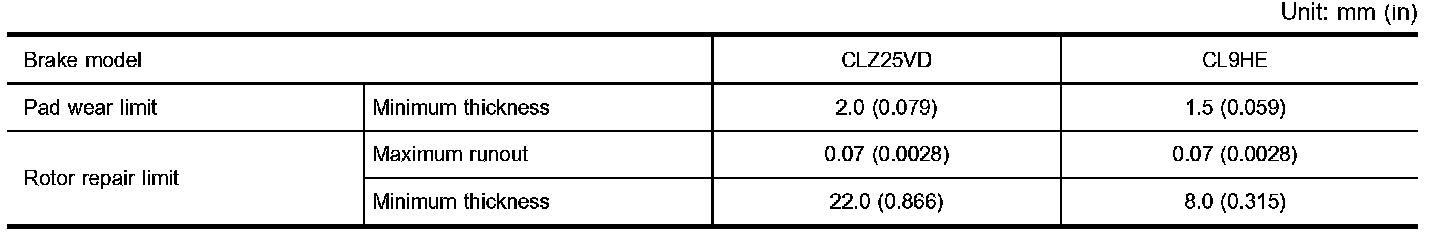

DISC BRAKE:



BRAKE PEDAL:



BRAKE PEDAL ADJUSTMENT:



PARKING BRAKE CONTROL:

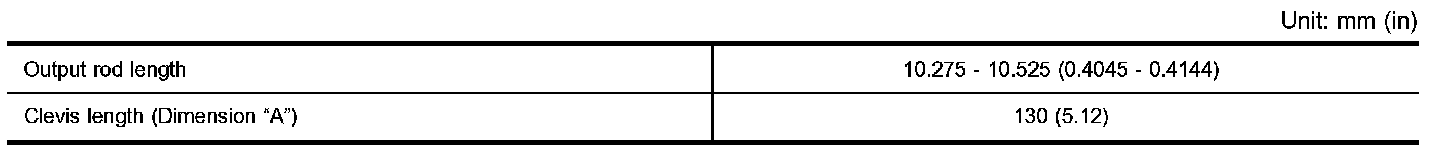

BRAKE BOOSTER:
