Drive Belt

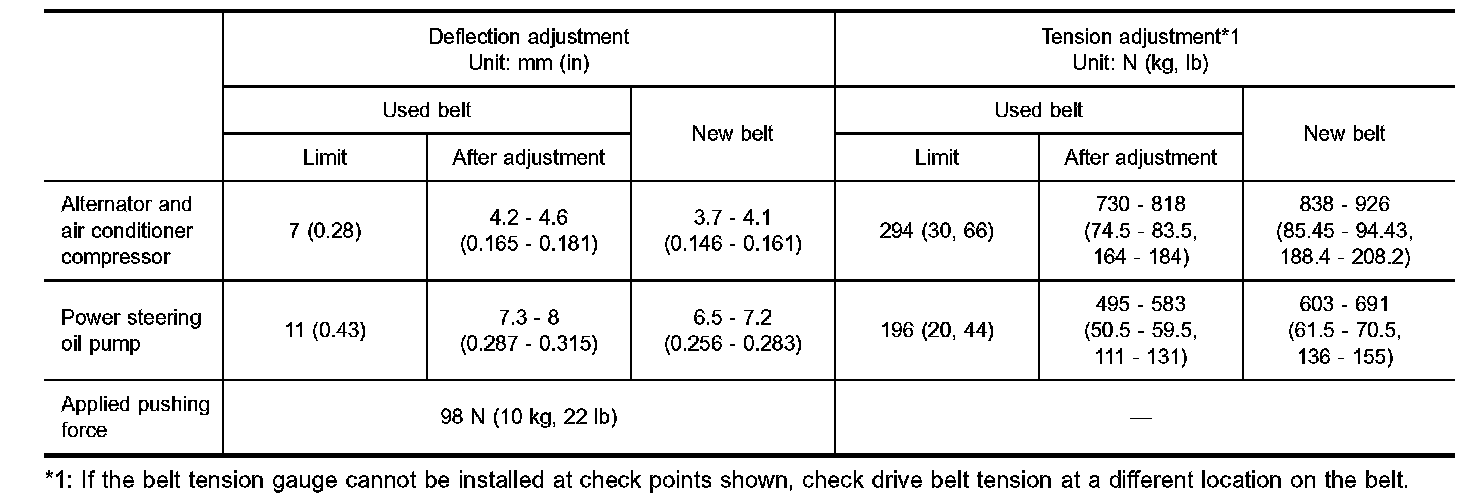

BELT DEFLECTION AND TENSION






*1: If the belt tension gauge cannot be installed at check points shown, check drive belt tension at a different location on the belt.
