Steering Gear

POWER STEERING GEAR AND LINKAGE:



GEAR HOUSING BOLT TIGHTENING SEQUENCE:

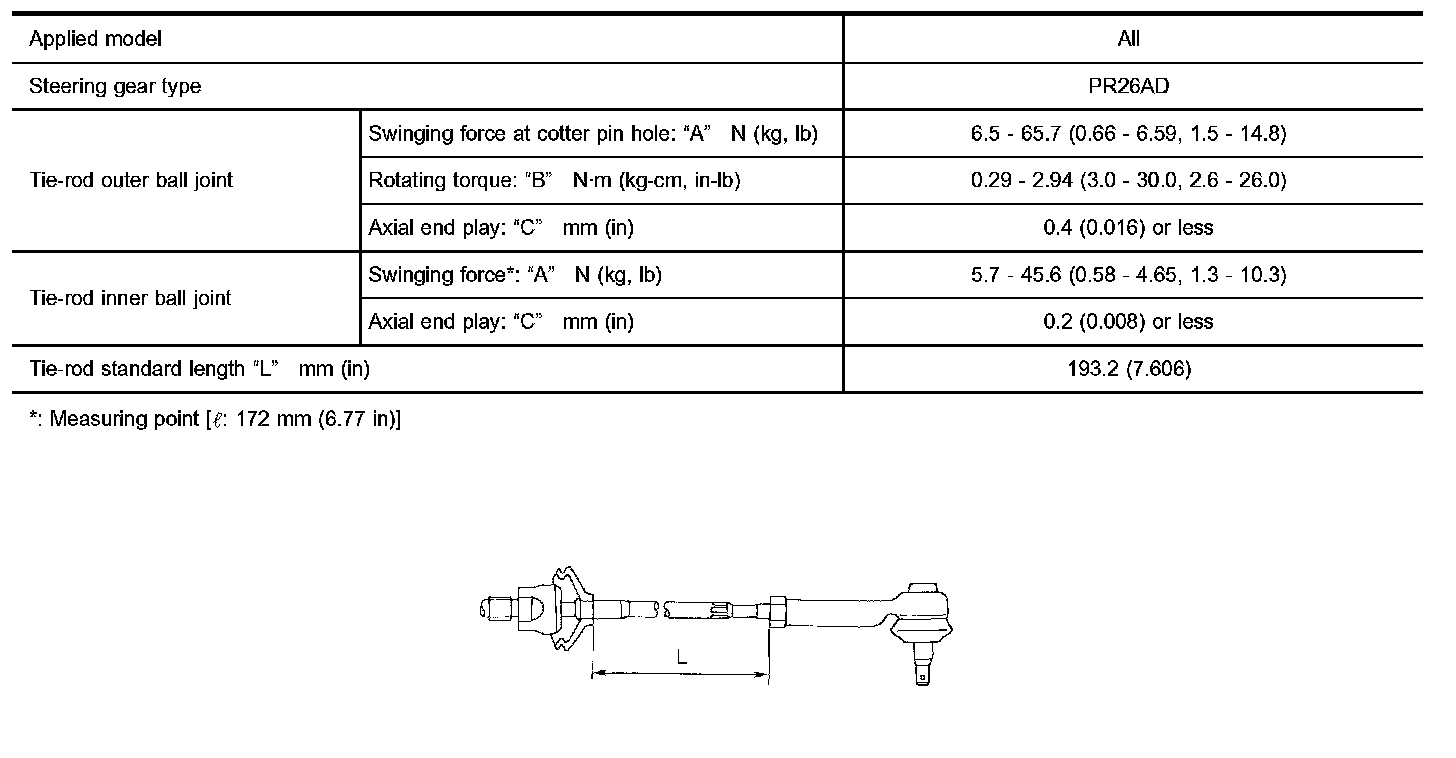

STEERING GEAR AND LINKAGE:
