Front

FRONT SUSPENSION:

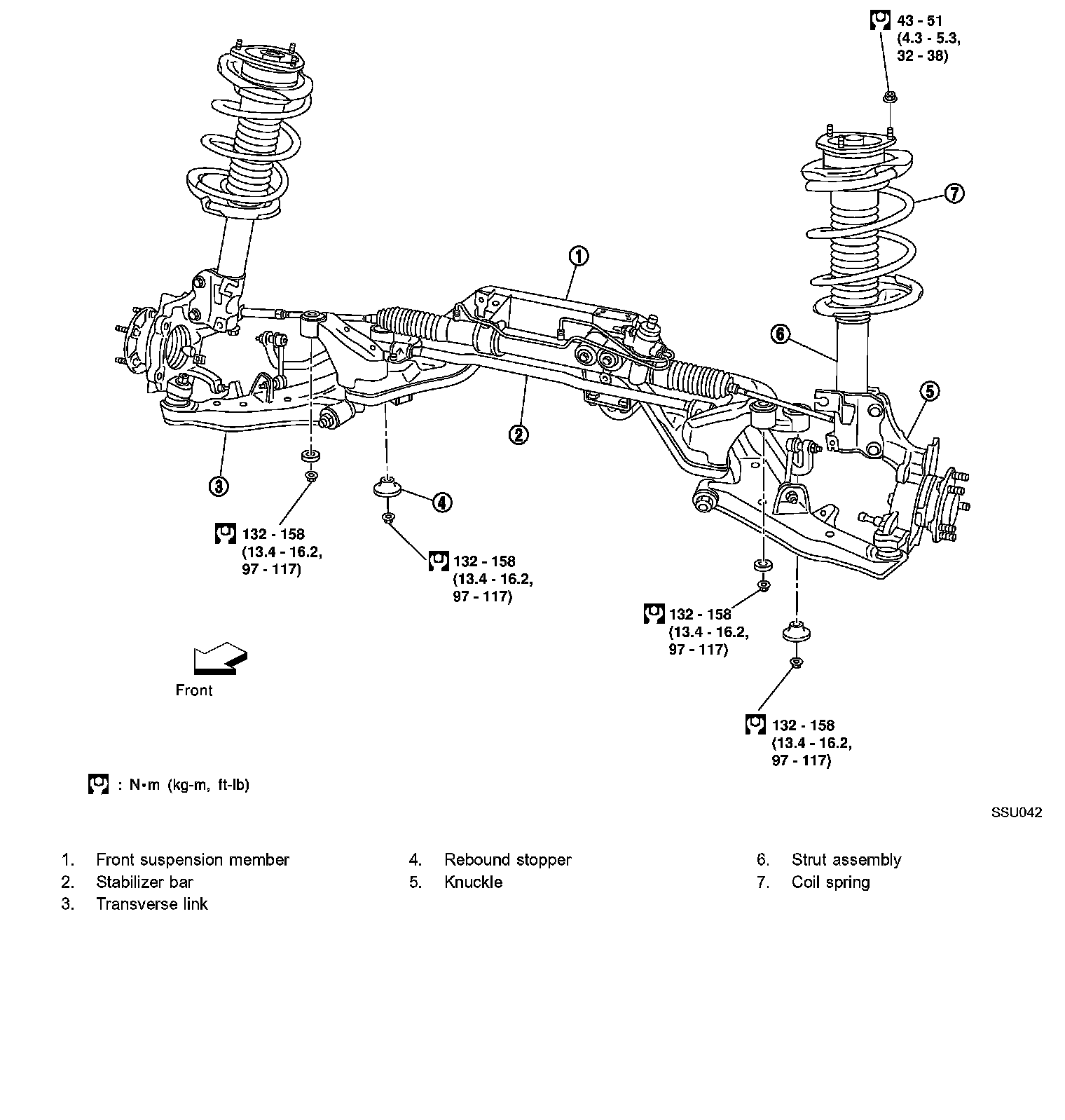

FRONT SUSPENSION / Coil Spring and Shock Absorber:

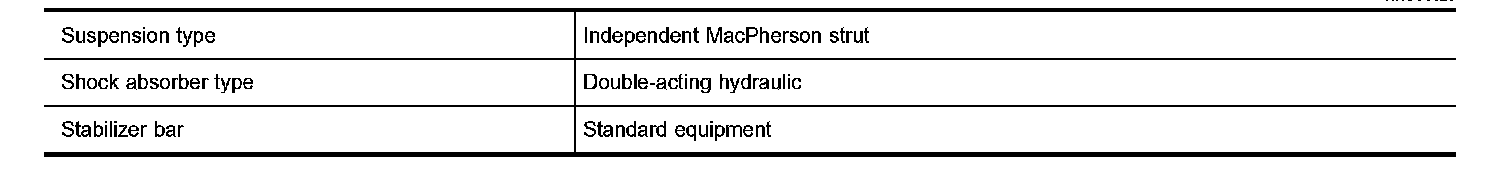

FRONT SUSPENSION / GENERAL SPECIFICATION:

FRONT SUSPENSION / FRONT WHEEL ALIGNMENT (UNLADEN *1):

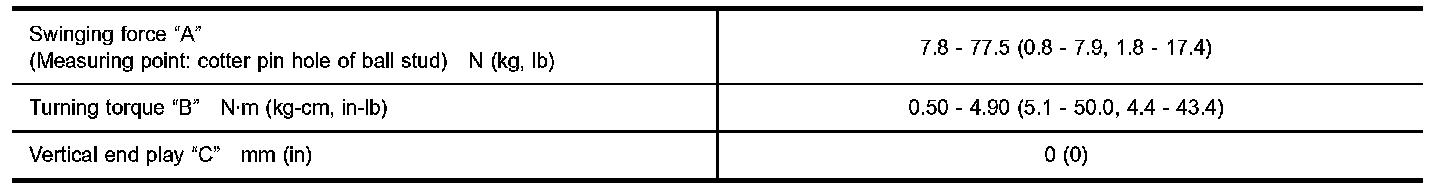

FRONT SUSPENSION / LOWER BALL JOINT:

FRONT SUSPENSION / WHEEL ARCH (Ride Height) HEIGHT (UNLADEN*):

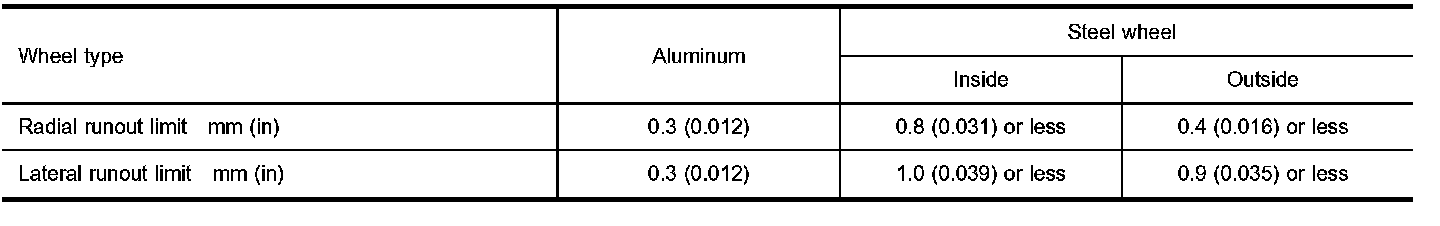

FRONT SUSPENSION / WHEEL RUNOUT AVERAGE:
