A/T - Harsh 1-2 Shift/DTC P0745 Stored: Overview

Classification:
AT04-015

Reference:
ITB05-001

Date:
January 3, 2005

2003-2004 I35; AUTOMATIC TRANSMISSION HARSH 1-2 SHIFT AND/OR DTC P0745 IS STORED

APPLIED VEHICLES:
2003 - 2004 I35 (CA33)

APPLIED DATES:
Vehicles built between:

December 1, 2002 and August 27, 2004

APPLIED TRANSMISSION:
RE4F04B

IF YOU CONFIRM:

The transmission fluid is full (correct level) and in good condition (not burnt), and

^ There is a harsh shift from 1St to 2nd gear,

and/or

^ DTC P0745 (line pressure solenoid circuit) is stored,

ACTIONS:

1. Drain and remove the transmission oil pan.

2. Push/pull the ground terminal and wire for the solenoid valve assembly (see Service Procedure step 4).

^ If it doesn't come off, solder the terminal.

^ If it does come off, replace the solenoid assembly.

3. After soldering, recheck the ground terminal and wire (see Service Procedure step 8).

^ If it's tight, repair is complete.

^ If it's loose, replace the solenoid assembly.

IMPORTANT:
The purpose of "ACTIONS" (above) is to give you a quick idea of the work you will be performing. You MUST closely follow the entire Service Procedure as it contains information that is essential to successfully completing this repair.

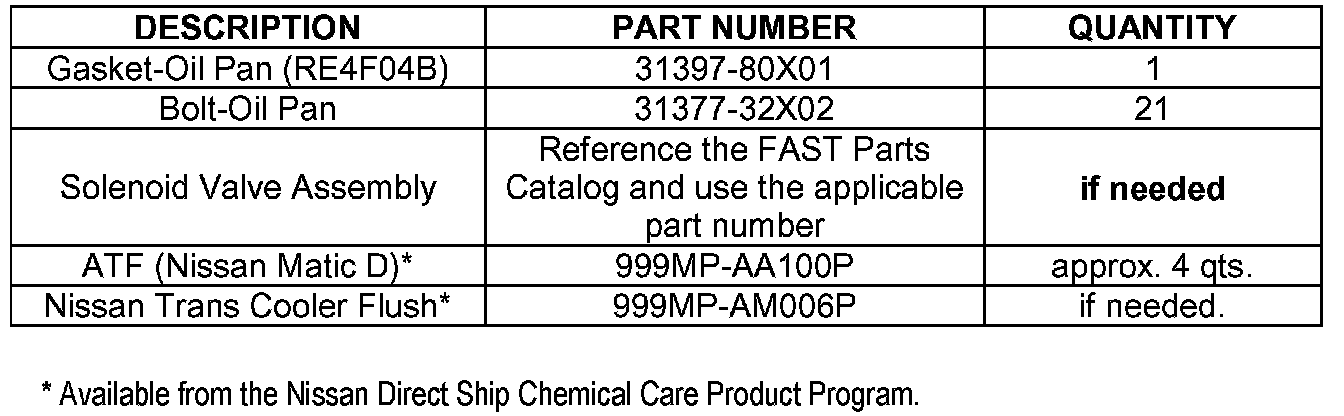

PARTS INFORMATION

CLAIMS INFORMATION





Submit a Primary Failed Part (PP) line claim using the claims coding table.





Disclaimer
