Electrical - No Crank/No Start Below 0 Degrees F.
Classification:EL04-034
Reference:
ITB04-045
Date:
September 16, 2004
2002-2004 I35; ENGINE WILL NOT CRANK (NO START) WITH OUTSIDE TEMPERATURE BELOW 0°F
APPLIED VEHICLES:
2002 - 2004 I35 (CA33)
IF YOU CONFIRM:
A No Crank" (starter doesn't work) incident under all of the following conditions:
1. The vehicle sat for several hours (cold soak) with outside temperatures below 0°F (-17°C): and
2. The vehicle was then driven for a short period of time (5-10 minutes); and
3. The engine was then turned OFF for a short time (5-15 minutes); and
4. The starter didn't work (the engine would not crank) when a restart was attempted.
NOTE:
This TSB applies only if all of the above occurred.
ACTION:

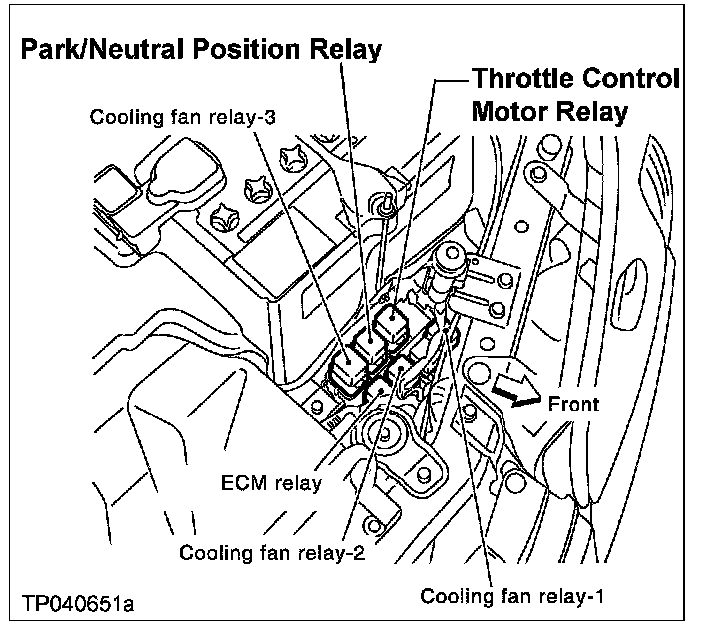

Replace the Park/Neutral Position Relay and the Throttle Control Motor Relay.
NOTE:
The part number for each relay is the same (see Parts Information).

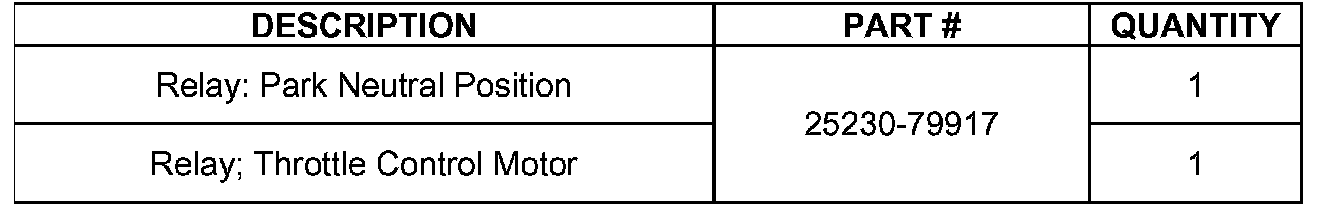

PARTS INFORMATION

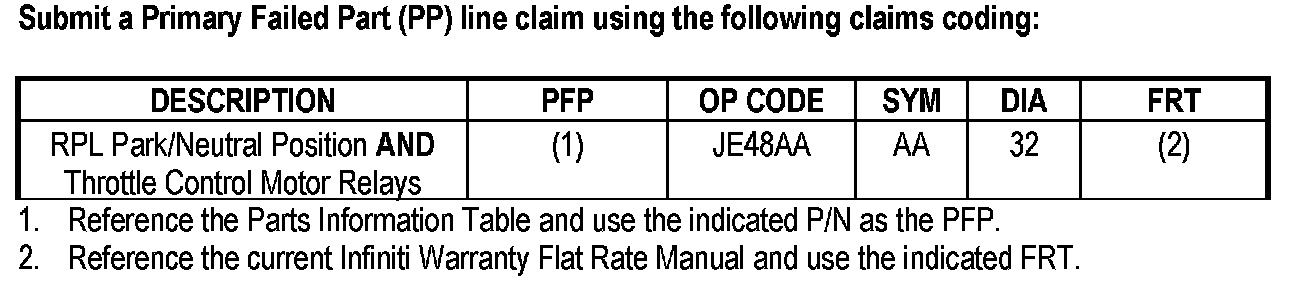

CLAIMS INFORMATION
