Shift Mechanism

Shift Mechanism





CONSTRUCTION





FUNCTION OF CLUTCH AND BRAKE





CLUTCH AND BAND CHART

POWER TRANSMISSION
P and N Positions





^ P position
Similar to the N position, the clutches do not operate. The parking pawl engages with the parking gear to mechanically hold the output shaft so that the power train is locked.
^ N position
Power from the input shaft is not transmitted to the output shaft because the clutches do not operate.

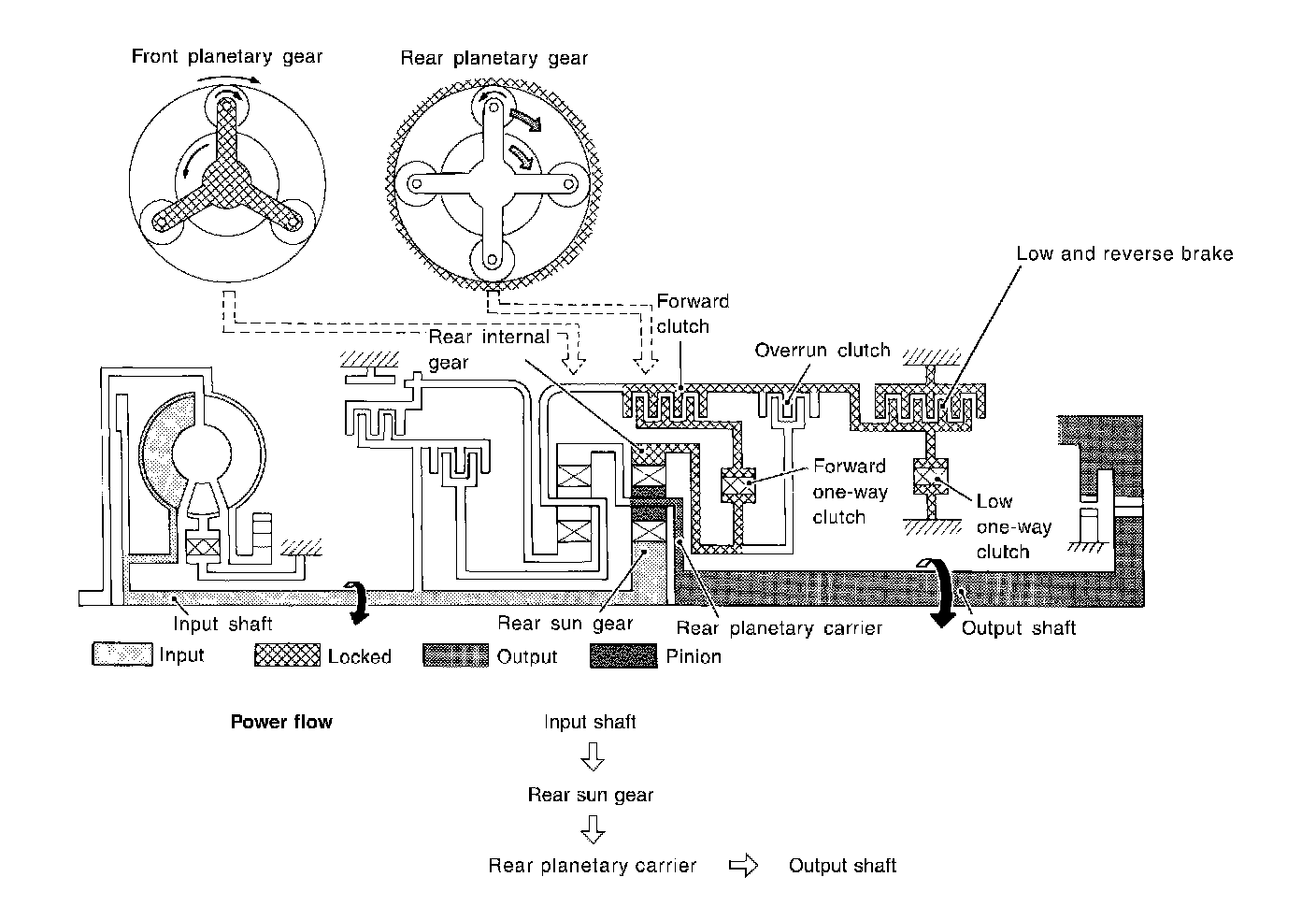

1(1) Position

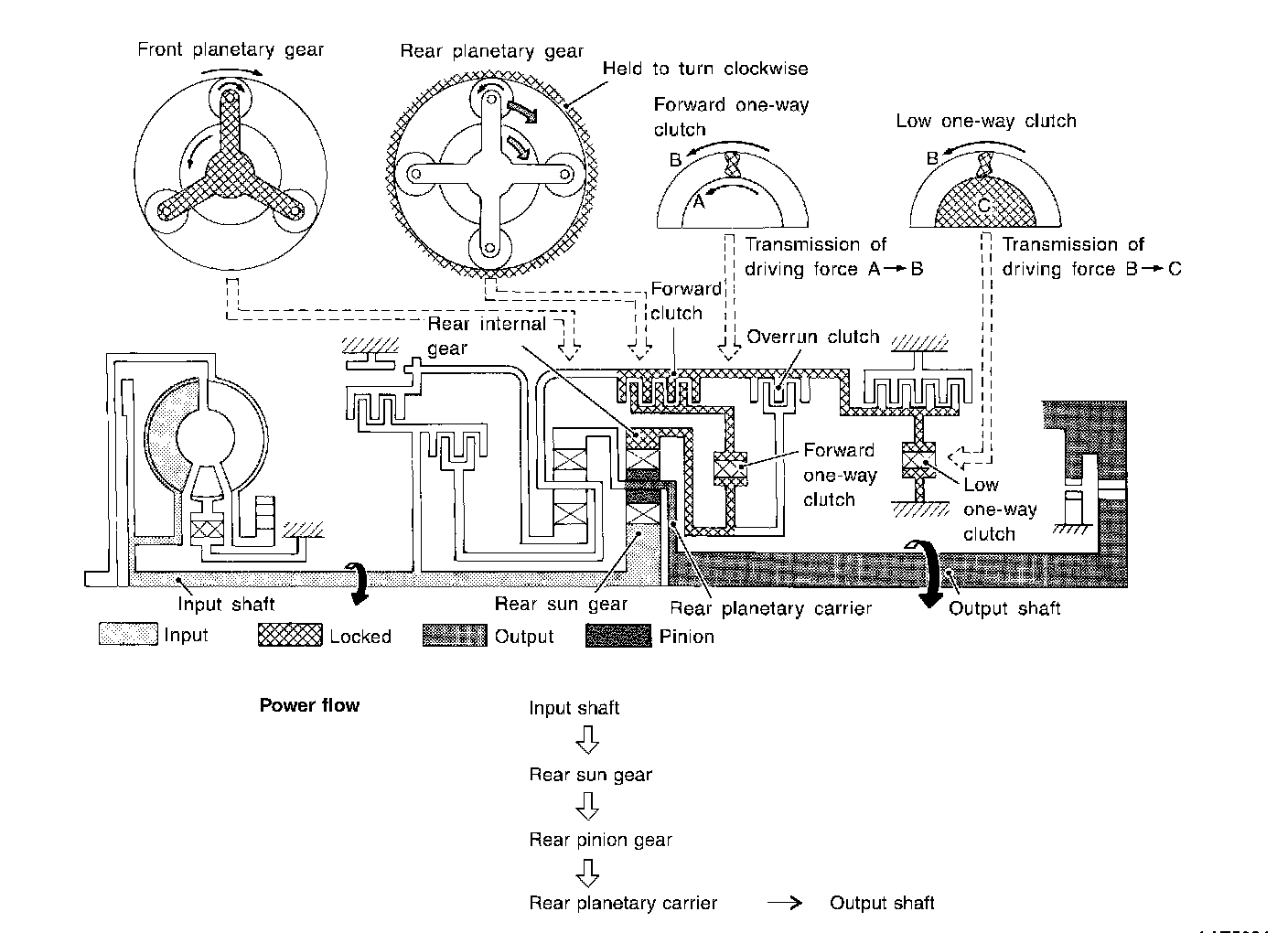

D1 and 2(1) Positions

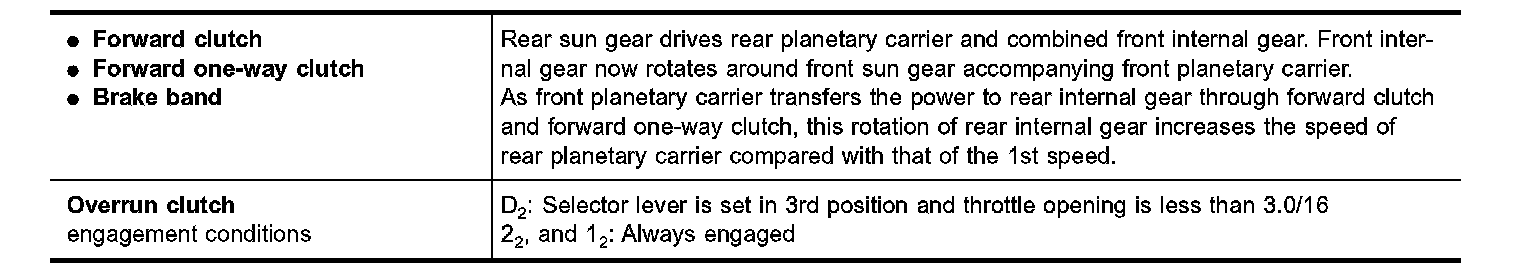

D2, 2(2) and 1(2) Positions

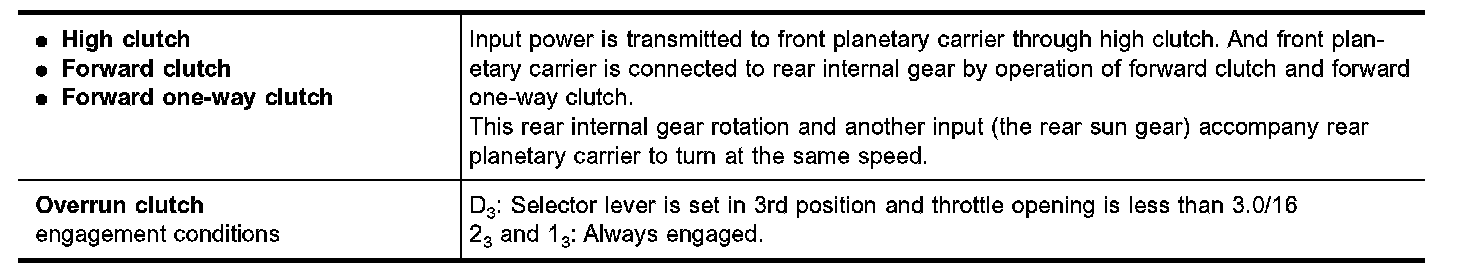

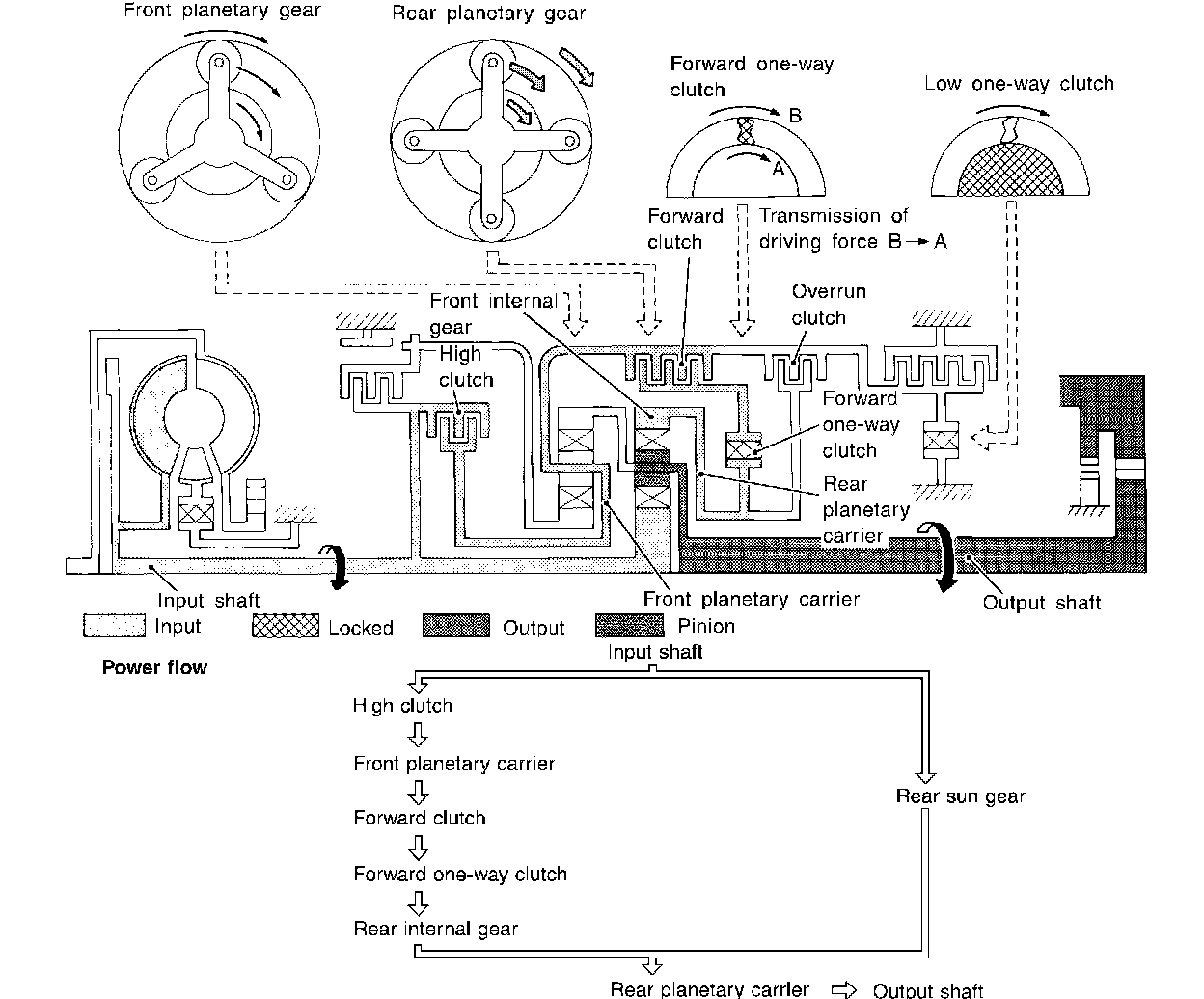

D3, 2(3) and 1(3) Position

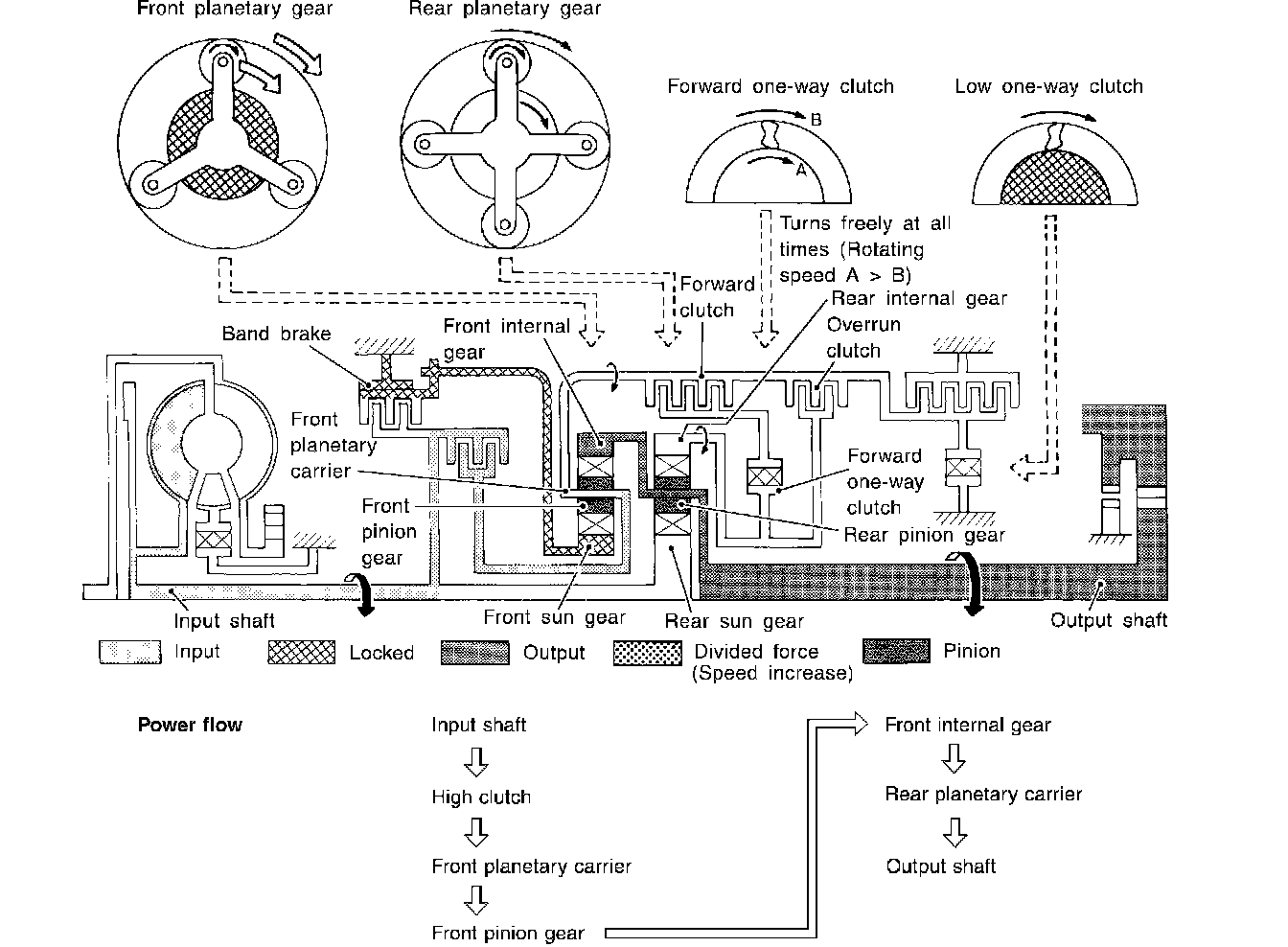

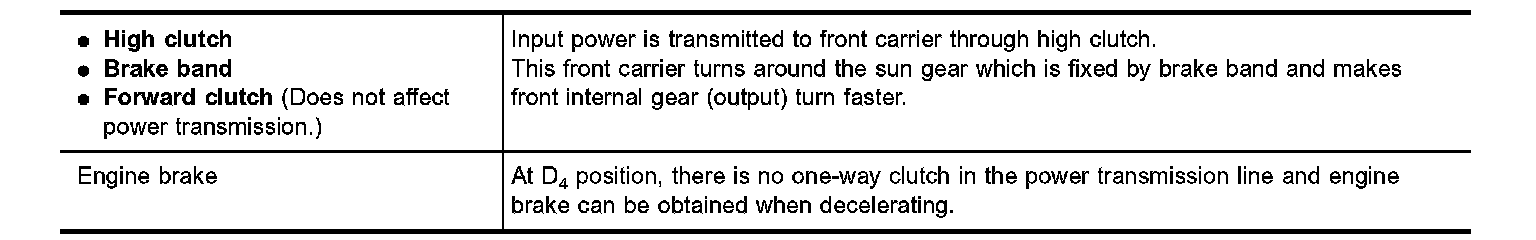

D4 Position

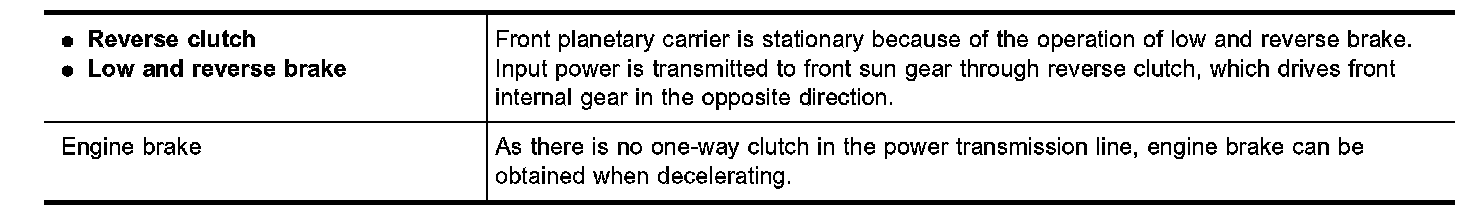

R Position
