Overhaul (Overhaul Diagrams)

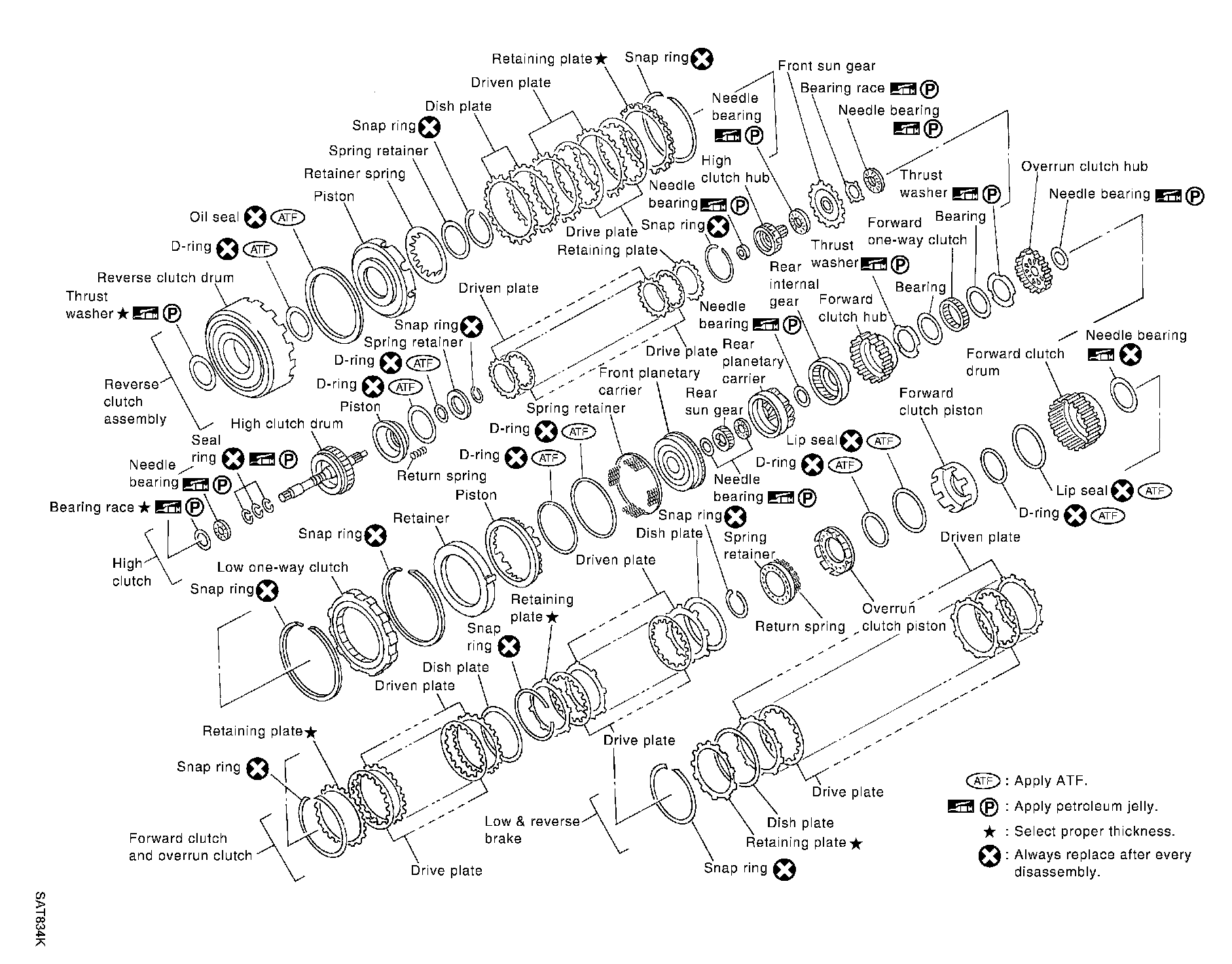

Components

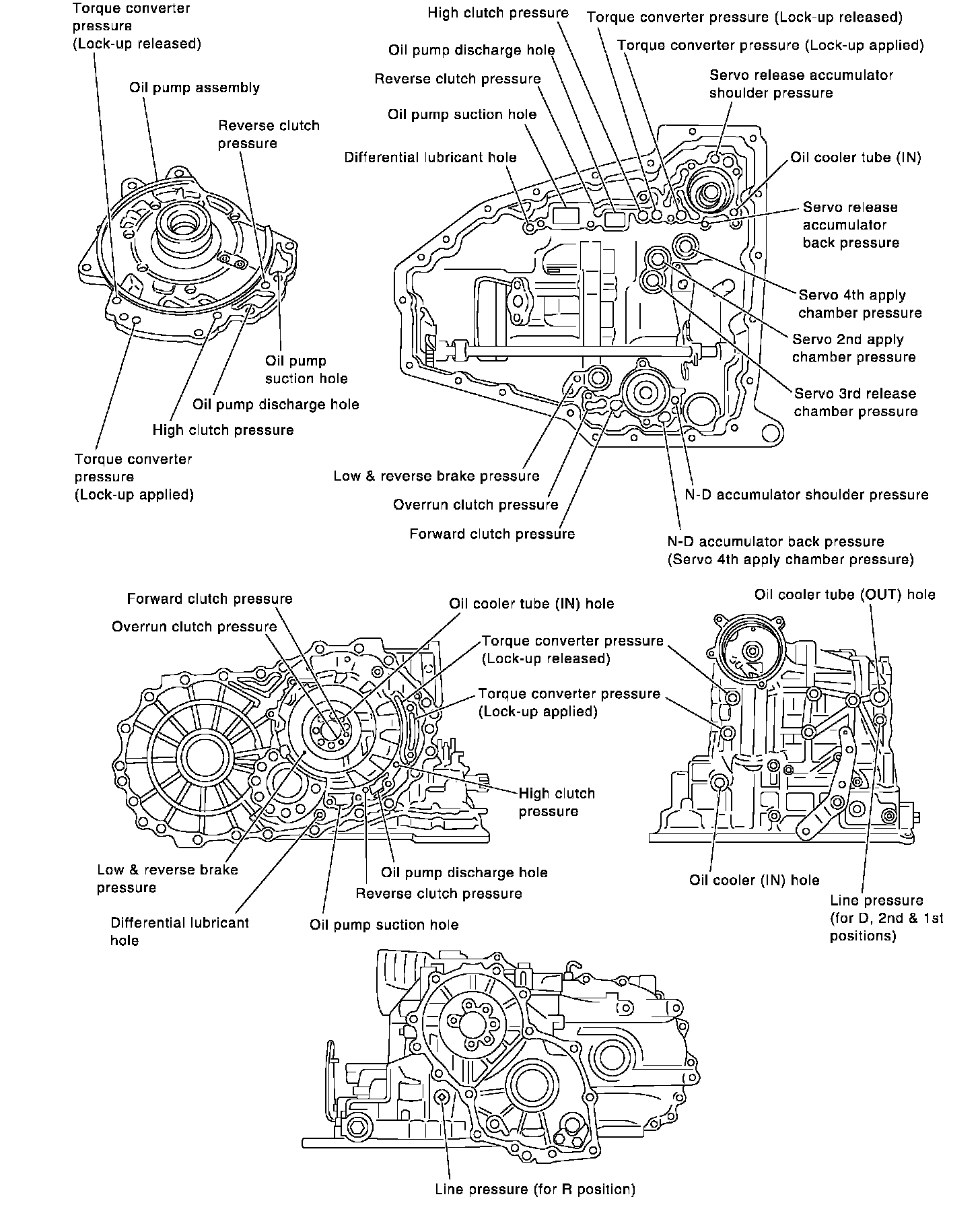

Oil Channel

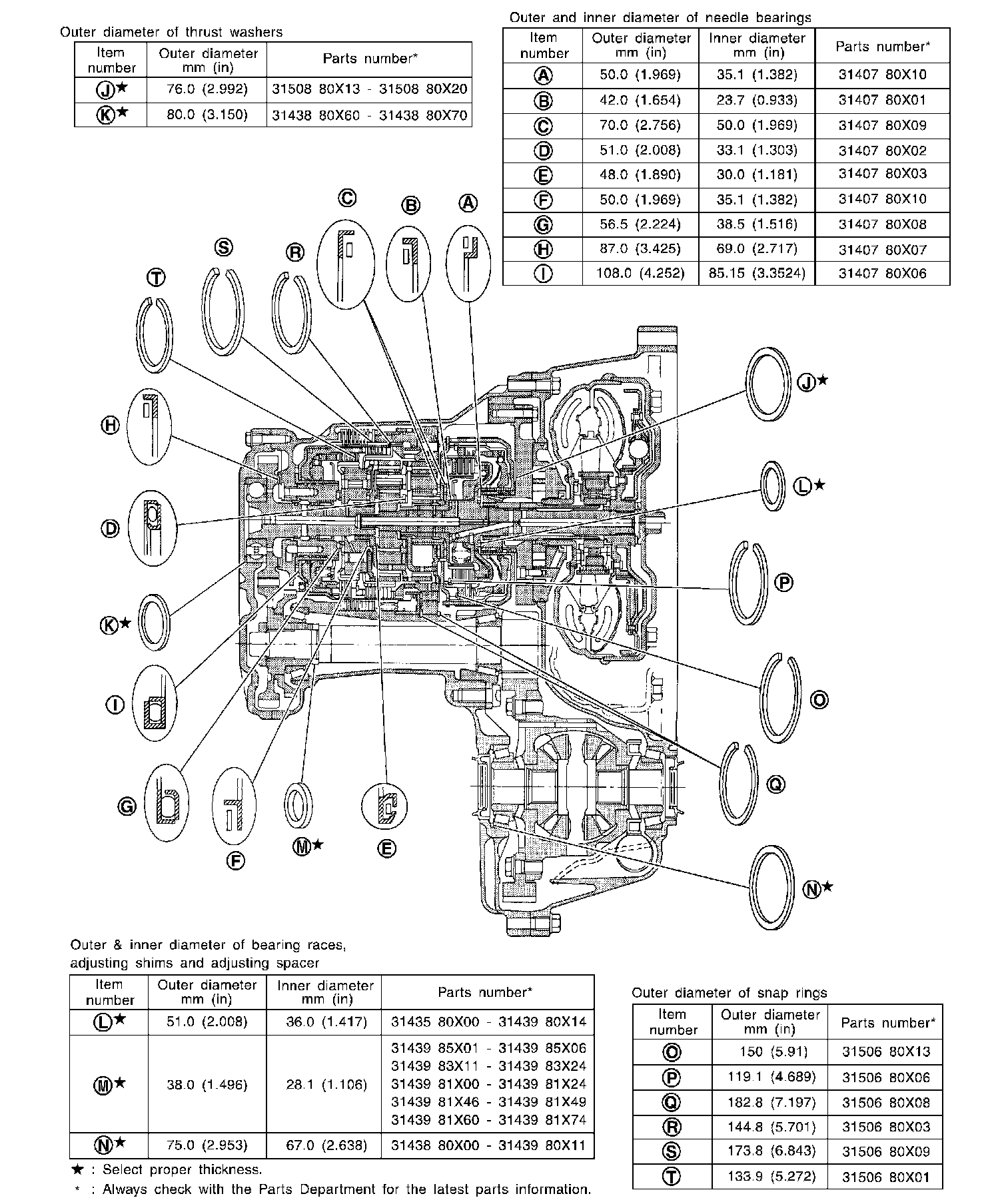

Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings
