Pinout Values and Diagnostic Parameters

TCM Terminals and Reference Value
PREPARATION





^ Measure voltage between each terminal and terminal 25 or 48 by following "TCM INSPECTION TABLE".





TCM HARNESS CONNECTOR TERMINAL LAYOUT

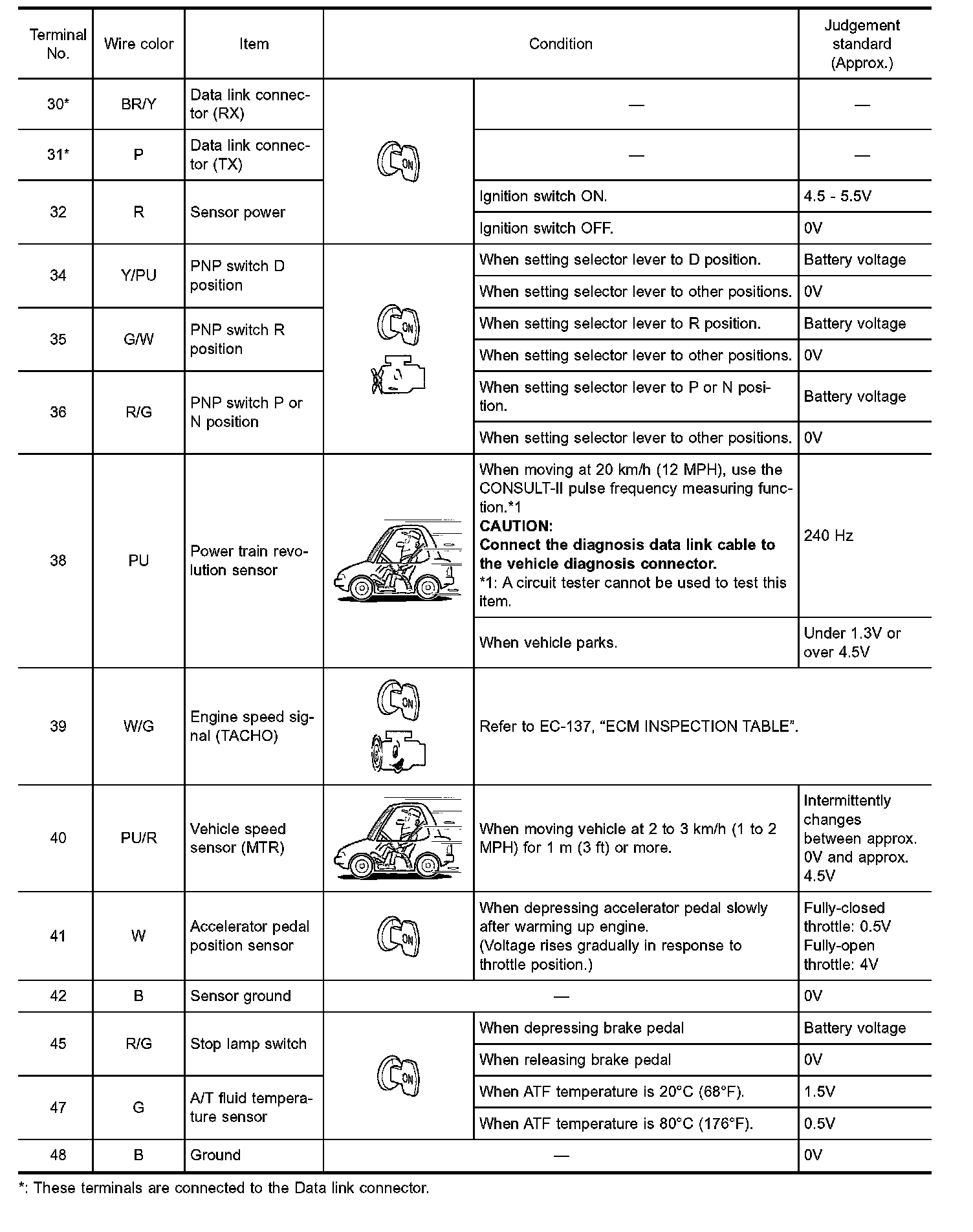

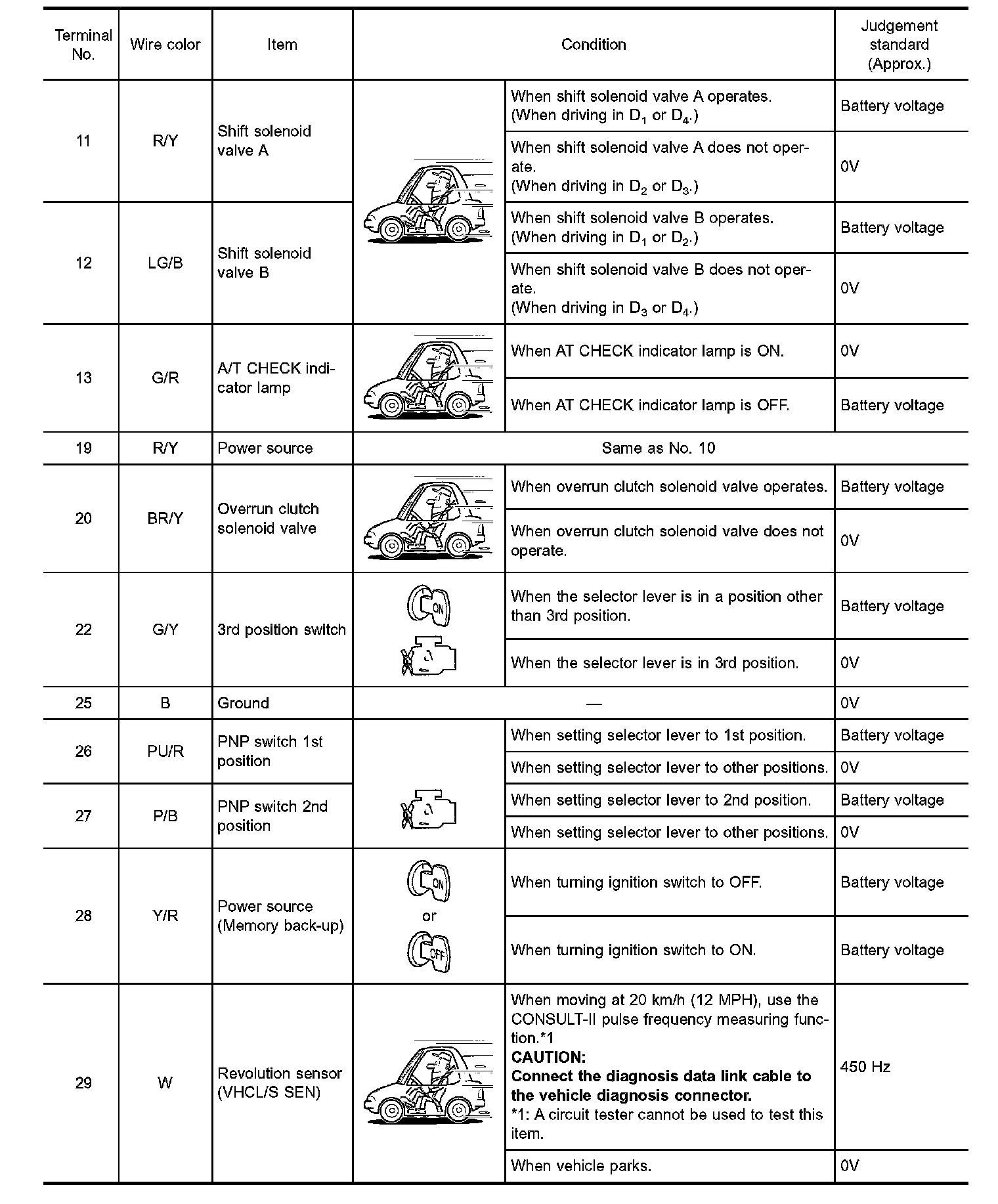

TCM INSPECTION TABLE
