Reading and Clearing Diagnostic Trouble Codes

CONSULT-II Inspection Procedure

"REAR DEFOGGER"




1. Turn ignition switch "OFF".
2. Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.




3. Turn ignition switch "ON".
4. Touch "START (NISSAN BASED VHCL)".




5. Touch "SMART ENTRANCE".
If "SMART ENTRANCE" is not indicated, go to CONSULT-II Checking System CONSULT-II Checking System

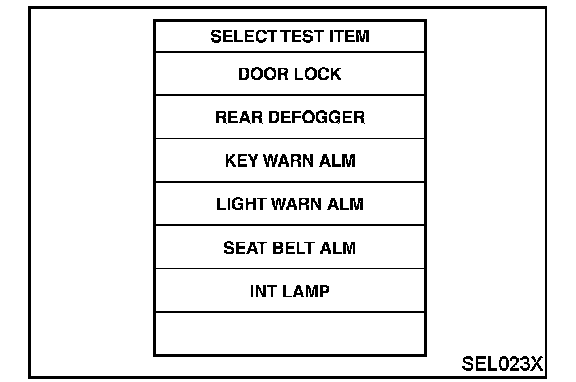

6. Touch "REAR DEFOGGER".




7. Select diagnosis mode. "DATA MONITOR" and "ACTIVE TEST" are available.
