Component Tests and General Diagnostics

Encoder And Limit Switch Check (Steps 1 - 3):

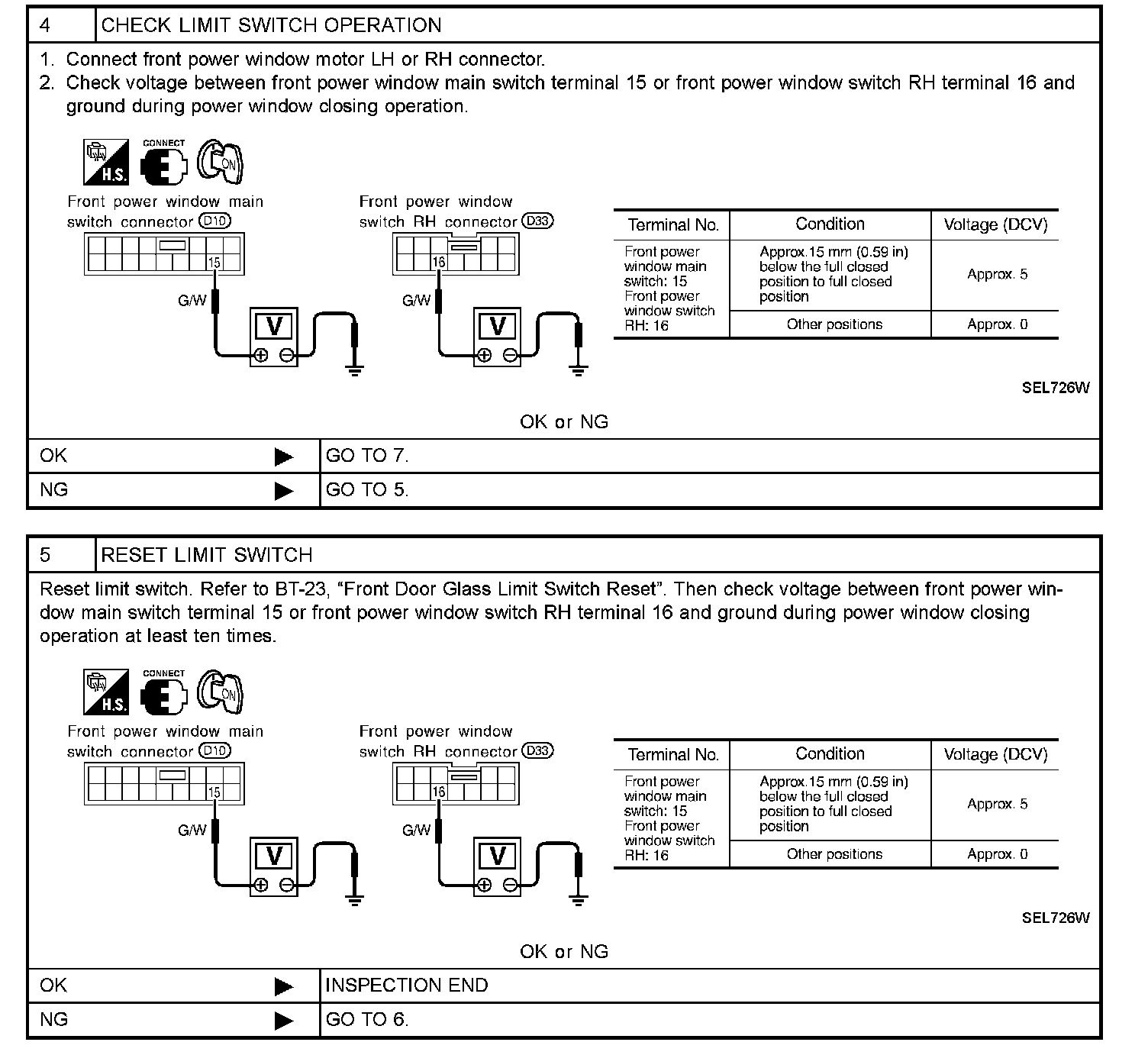

Encoder And Limit Switch Check (Steps 4 - 5):

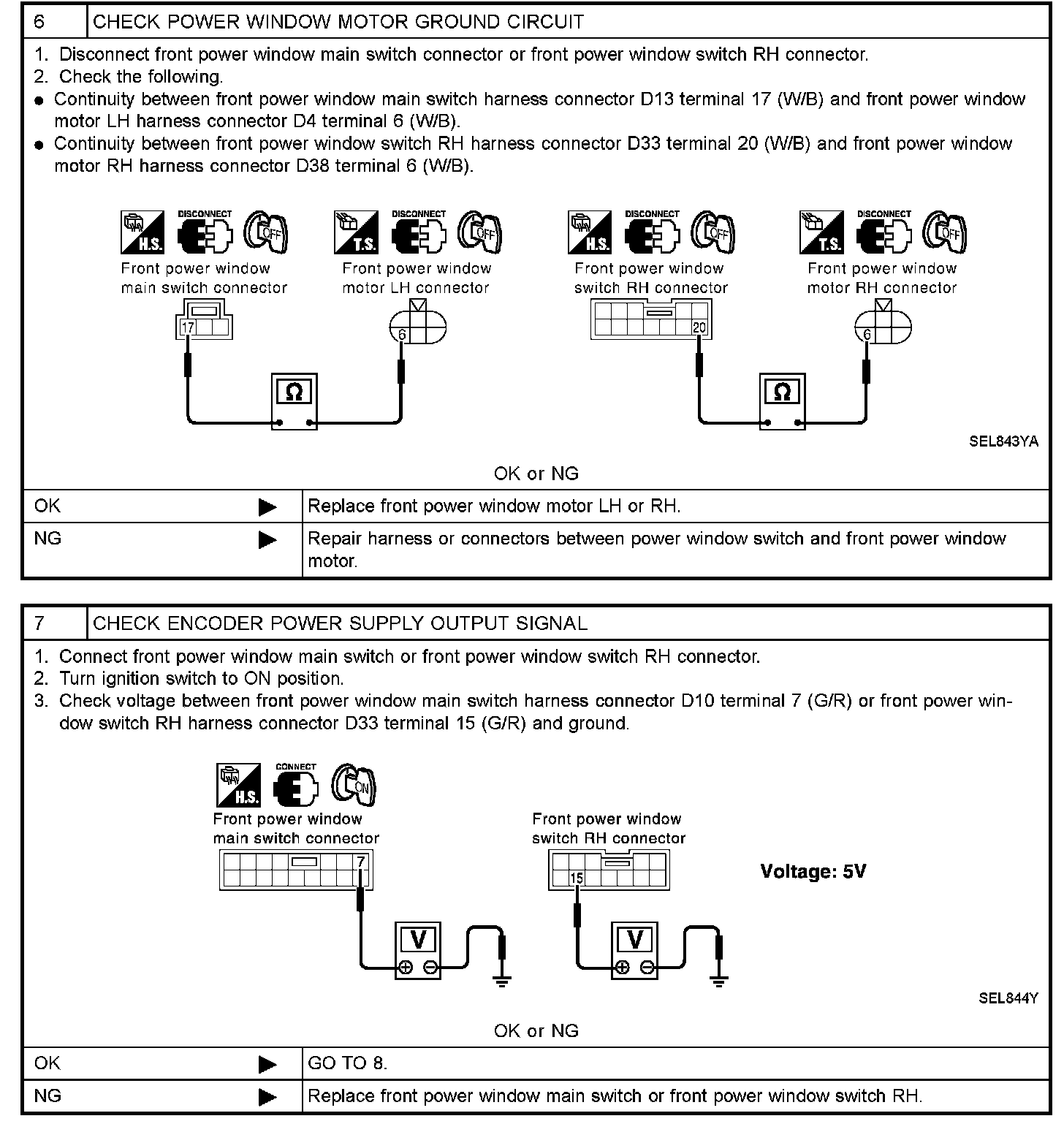

Encoder And Limit Switch Check (Steps 6 - 7):

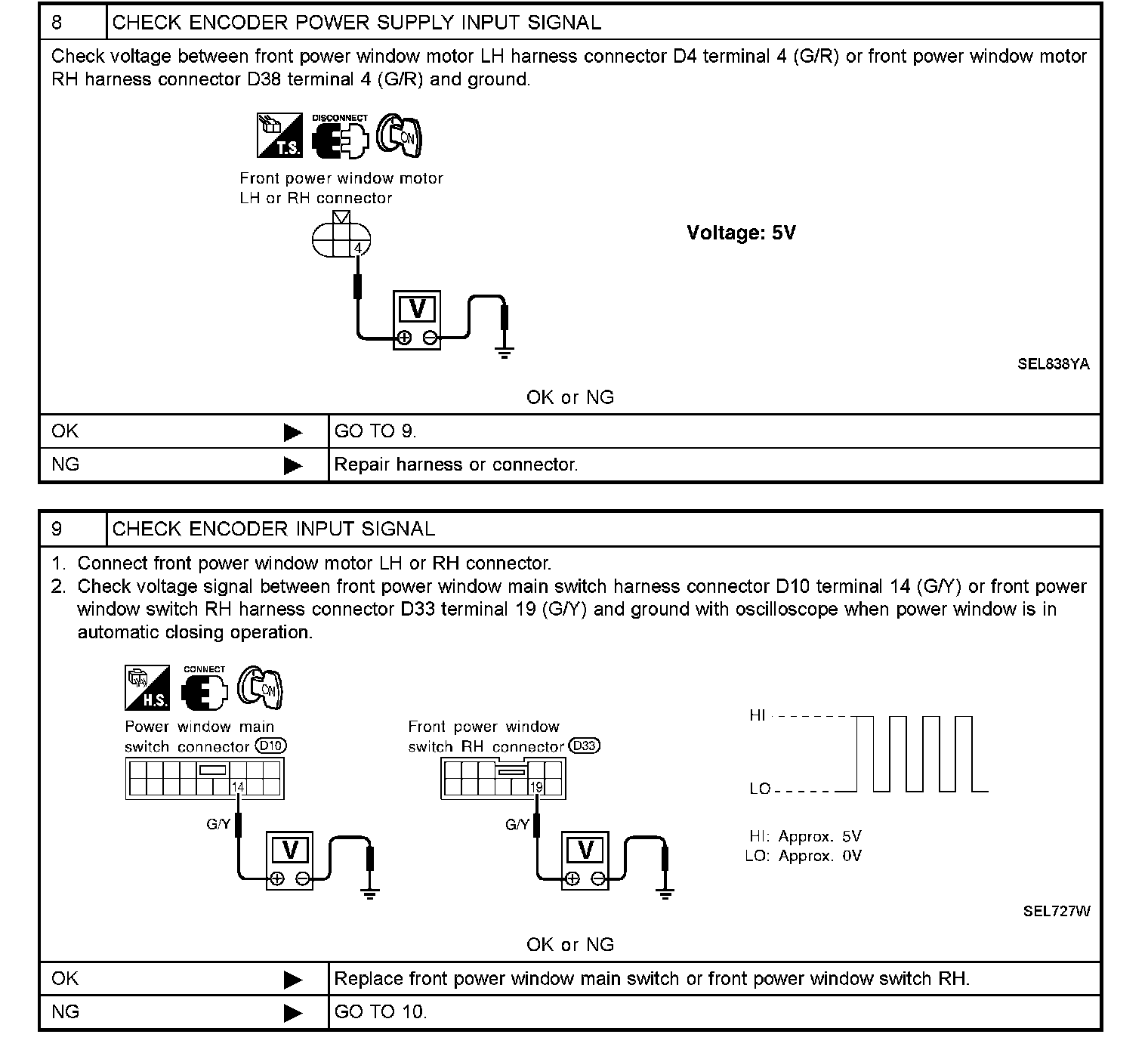

Encoder And Limit Switch Check (Steps 8 - 9):

Encoder And Limit Switch Check (Step 10):
