Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2004
>>
Q45 V8-4.5L (VK45DE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Locations
>>
Electronic Key System
Electronic Key System

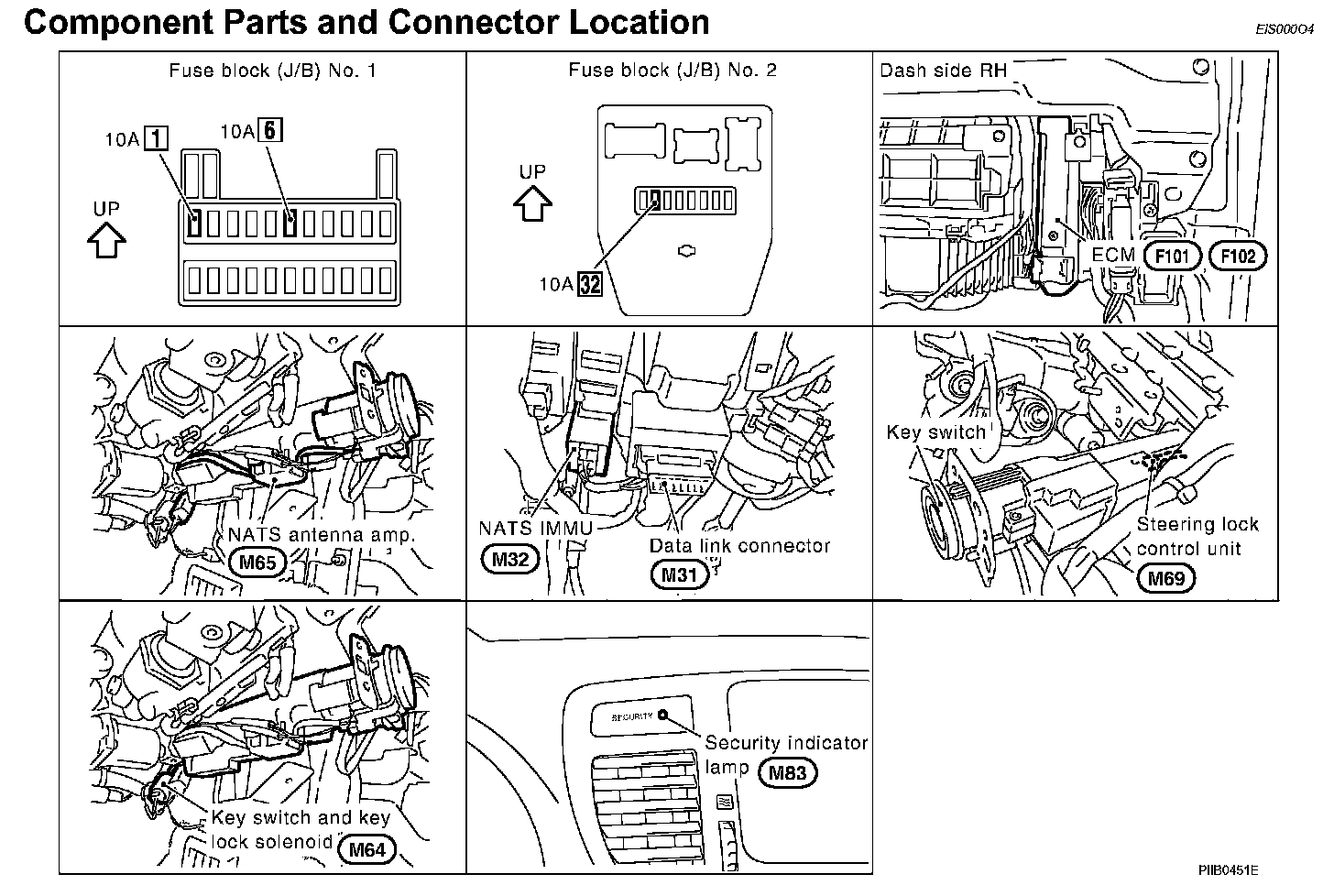

Component Parts And Connector Location:

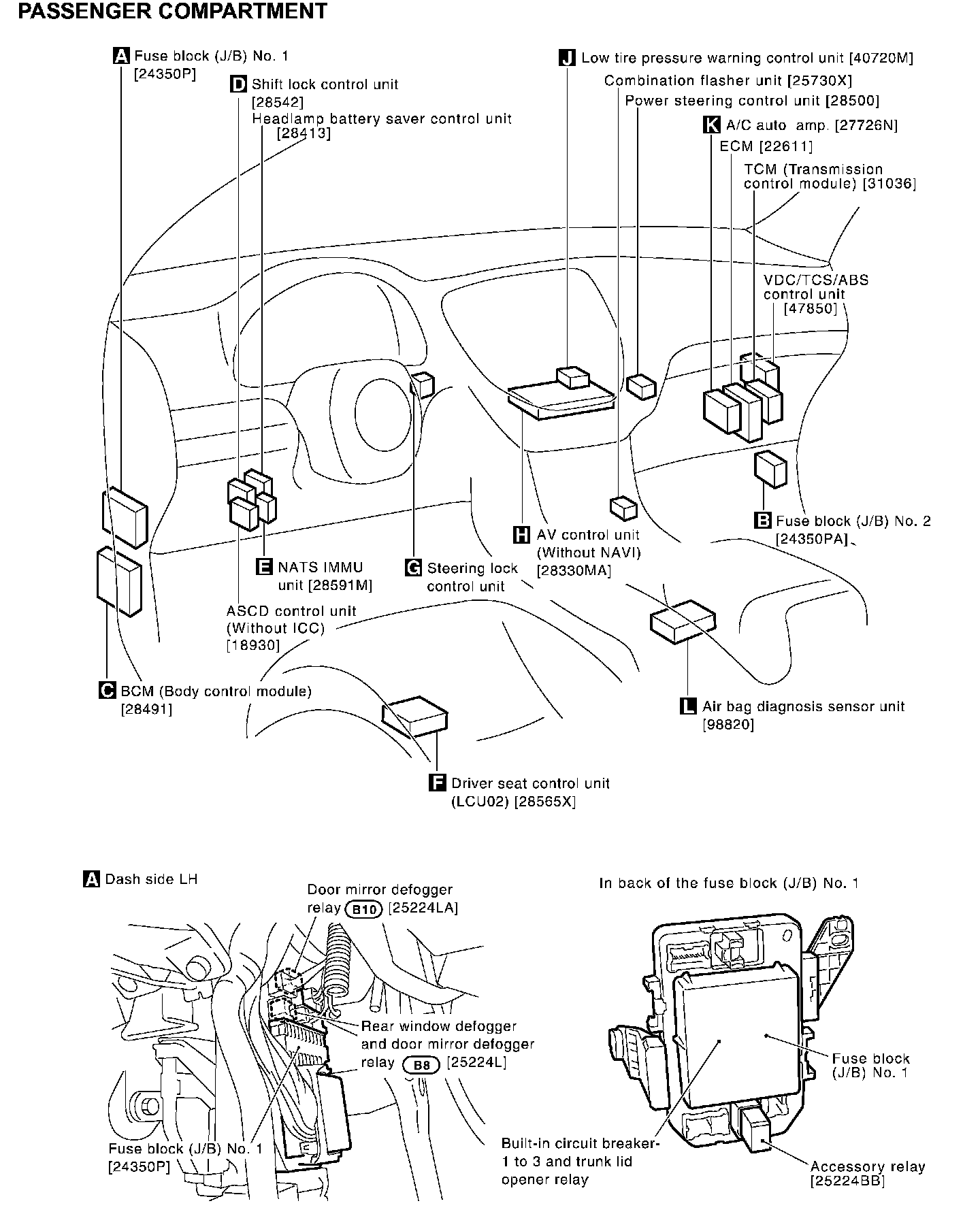

Passenger Compartment Electrical Units Locations:

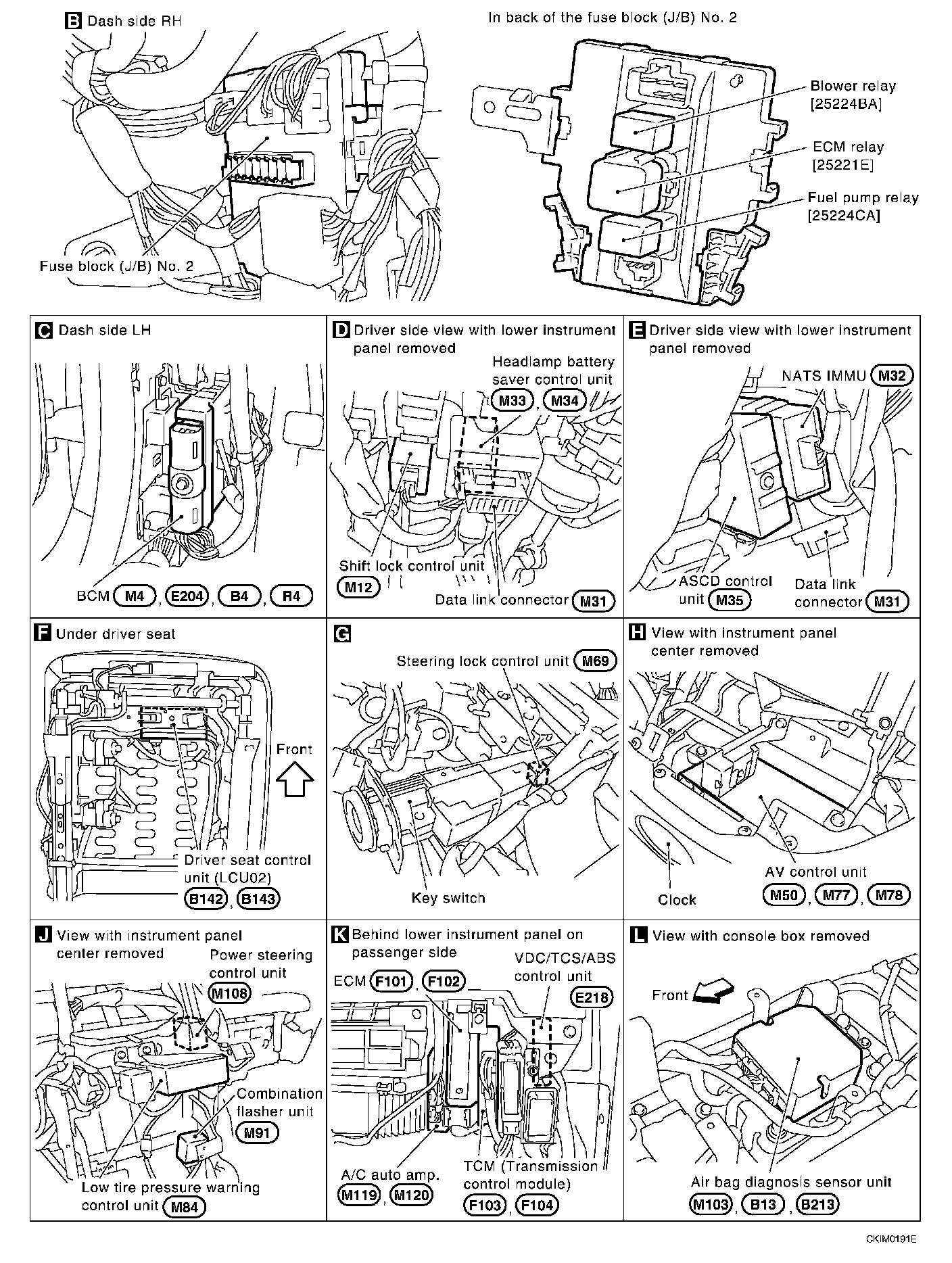

Passenger Compartment Electrical Units Locations:
