Rear Lifting Switch Circuit Inspection
Rear Lifting Switch Circuit Inspection
Rear Lifting Switch Circuit Inspection (Steps 1 - 2):

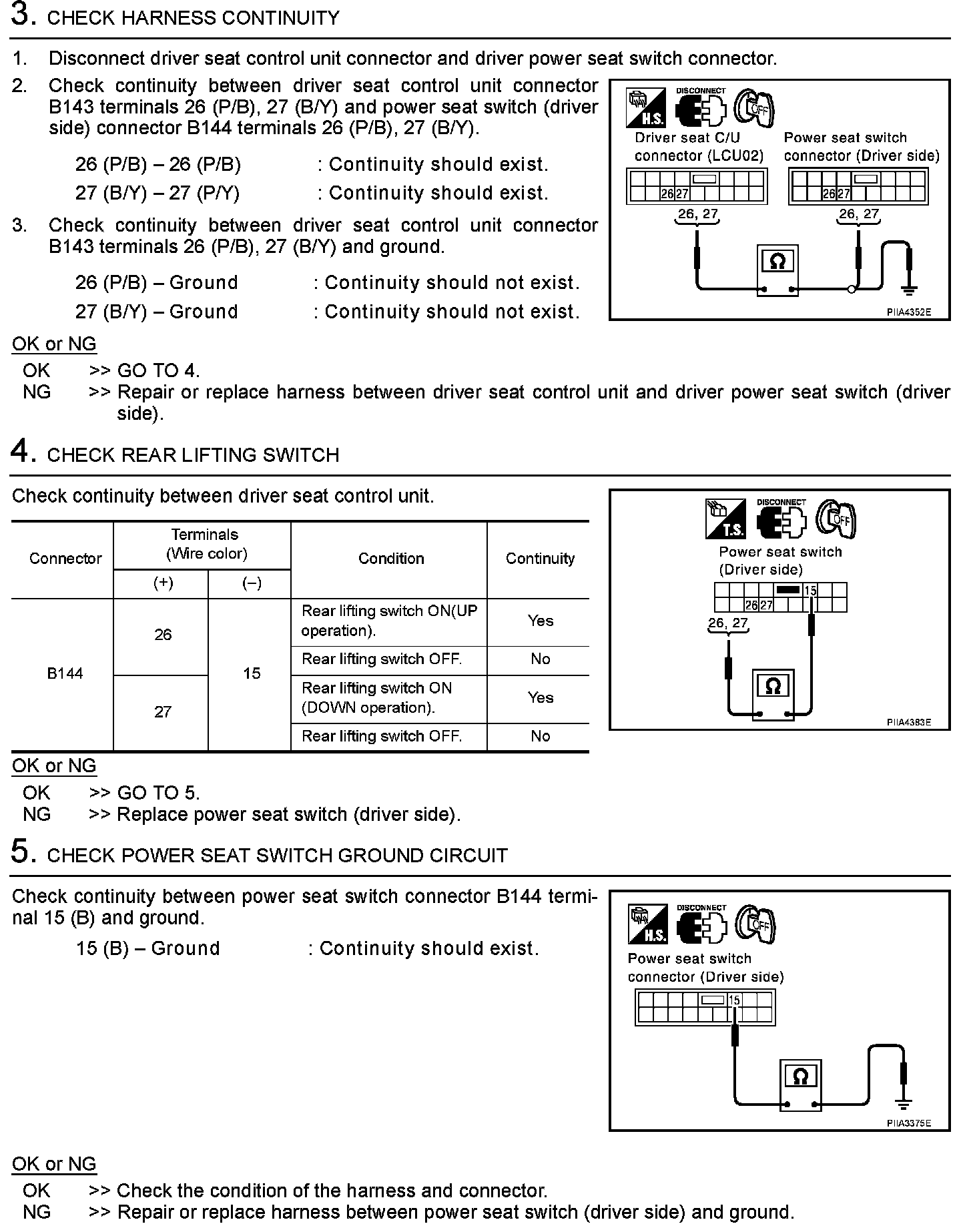

Rear Lifting Switch Circuit Inspection (Steps 3 - 5):
