Removal and Installation of AV and NAVI Control Unit
Removal and Installation of AV and NAVI Control UnitREMOVAL
1. Refer to "Precautions for AV and NAVI Control Unit Replacement". Take a note of necessary items.
2. Remove trunk room trim. Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER".

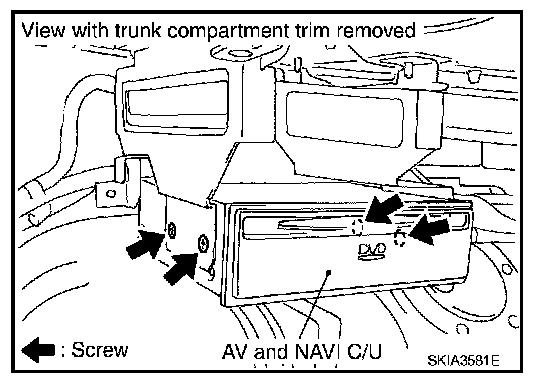

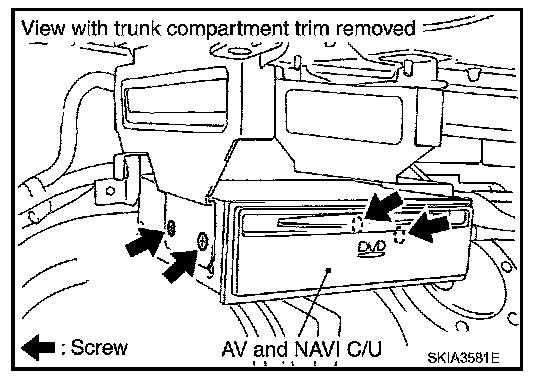

3. Remove screws and remove the AV and NAVI control unit.
INSTALLATION
Install in the reverse order of removal.
