Pinout Values and Diagnostic Parameters

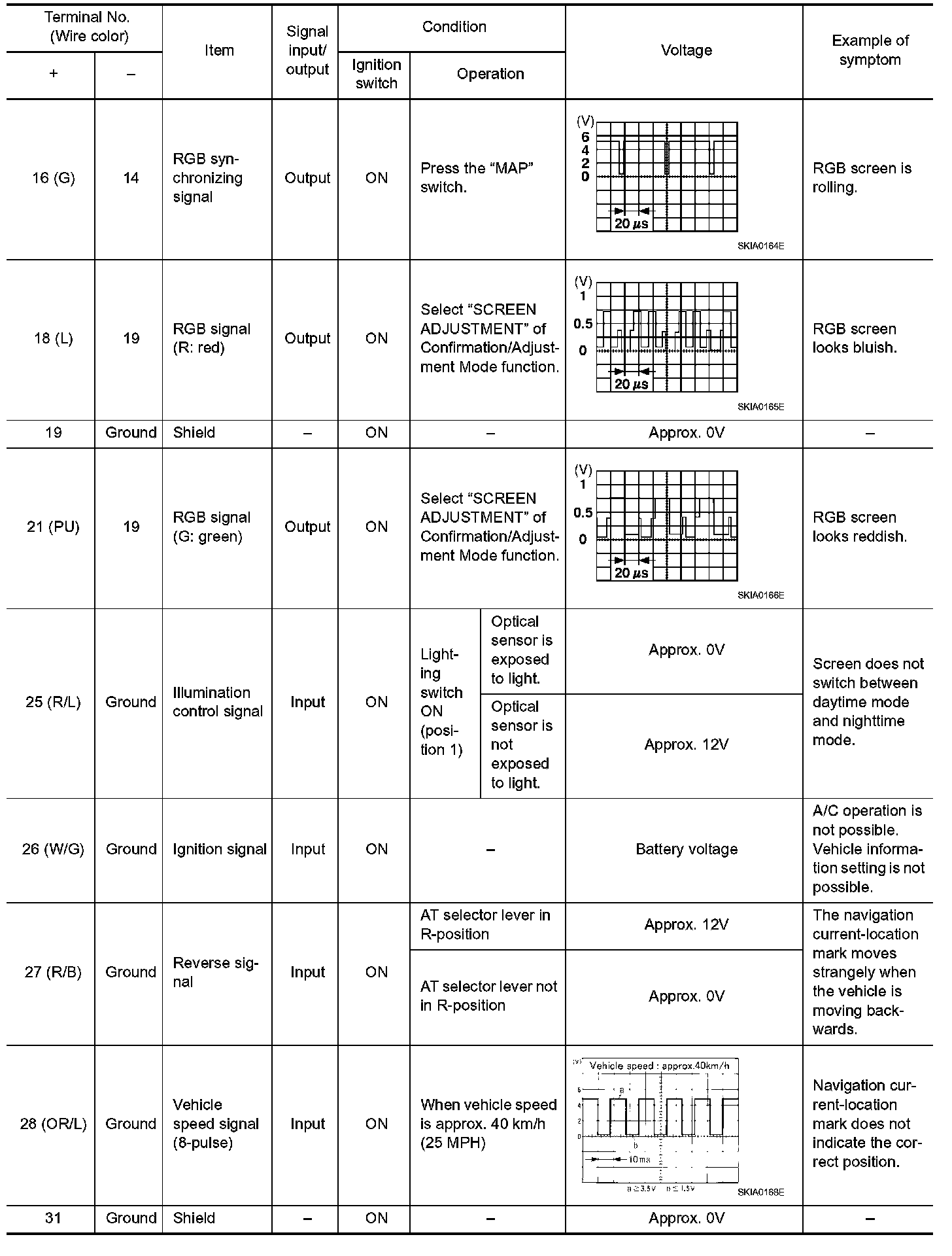

Terminals And Reference Value For AV And NAVI Control Unit Part 1:

Terminals And Reference Value For AV And NAVI Control Unit Part 2:

Terminals And Reference Value For AV And NAVI Control Unit Part 3:

Terminals And Reference Value For AV And NAVI Control Unit Part 4:
