Removal and Installation of Audiopilot(TM) Microphone

Removal and Installation of AudioPilot((TM)) Microphone

REMOVAL




1. Remove cluster lid C. Refer to "(F) Cluster Lid C".
2. Remove clock.
3. Disconnect AudioPilot(TM) microphone connector.

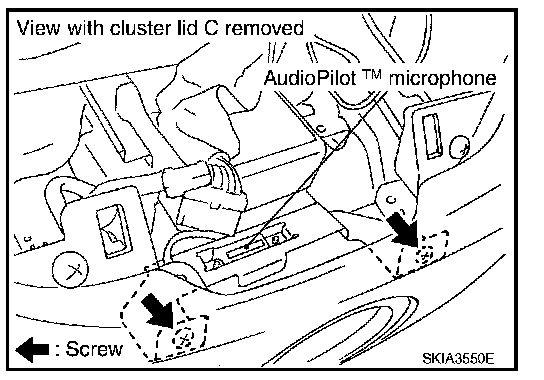

4. Remove screws (2) and remove AudioPilot(TM) microphone.

INSTALLATION
Install in the reverse order of removal.
