Manual Seat (Bench Seat)
REAR SEATRemoval and Installation

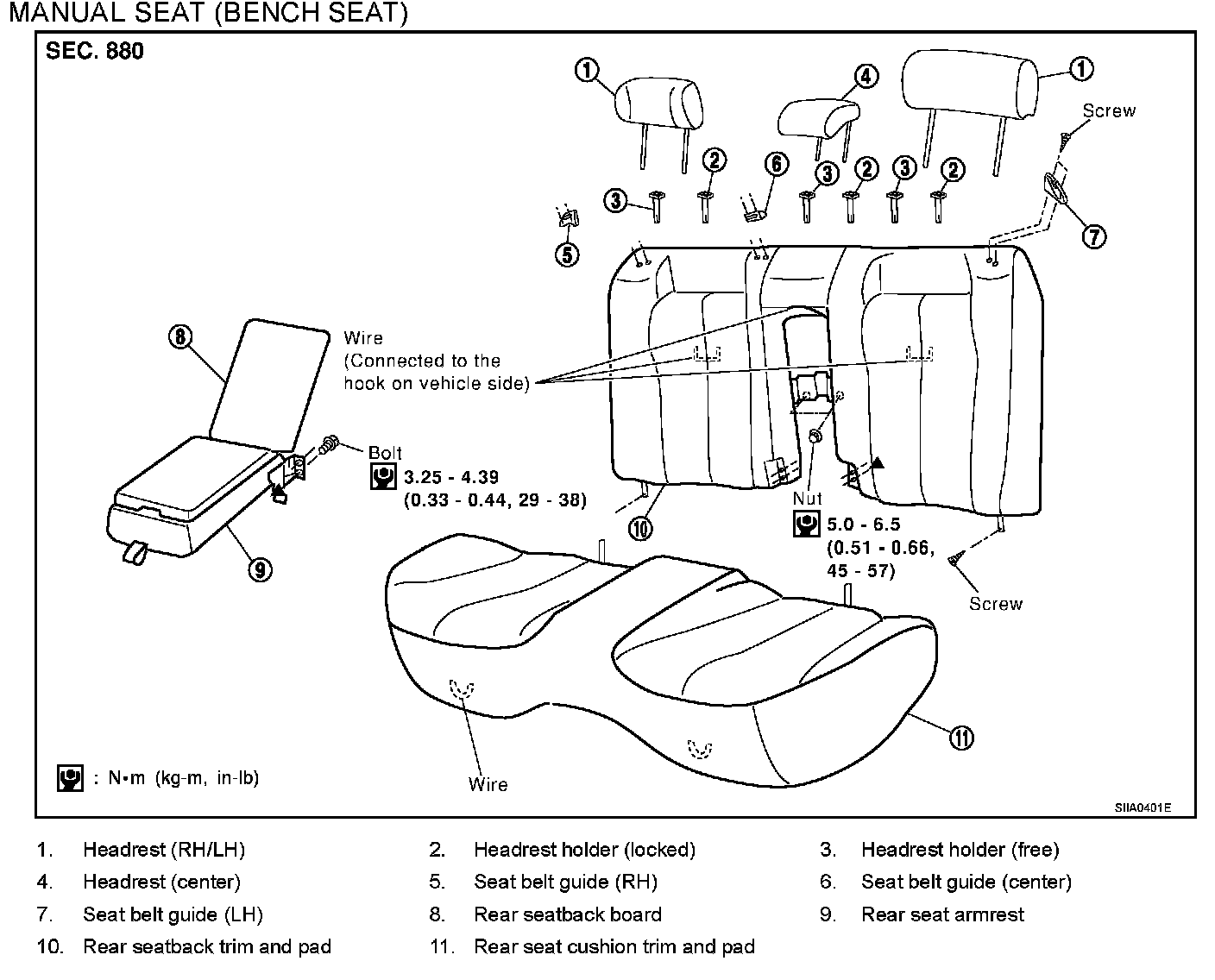

MANUAL SEAT (BENCH SEAT)
REMOVAL OF MANUAL SEAT (BENCH SEAT)
1. Pull the lock at the front bottom of the seat cushion forward and pull the seat cushion upward to release the wire from the plastic hook, then pull the seat cushion forward to remove.
2. Partially remove the seatback board to disconnect the harness connector and remove the nuts on the sunshade switch.
3. Remove the RH and LH screws on the seatback.
4. Slide the seatback upward to pull off the wire from the vehicle-side hook, and remove the seatback.
5. After removing, remove the hog ring to separate the trim and pad.
INSTALLATION OF MANUAL SEAT (BENCH SEAT)
Install in the reverse order of removal.
