Vacuum Pump: Testing and Inspection

ASCD Pump

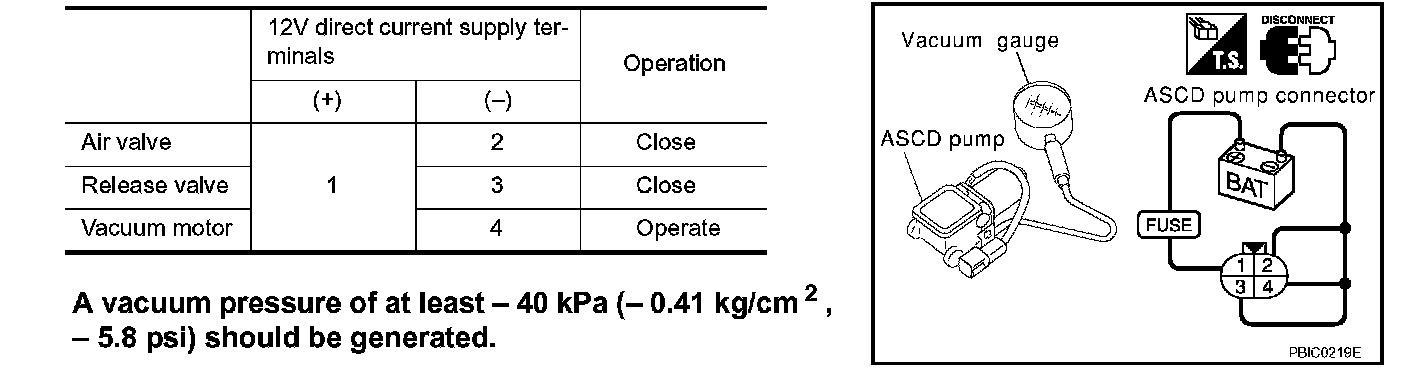

1. Disconnect vacuum hose from ASCD pump and ASCD pump harness connector.
2. If necessary remove ASCD pump.
3. Connect vacuum gauge to ASCD pump.
4. Apply 12 V direct current to ASCD pump and check operation.
