Fuse, Fusible Link and Relay Block (J/B)
Fuse, Fusible Link and Relay Block (J/B)

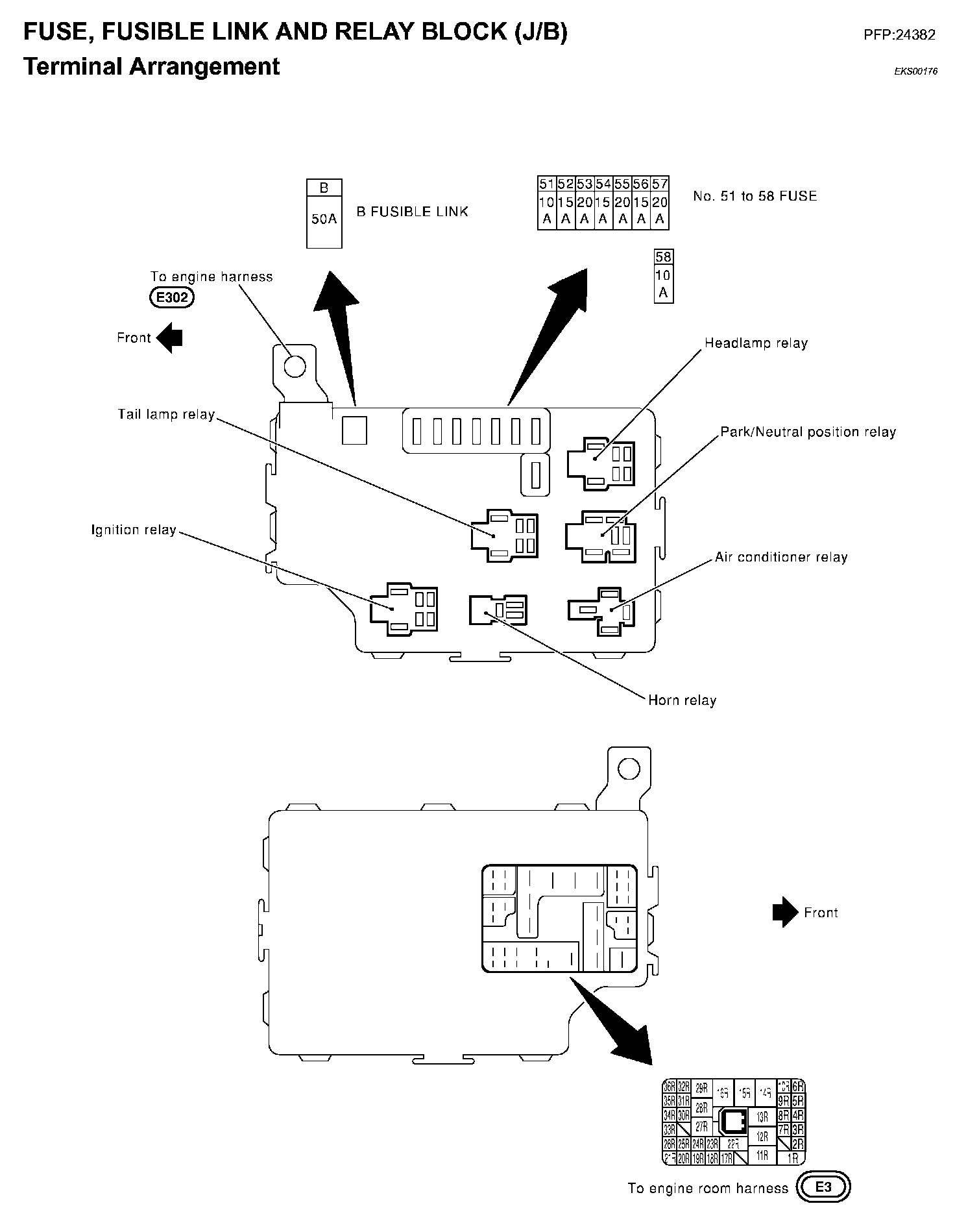

Fuse, Fusible Link And Relay Block (J/B) - Terminal Arrangement:
