BRC-VDC

BRC-VDC-01:

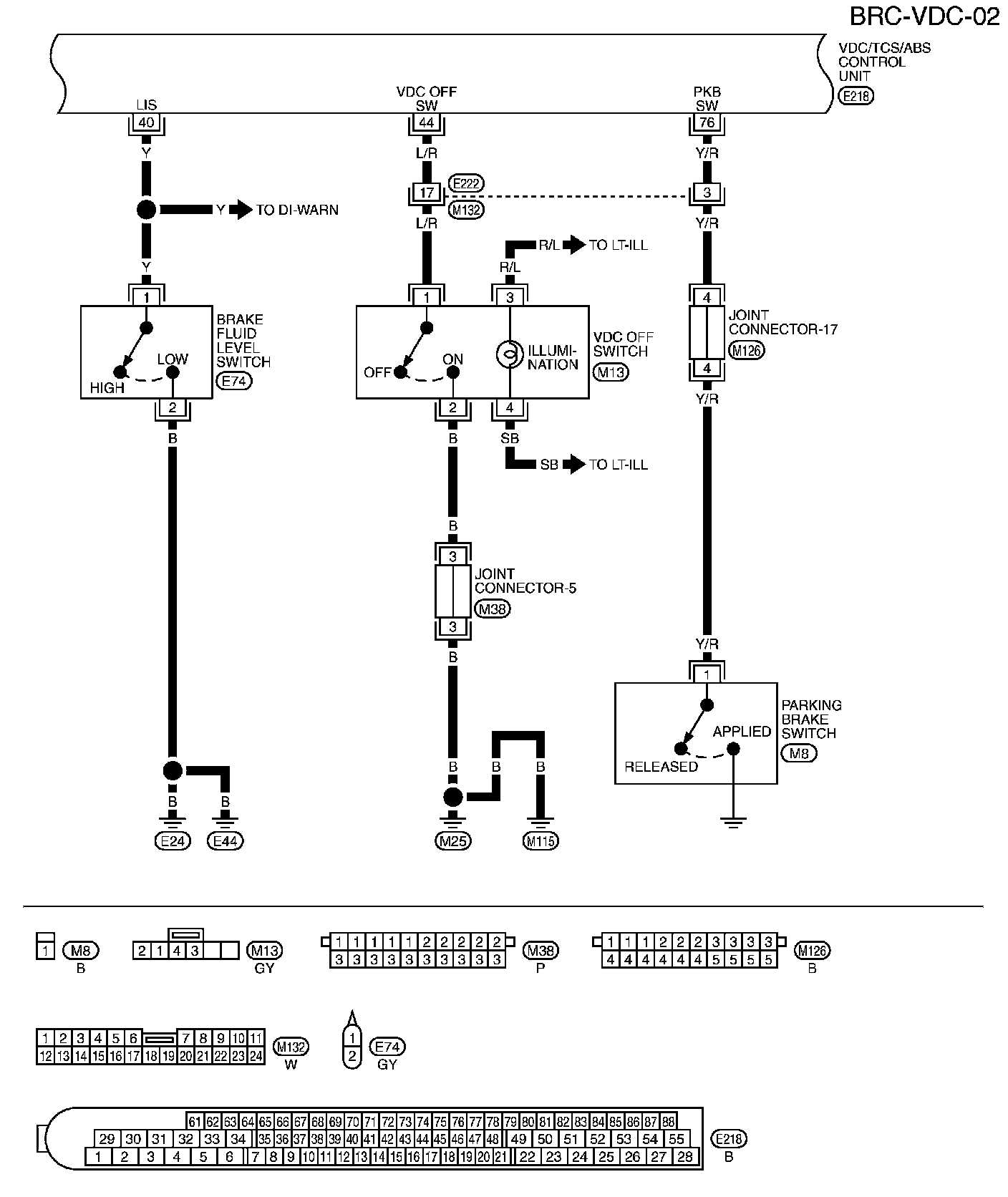

BRC-VDC-02:

BRC-VDC-03:

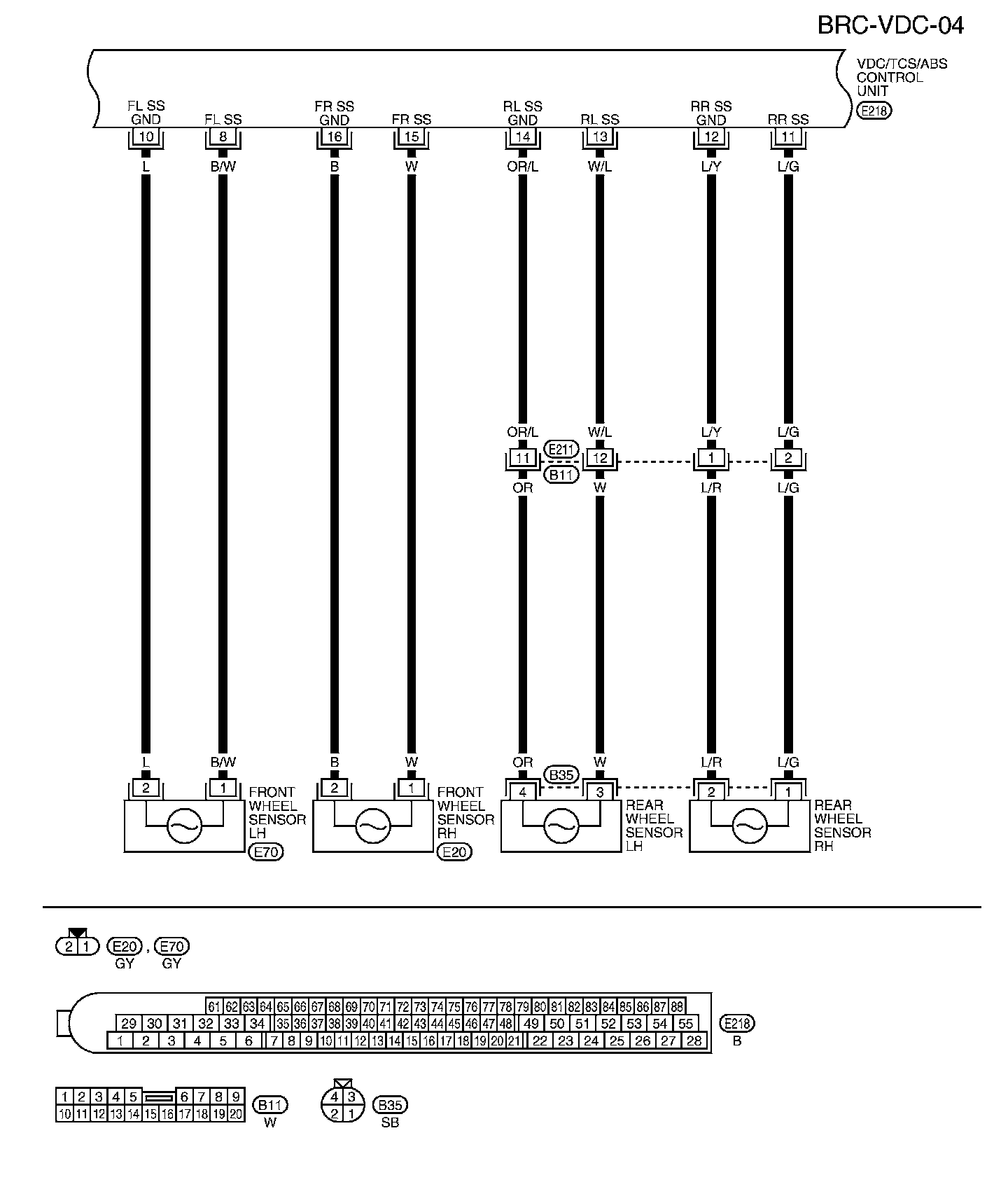

BRC-VDC-04:

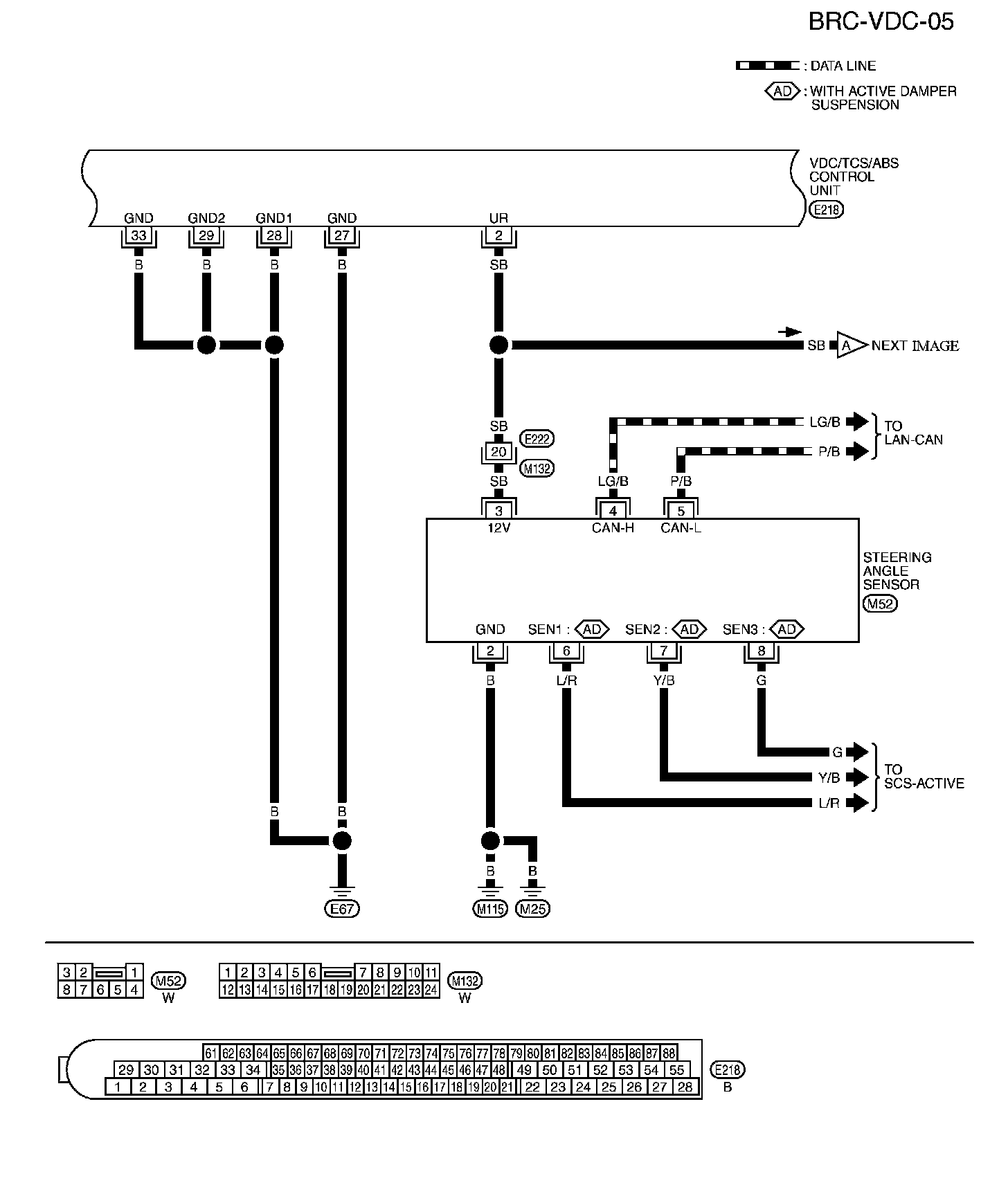

BRC-VDC-05:

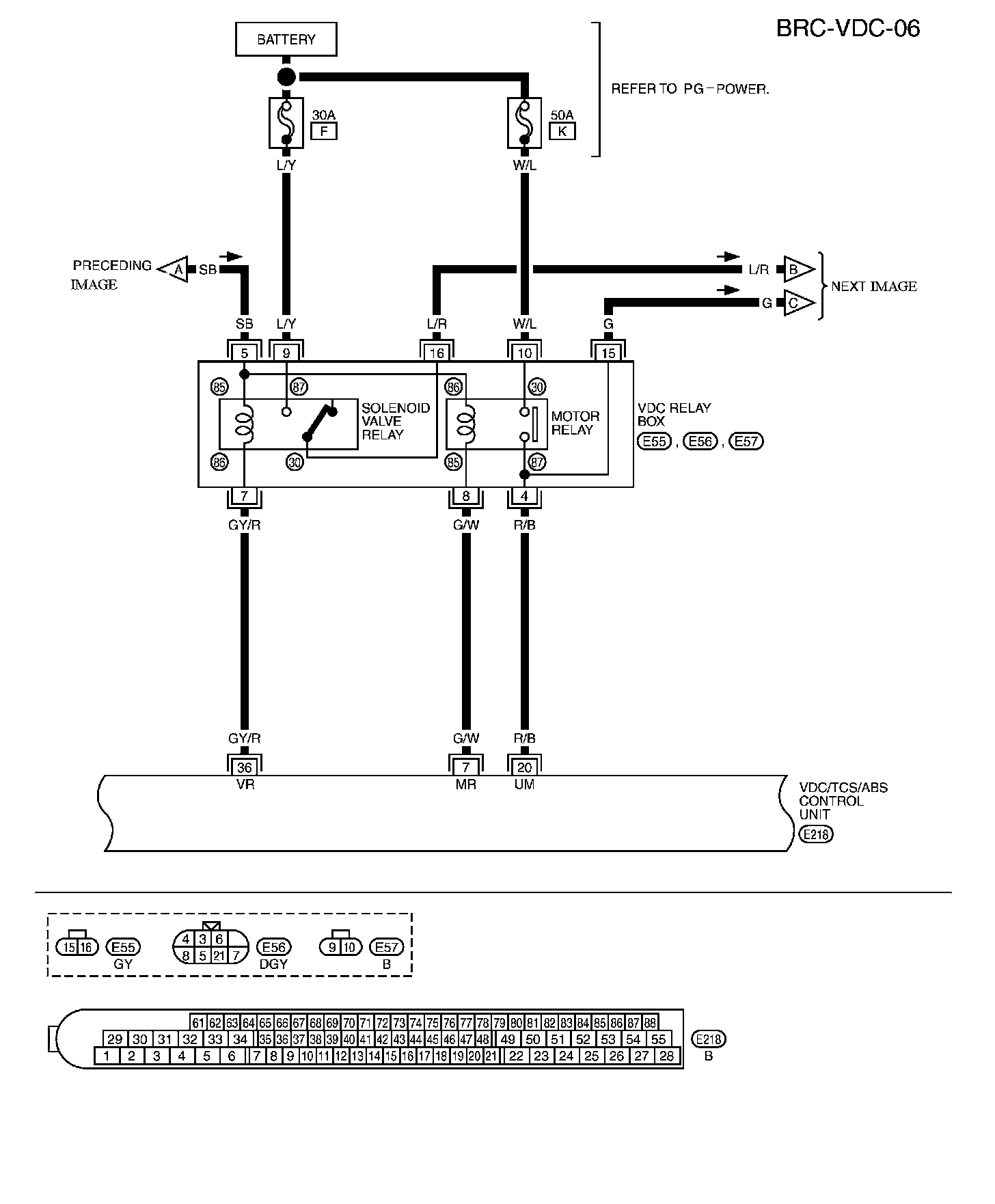

BRC-VDC-06:

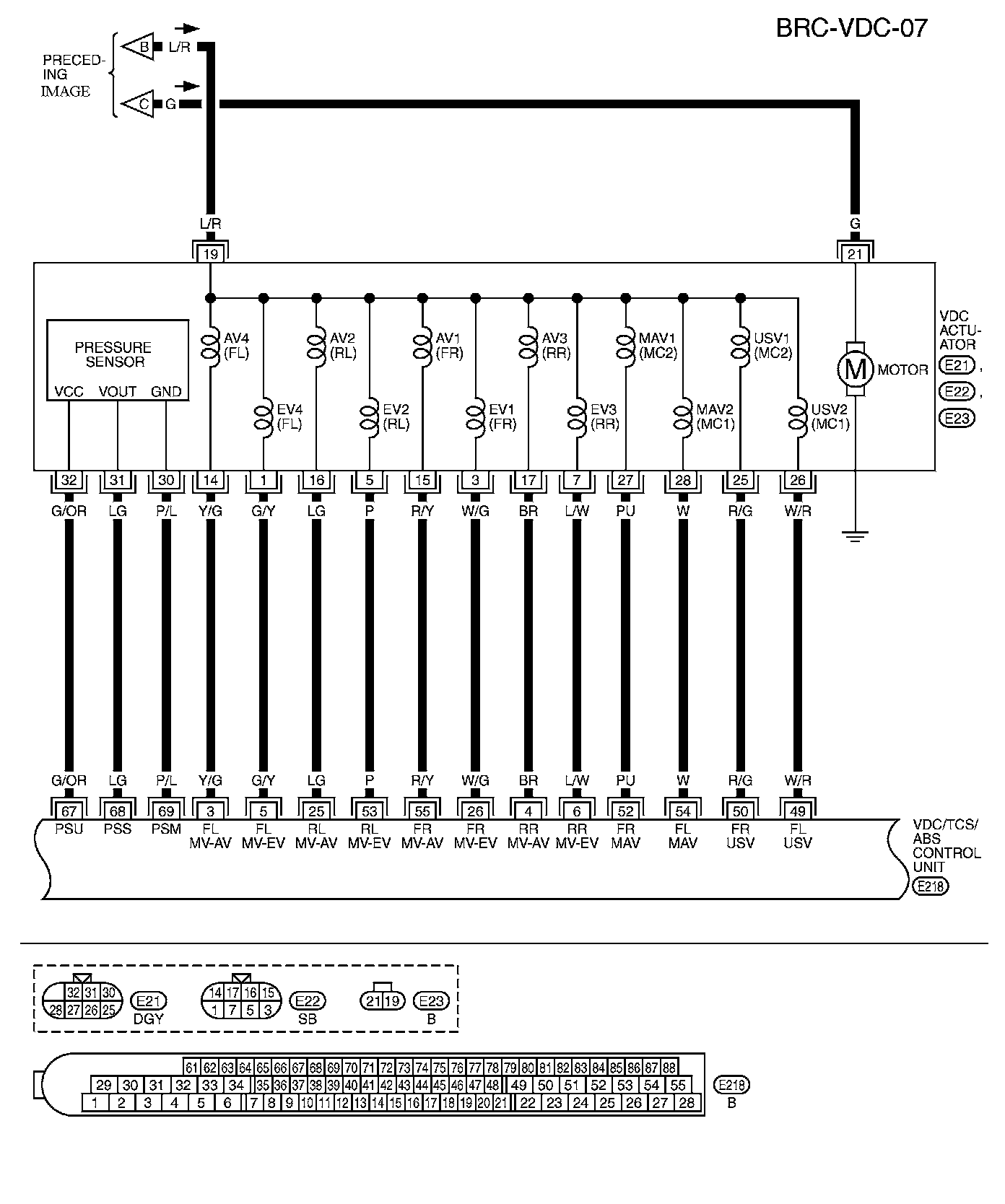

BRC-VDC-07:

BRC-VDC-08:

BRC-VDC

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name.
