SE-SEAT

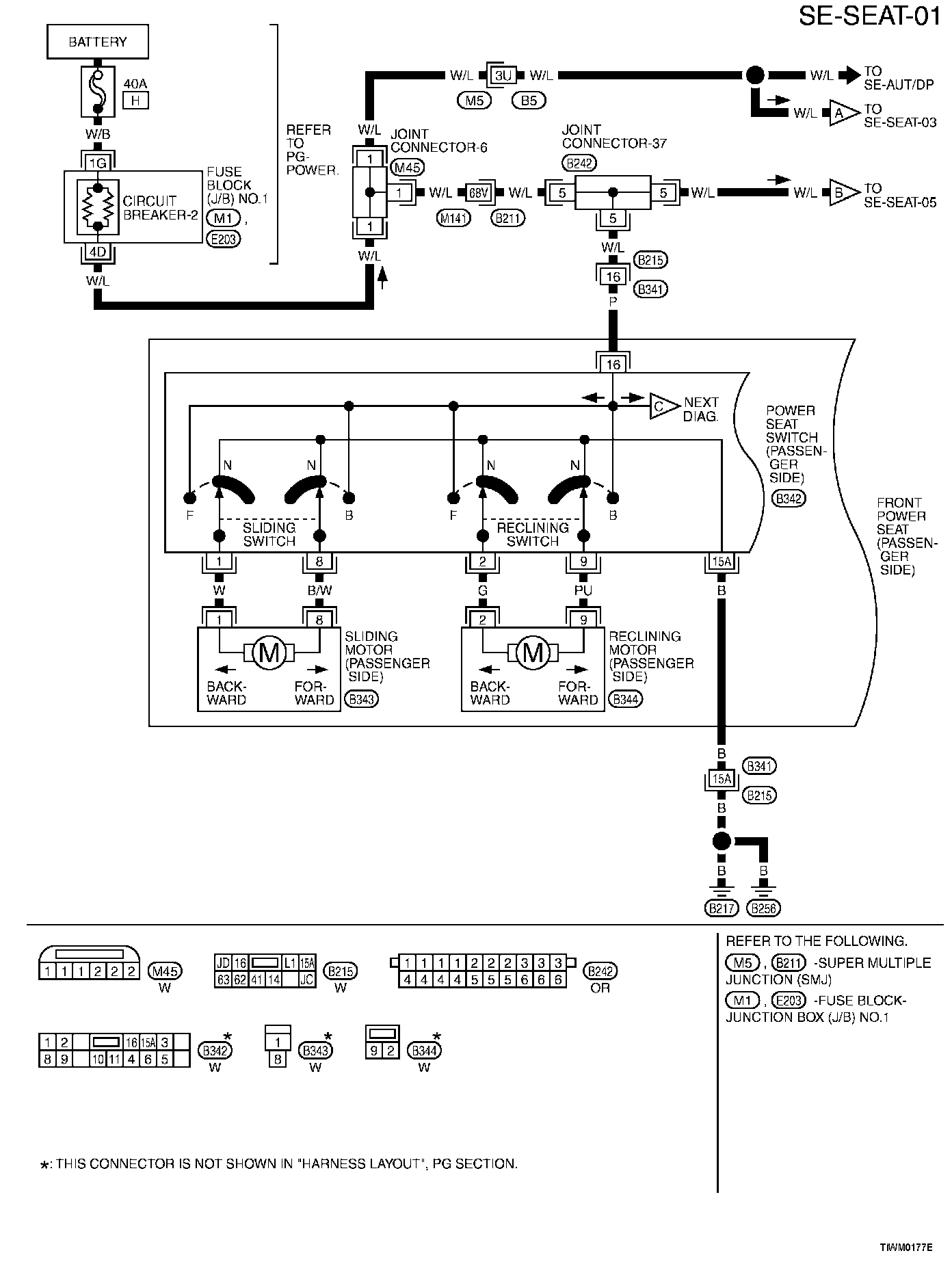

SE-SEAT-01:

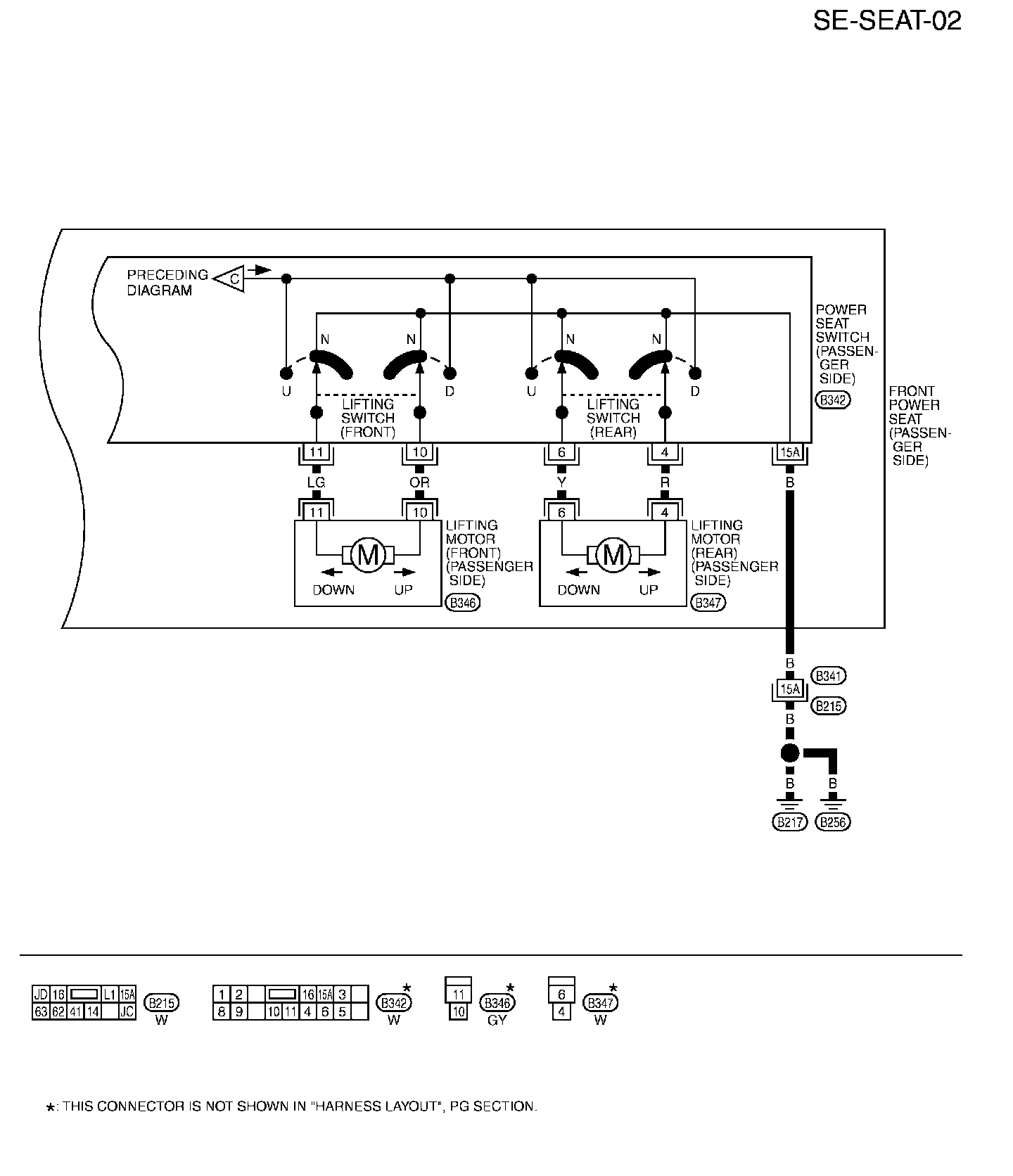

SE-SEAT-02:

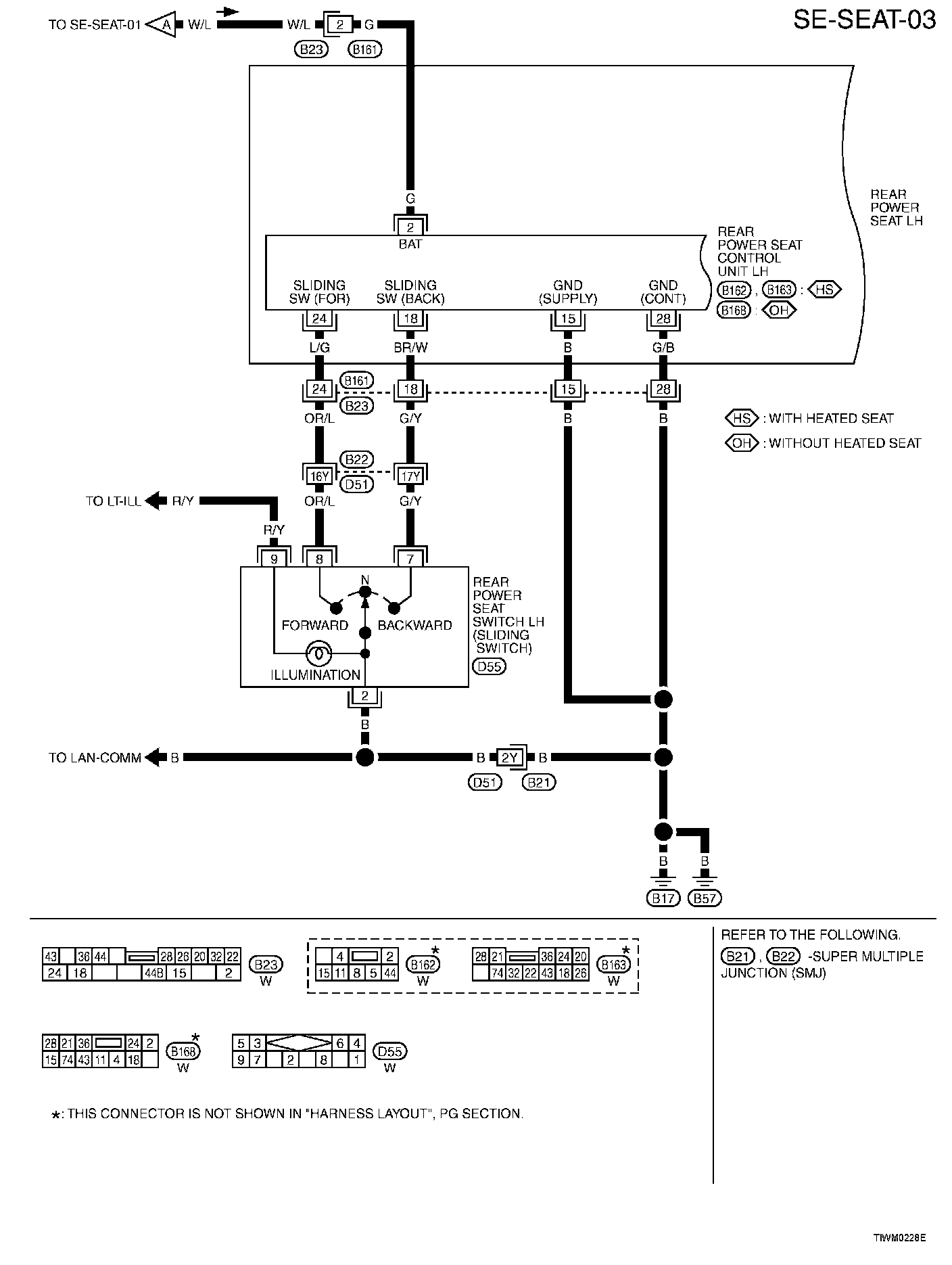

SE-SEAT-03:
SE-SEAT-04:

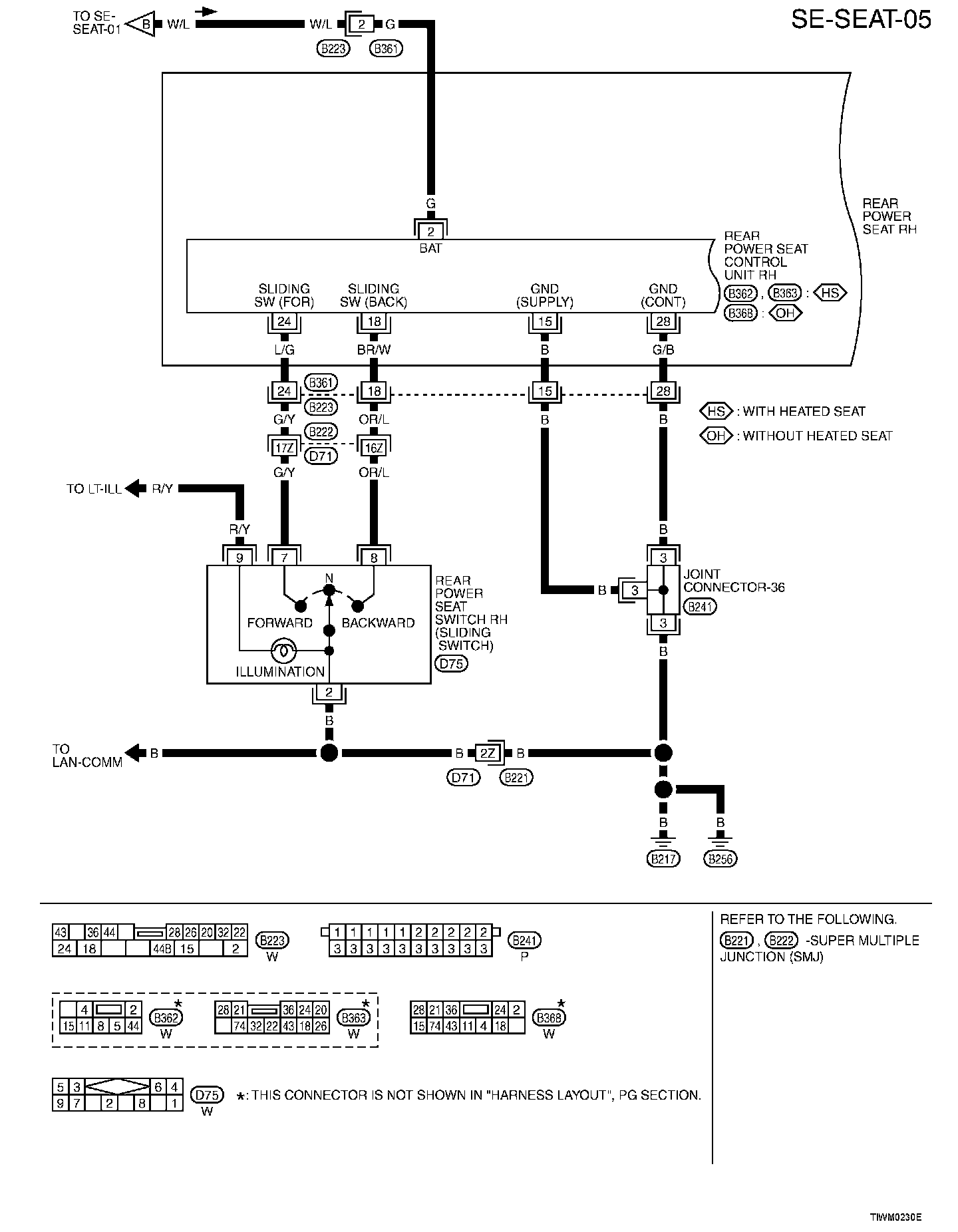

SE-SEAT-05:

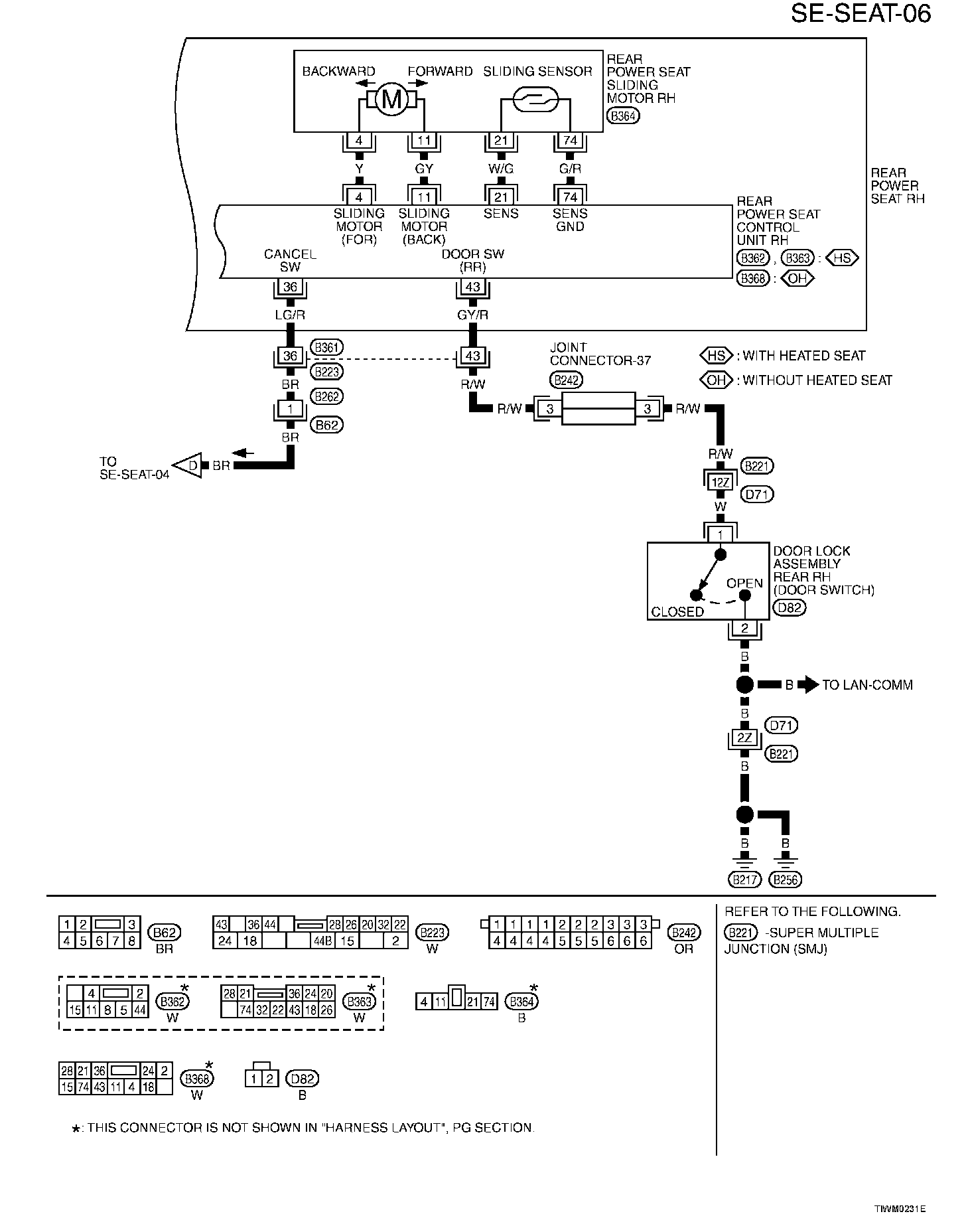

SE-SEAT-06:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
