Suspension Control Diagrams

SCS-ACTIVE-01:

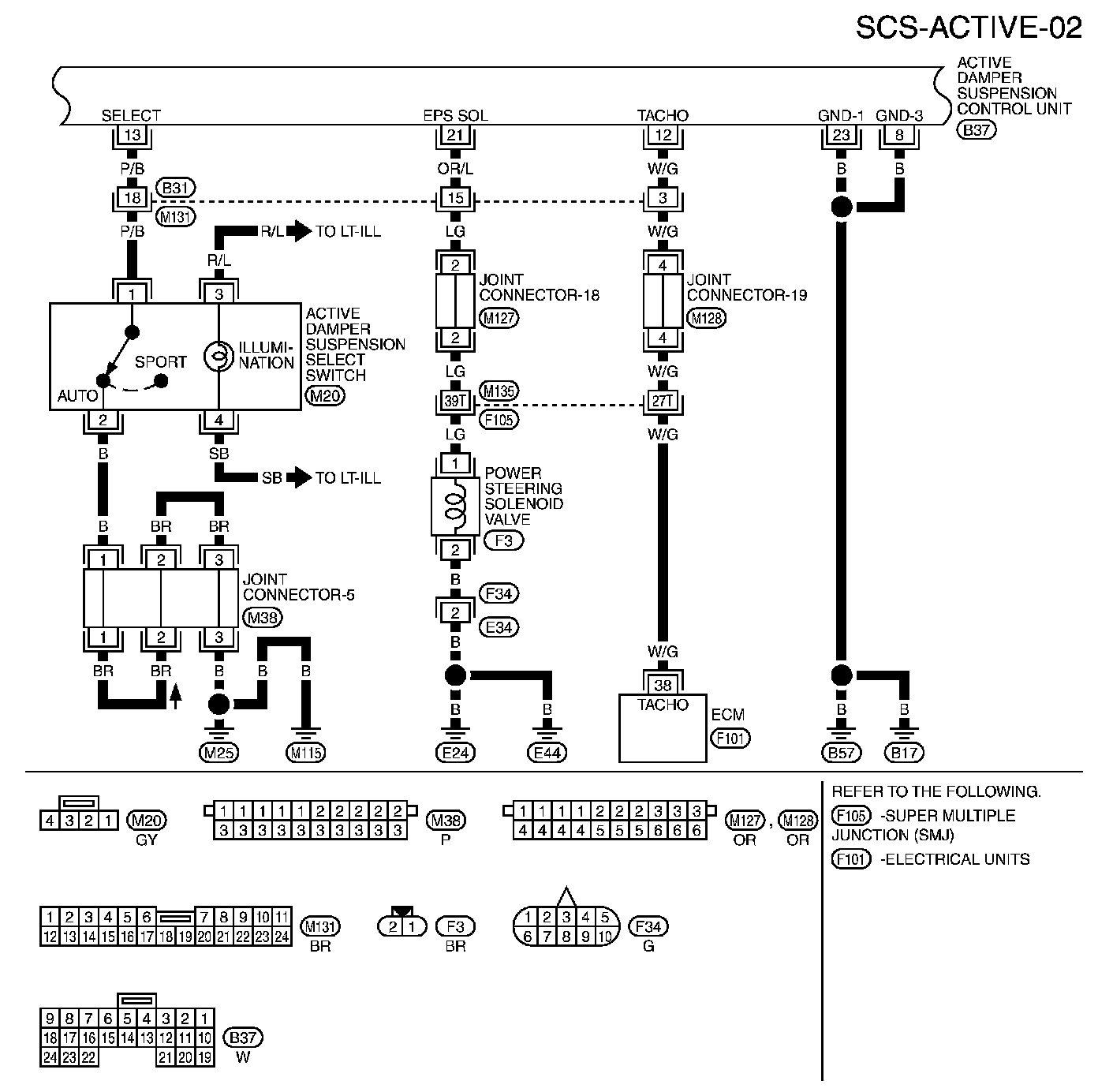

SCS-ACTIVE-02:

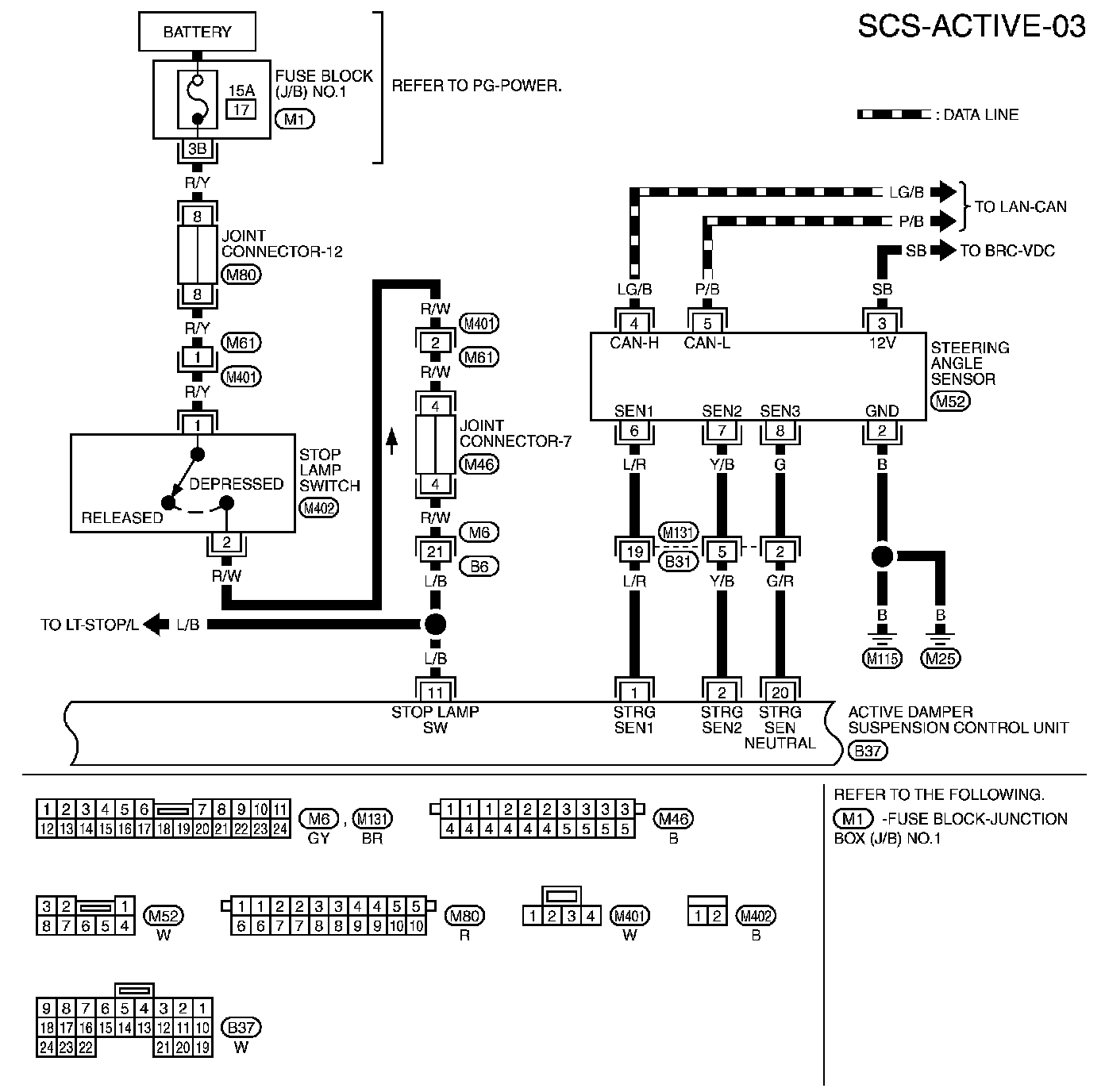

SCS-ACTIVE-03:

SCS-ACTIVE-04:

SCS-ACTIVE-05:

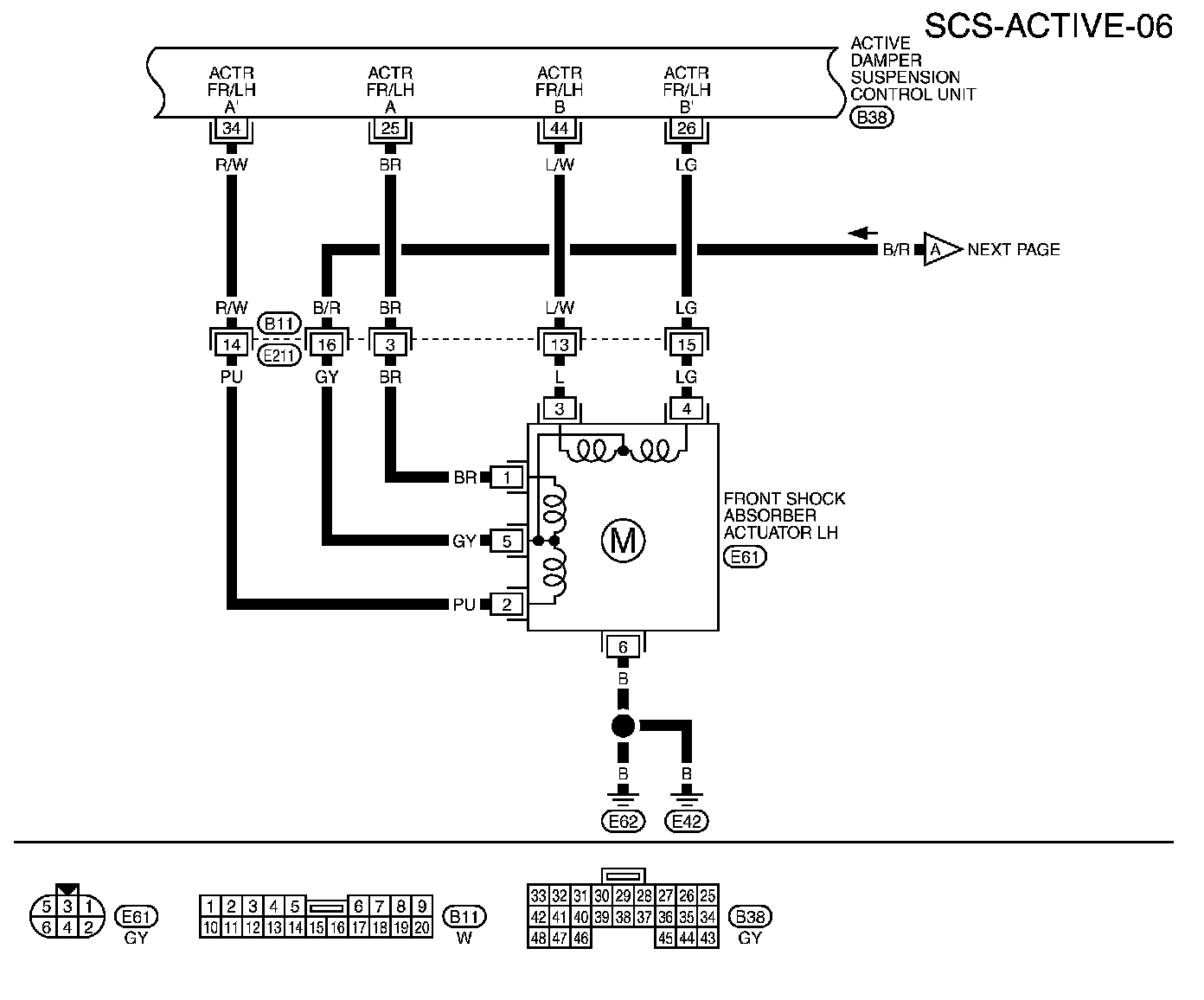

SCS-ACTIVE-06:

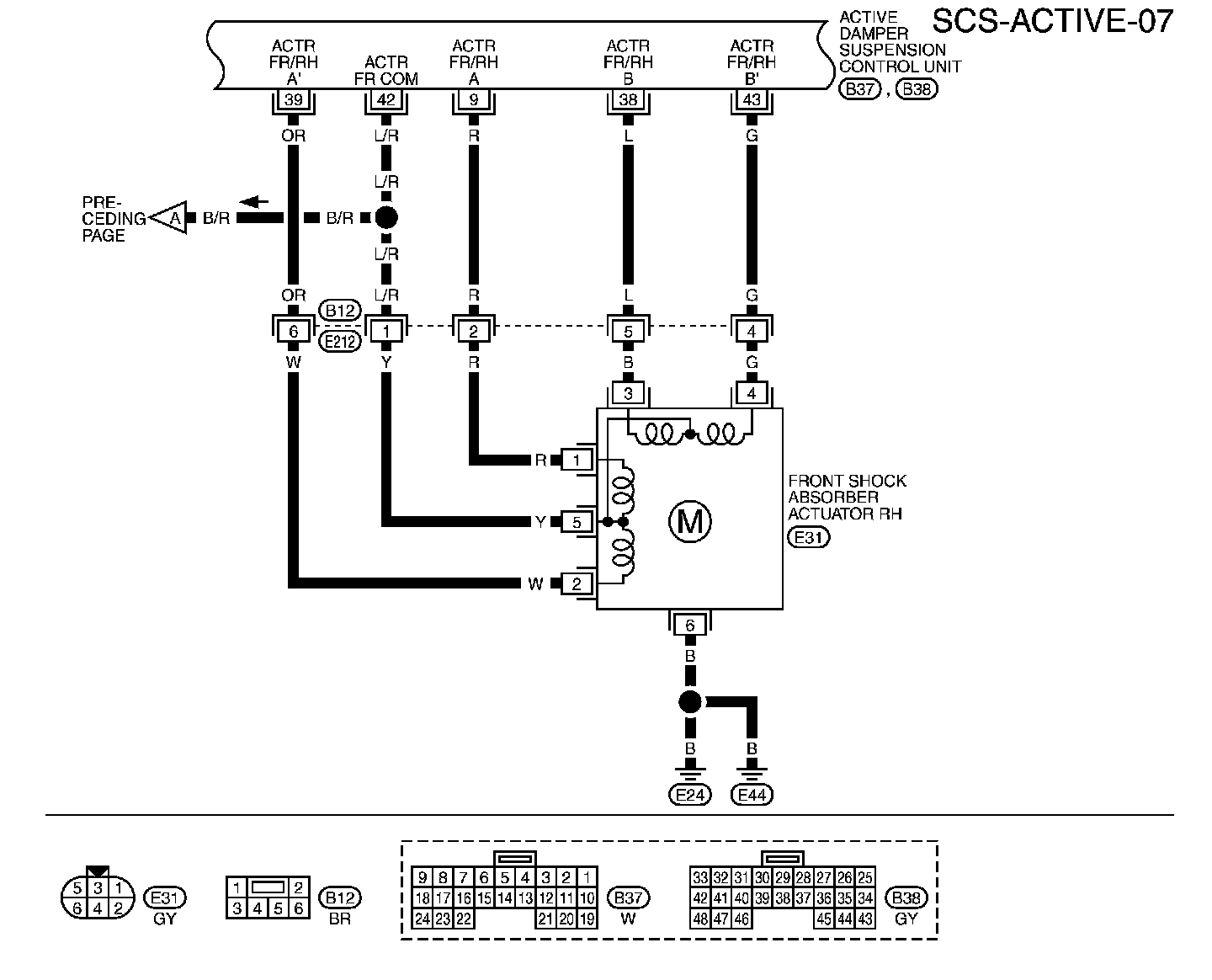

SCS-ACTIVE-07:

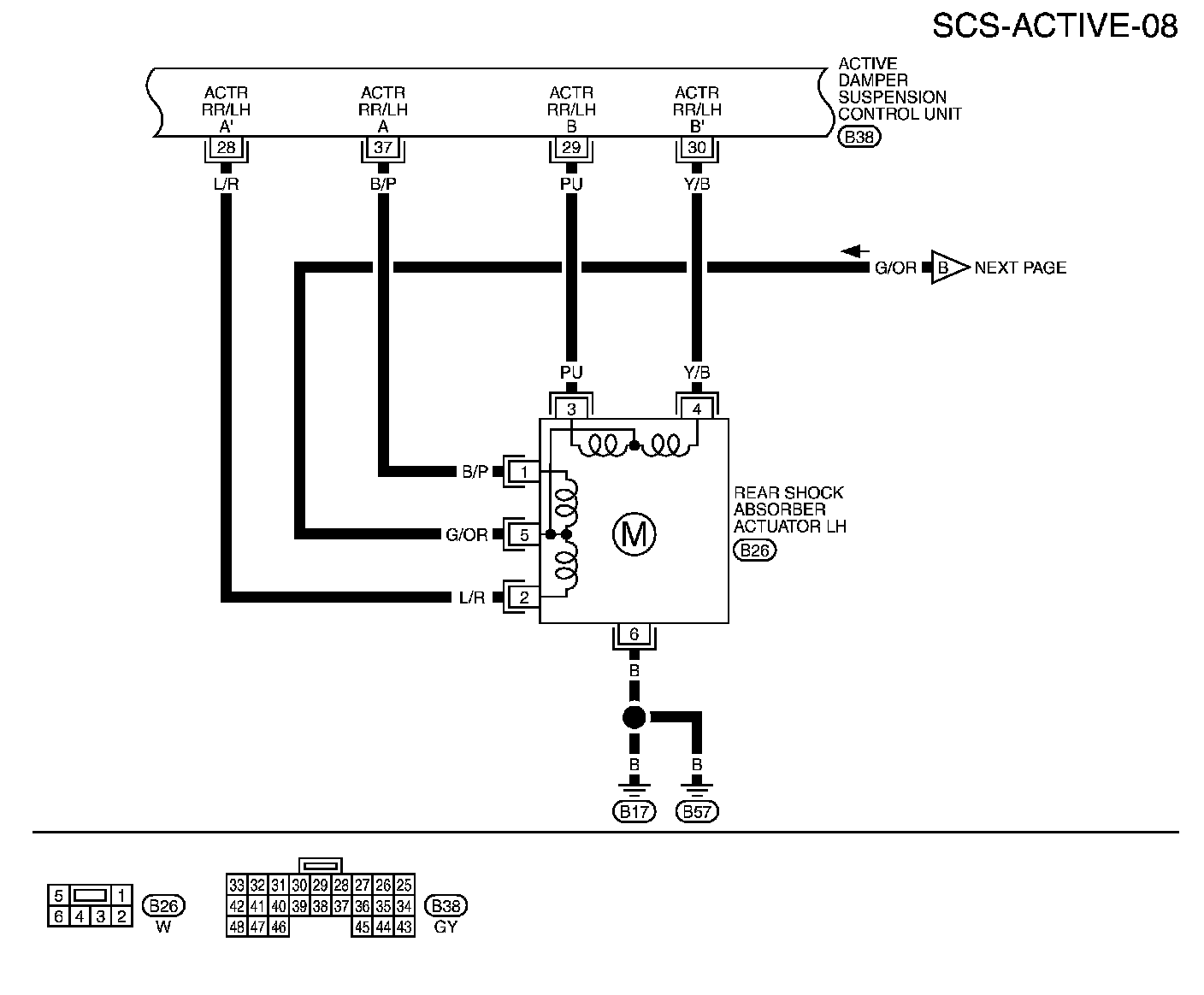

SCS-ACTIVE-08:

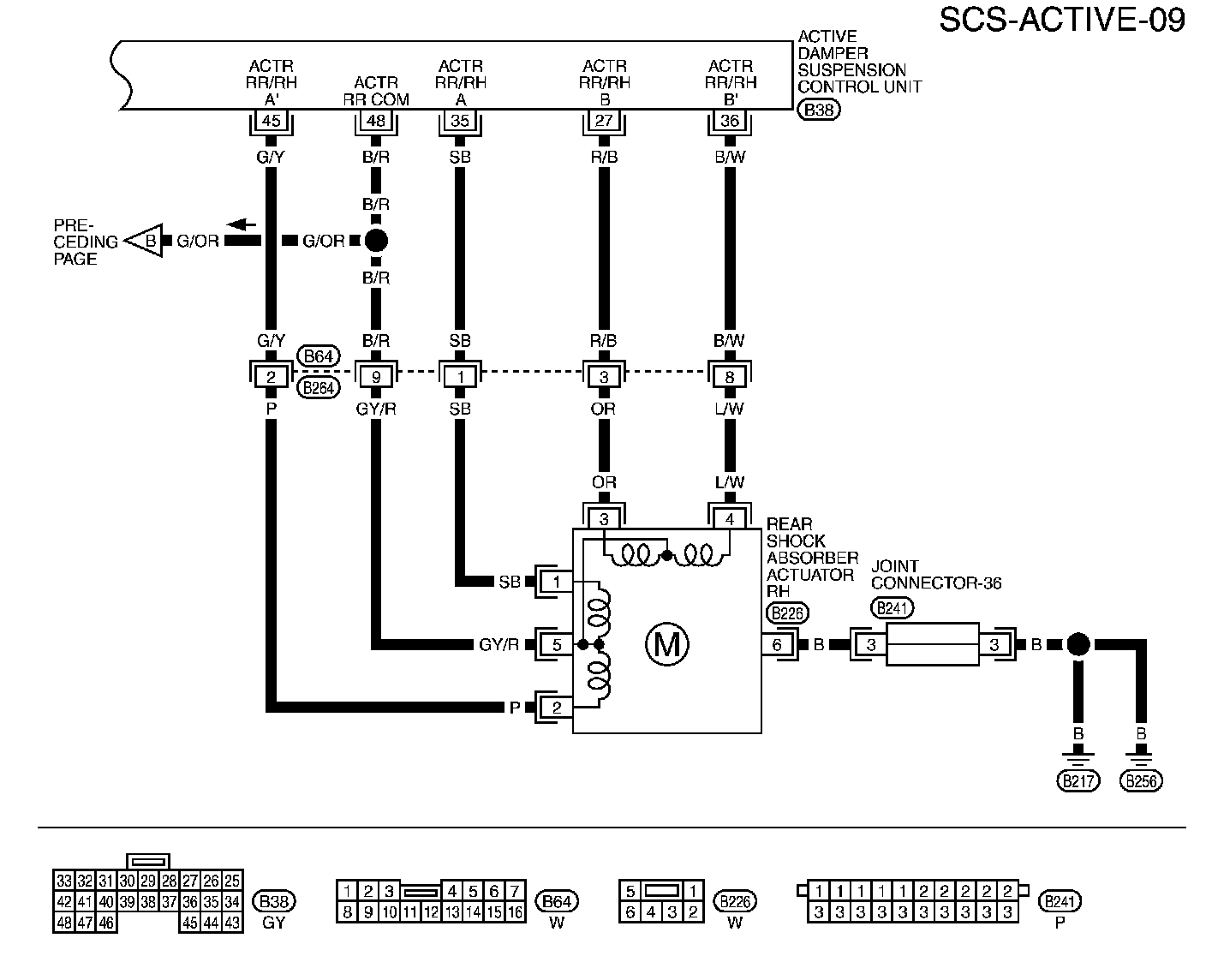

SCS-ACTIVE-09:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
